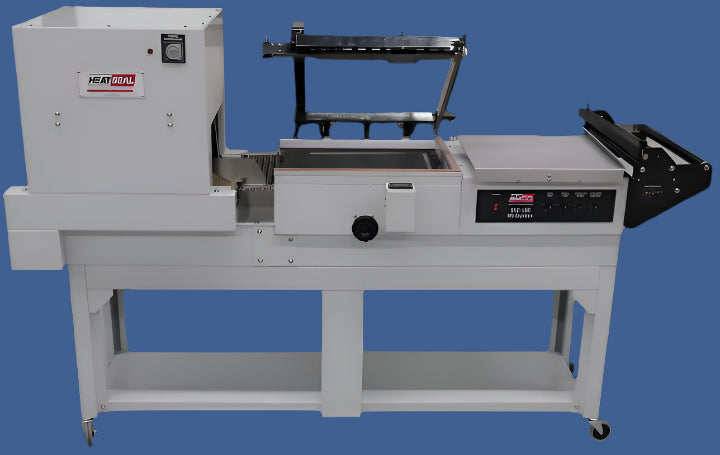

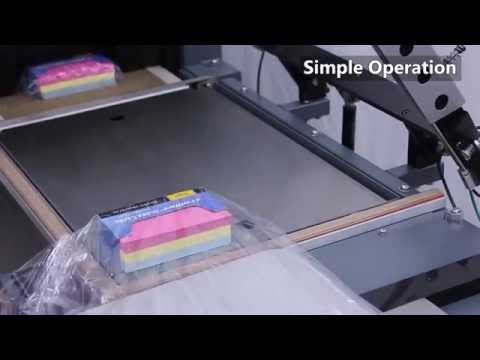

Heat Seal HSE100 Combo L-Sealer and Shrink Tunnel

The Heat Seal HSE100 is a standard duty, semi-automatic combo shrink system designed to provide efficient and reliable shrink-wrapping solutions. This entry-level combination machine is perfect for small volume shrink wrapping tasks, offering durability and ease of use.

The HSE100 sits in the MSL range of Heat Seal shrink wrapping equipment, between the chamber machines and the heavy duty combos. MSL is a Heat Seal authorized dealer, and also lists standalone shrink tunnels for shops that already run a sealer.

Key Features:

• Control Panel:

  • Express Control Panel: Simplifies operations with user-friendly controls.
  • Single Plug Power Supply: Compatible with standard 115V outlets.

• Sealing Area:

  • Impulse Wire Seal System: Ensures consistent and reliable sealing.
  • Large Seal Area: 16” W x 20” L accommodates a variety of product sizes.
  • Standard Seal Head with Film Clamps: Provides secure and precise sealing.
  • Adjustable Height Sealing Platform: Handles products of different heights.
  • Balanced Magnetic Hold Down: Maintains consistent pressure during sealing.
  • Pre-Wired Seal Conveyor Ready: Enables easy integration with a seal conveyor.

• Shrink Tunnel:

  • Independent Tunnel Temperature Control: Ensures precise shrink results.
  • Non-Stick Mesh Tunnel Belt: Smoothly moves products through the tunnel.
  • Automatic Cool Down: Extends heating element life with an automatic cooling feature.

• Additional Features:

  • Four Individually Adjustable Perforating Wheels: Customize perforations for enhanced wrapping quality.
  • Adjustable Film Cradle: Accommodates various film sizes for smooth feeding.
  • One-Year Warranty: Offers reliable support and service for peace of mind.

Specifications:

• Film Capacity: 20” Wide (50 cm)
• Sealing Area: 16” W x 20” L (41 W x 51 L cm)
• Inside Tunnel Dimensions: 20” L x 14” W x 6.5” H (51 L x 36 W x 17 H cm)
• Tunnel Conveyor Speed: 0–20 Feet per Minute (0–6 meters per minute)
• Overall Dimensions: 76.5” L x 24” W x 32”/55” H (Table Top/Leg Kit) (195 L x 61 W x 82 H cm)
• Working Height: 36” (92 cm) with Leg Kit
• Power Requirements: 115 Volts, Single Phase, 20 Amp
• Weight: 380 lbs
• Tunnel Wattage: 2,000

Available Options:

• Leg Kit: Adjustable height for the machine.
• Silicone Sealing Conveyor: Non-stick surface for improved sealing.
• Heated Hole Punch: Creates holes in the shrink wrap for ventilation.

Benefits:

• Efficiency: High-speed tunnel conveyor and a large sealing area streamline shrink wrapping tasks.
• Versatility: Adjustable height sealing platform and film cradle accommodate various products.
• Ease of Use: User-friendly control panel and simple setup enhance operation.
• Durability: Robust construction and automatic cool down ensure reliable, long-lasting performance.

Applications:

• Retail Packaging: Perfect for shrink wrapping retail display products.
• Food Packaging: Maintains freshness and presentation for food items.
• Industrial Packaging: Ideal for bundling and protecting products during transit and storage.

How to choose between a chamber sealer, an L-sealer and a combo system

MSL lists three shapes of Heat Seal shrink equipment, and the right one is decided by product size and daily volume rather than by price.

A chamber machine seals and shrinks in one enclosed step. It suits small, uniform items and low volume, and it has the smallest footprint. MSL lists the Heat Seal HSE 30 chamber machine at $4,340 and the Heat Seal HSE 50 chamber machine at $5,100.

An L-sealer seals only. Product moves to a separate tunnel to shrink. It handles a wider range of sizes than a chamber and it is the right start if a tunnel is already on the floor. MSL lists the Heat Seal HS1620 L-sealer at $4,935 and the Heat Seal HDX1721 heavy duty L-sealer at $11,200.

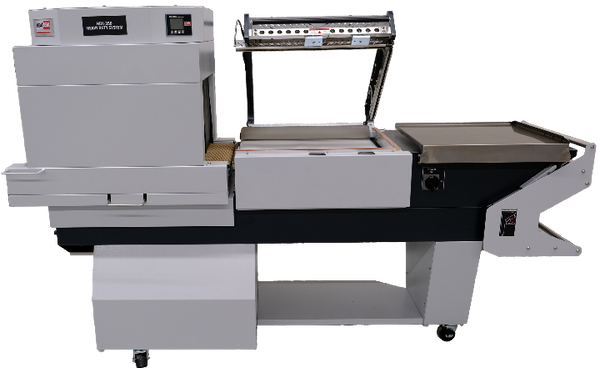

A combo puts the L-sealer and the tunnel on one frame with a pre-wired conveyor between them. One operator runs the whole cycle. The HSE100 on this page is the entry combo at $8,980, with a 16 x 20 in seal area and a 20 x 14 x 6.5 in tunnel. Above it MSL lists the HDX250 at $16,830, the HDX350 at $20,910 and the HDX250A at $35,289.

Power is the practical constraint on the HSE100. It runs on a standard 115V single phase 20 amp circuit with a 2,000 watt tunnel, so it does not need a dedicated 220V drop. Every machine above it in the range does.

Why buy the HSE100 from Mid-State Litho

Mid-State Litho has sold and serviced print finishing equipment from Michigan since 1984, and shrink packaging has been part of that line for most of it. We are an authorized Heat Seal dealer, so the HSE100 arrives with a factory warranty and a parts channel rather than an auction listing and a phone number that stops answering.

The practical difference on a $8,980 machine is what happens after it lands. Our technicians are factory trained on the Heat Seal line, we cover Michigan and the Great Lakes region, and we set the machine up and train the operators instead of leaving a crate on the dock. Financing and leasing is available if the purchase is easier to approve as a monthly number, and equipment service and support continues after the install.

The HSE100 ships LTL from Heat Seal at 380 lb. Call for a freight quote to your dock, or submit a request and we will send one back with the delivery window.

Heat Seal HSE100 questions

Does the HSE100 need a special electrical circuit?

No. It runs on a standard 115V single phase 20 amp circuit, and the tunnel draws 2,000 watts. Larger Heat Seal combos need a 220V drop.

Is the leg kit required?

No. The HSE100 is a tabletop machine at 32 in high. The optional leg kit raises it to 55 in overall and puts the working height at 36 in, which matches most bindery benches.

What film size does it run?

Film capacity is 20 in wide. The seal area is 16 in by 20 in, and the tunnel opening is 20 in long by 14 in wide by 6.5 in high. The tunnel opening is the tighter constraint, so measure product height against the 6.5 in clearance rather than against the seal bar.

Can I add a conveyor later?

Yes. The seal head ships pre-wired for a seal conveyor, and the silicone sealing conveyor, leg kit and heated hole punch are the three factory options.

How does it ship and who installs it?

It ships LTL freight at 380 lb, drop-shipped from Heat Seal, quoted at 3 to 5 business days. MSL handles the freight claim, the install and operator training in Michigan and the Great Lakes region.
