Horizon BQ-P65 | Table-Top Perfect Binder

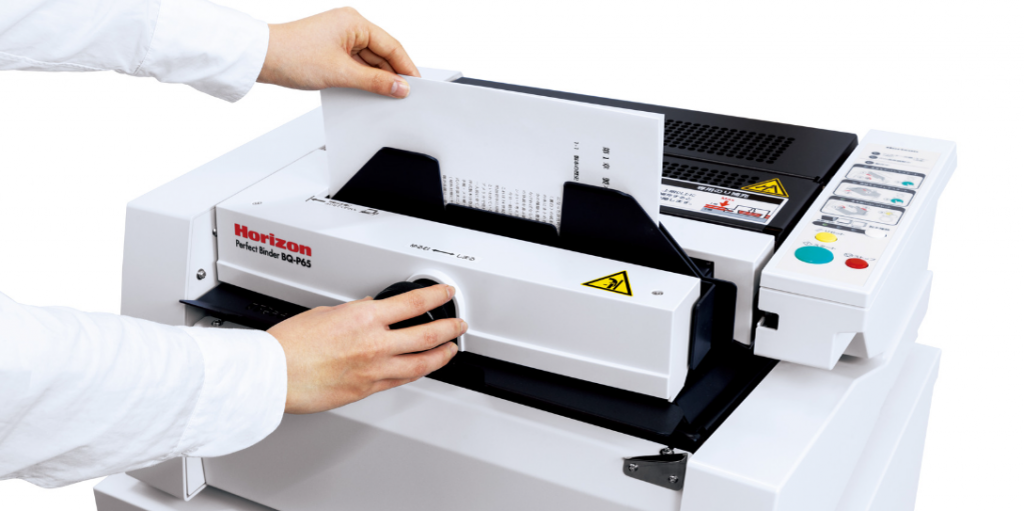

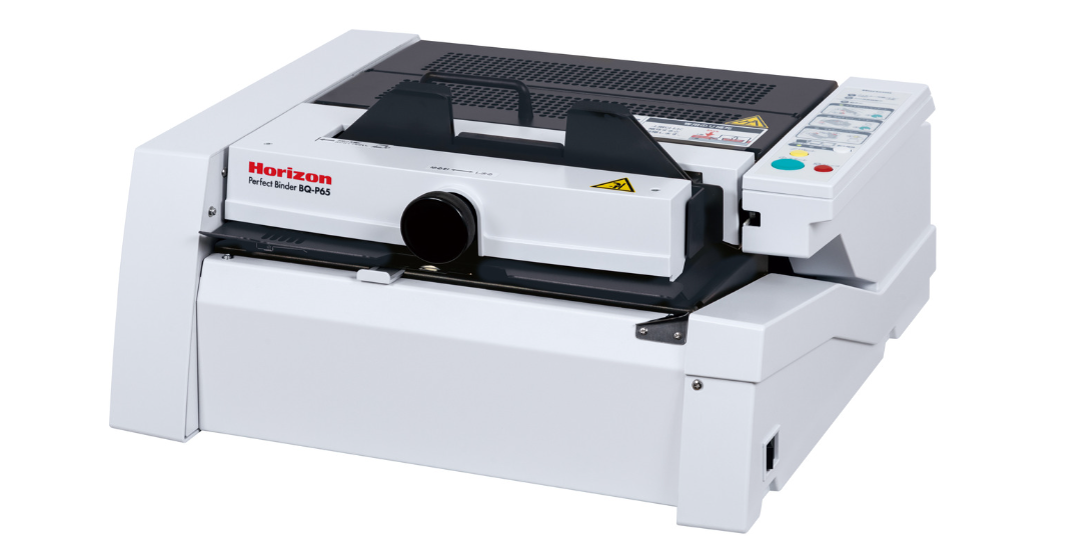

The Horizon BQ-P65 is an office-friendly, fully automatic table-top binder designed for in-house production of manuals, booklets, reports, and padded documents. With support for cover binding, tape binding, and pad binding, the BQ-P65 delivers clean, professional results with minimal operator training. An integrated fume extractor, simple control panel, and adjustable glue system make this one of the most versatile compact binders available.
Key Features

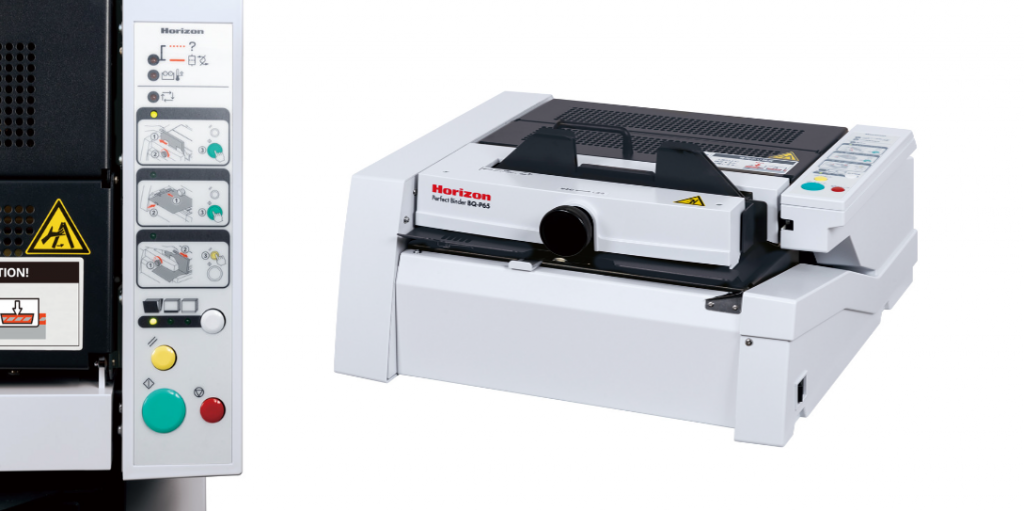

🔹 Simple operation panel with guided navigation for easy operation.

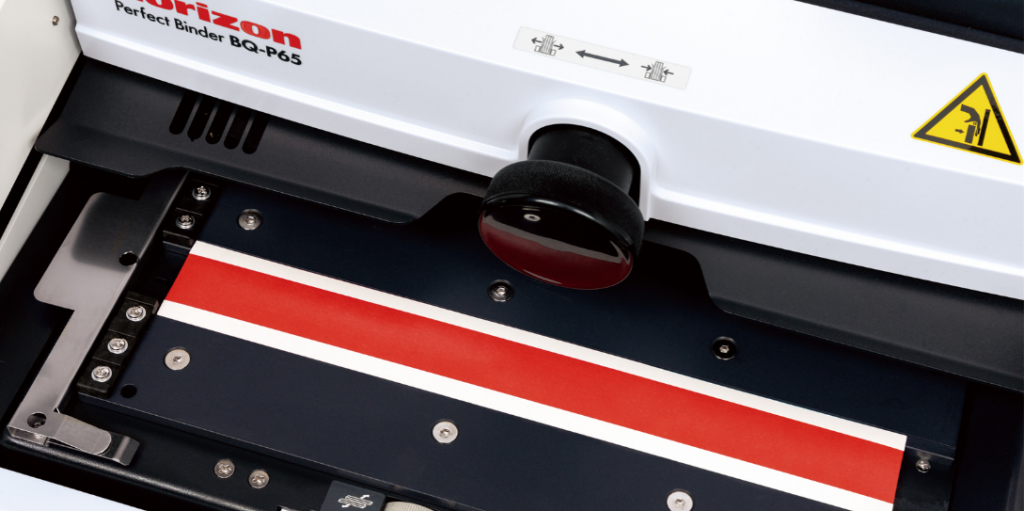

🔹 Three binding modes: Cover Binding, Tape Binding, and Pad Binding.

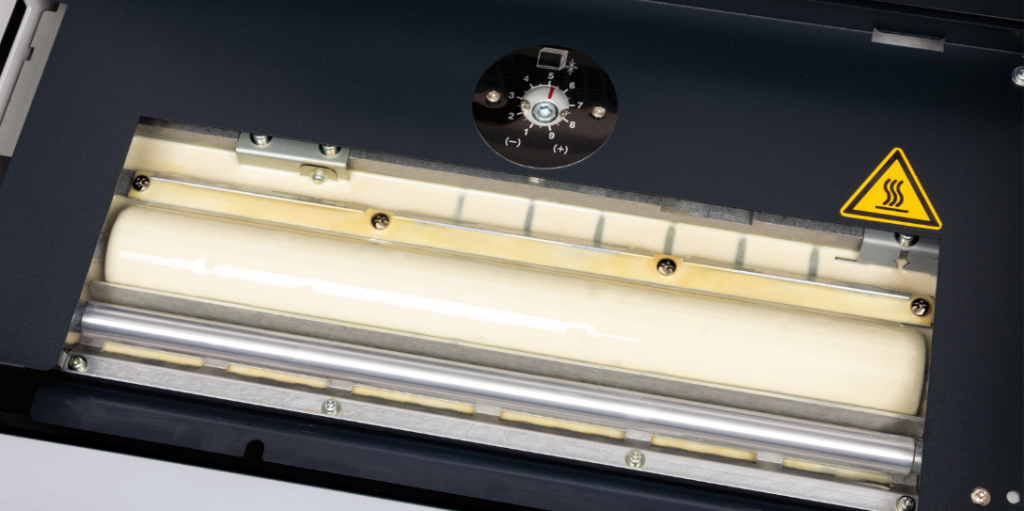

🔹 High-quality spine gluing with thin-film application for cleaner, stronger books.
🔹 Integrated odor-eliminating fume extractor ideal for office or small-shop environments.

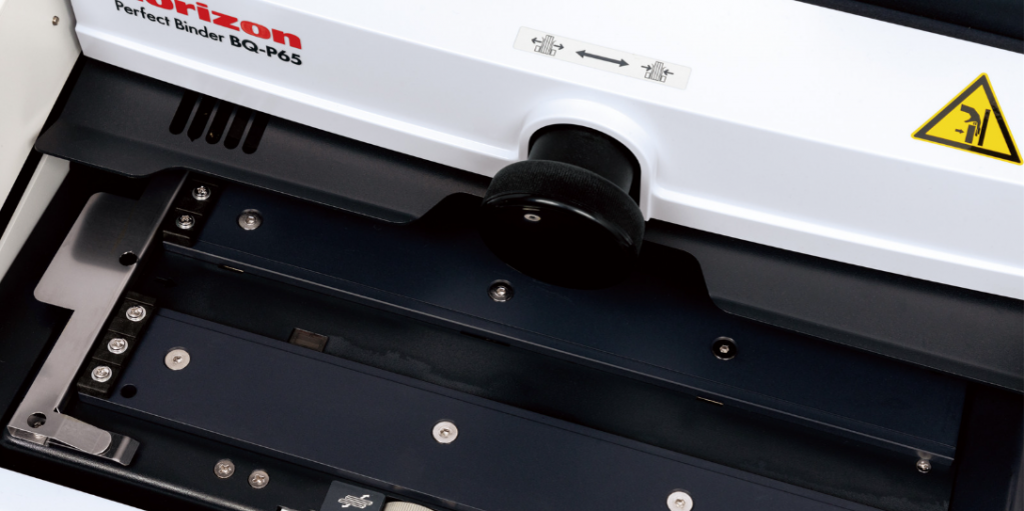

🔹 Automatic clamping and nipping adjustments based on binding style.
🔹 Energy-saving mode and low-temperature glue reduce operating costs.
Specifications
| Binding Types | Cover Binding / Tape Binding / Pad Binding |
| Glue Type | Hot Melt |
| Book Block Size | Max 315 × 210 mm (12.4” × 8.2”) Min 210 × 148 mm (8.3” × 5.9”) |
| Book Block Thickness | Up to 25 mm (0.98”) |
| Cover Size | Max 315 × 445 mm (12.4” × 17.5”) Min 210 × 297 mm (8.27” × 11.70”) |
| Cover Weight | 82–210 gsm (22–60 lb) |
| Glue Temperature | 130–150°C (266–302°F) |
| Cycle Speed | 22 seconds per cycle (Cover Binding) |
| Voltage / Frequency | Single-phase 115 V or 220–240 V (50/60 Hz) |
| Rated Current | 115 V: 10 A / 220–240 V: 5 A |
| Dimensions | W600 × D615 × H270 mm (23.7” × 24.3” × 10.7”) |
| Machine Weight | 48 kg (106 lbs.) |
Applications
📘 Manuals, handbooks, and reports
📚 Short-run books and proposals
🗂️ Office and corporate documents
📝 Notepads and padding jobs
🎨 Custom covers, branded booklets, and presentations
Available Options
📌 HM-302 Glue
📌 Odor-Eliminating Filter
📌 Air Filter
📌 Printable Spine Tape
📌 Colored Covers (A4/B5 – multiple colors)
Benefits
• Professional, bookstore-quality results in a compact footprint.
• Fast 22-second binding cycles for efficient short-run workflows.
• Low-odor operation suitable for office environments.
• Minimal training required — ideal for in-house document production.
• Highly flexible workflows thanks to three different binding modes.
