Standard Horizon

iCE Folder AFV-56S Series

iCE Folder AFV-56S Series

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

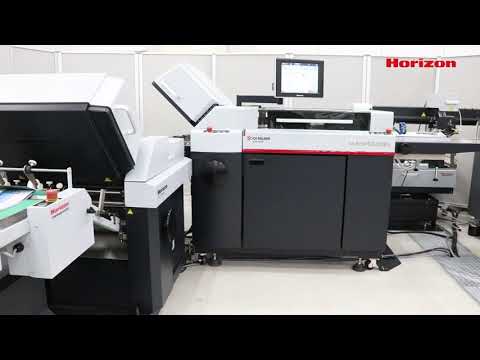

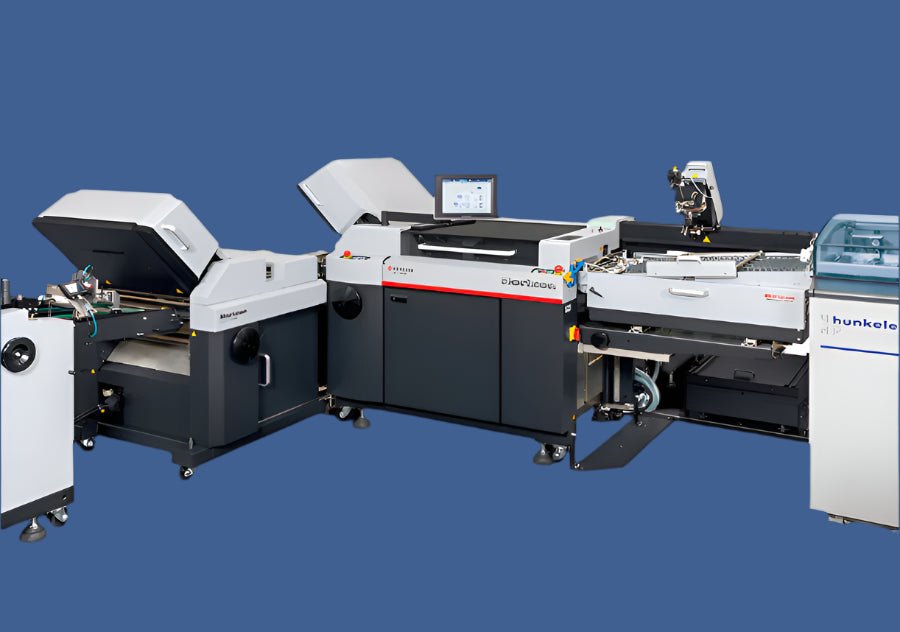

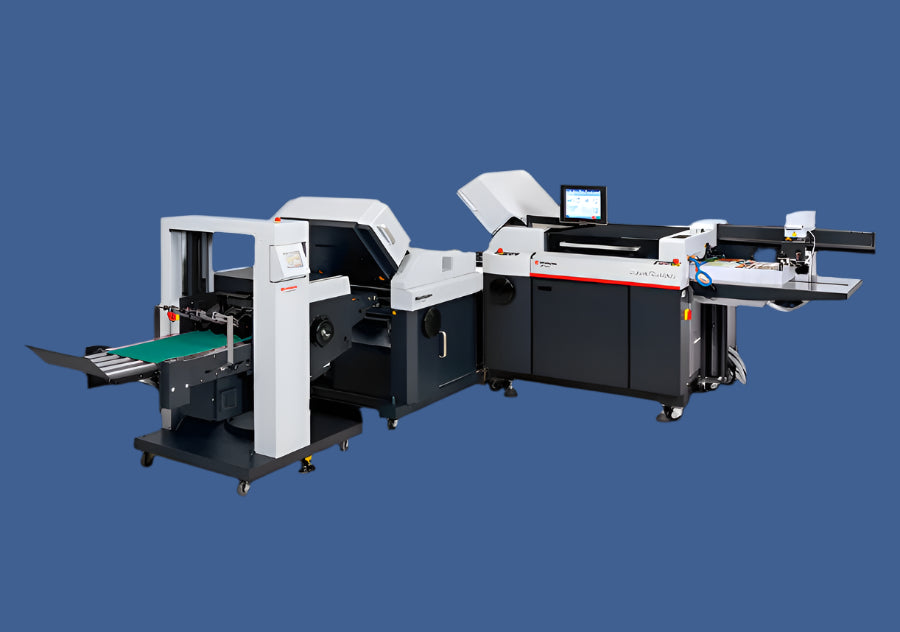

The Horizon AFV-56S / TV-56S Series Cross Folder is a next-generation folding machine designed for high productivity and application flexibility. With its icon-based touchscreen, the machine offers quick and easy setup without manual adjustments. The advanced automation technology significantly reduces setup time, while the high-speed production is achieved with belt speeds of up to 270 meters per minute. The machine's flexible configurations and a variety of options allow for a wide range of applications. The LED lights indicate the operational status, and the system can be enhanced with Horizon's iCE LiNK post-press management system for a fully connected workflow.

Key Features:

  • Easy Setup: Icon-based touchscreen for quick and easy setup.
  • High Productivity: Advanced automation technology and high-speed production.
  • Application Flexibility: Flexible configurations and a variety of fold patterns.
  • Status Recognition: LED lights indicate operational status.
  • Connected Workflow: Enhanced with Horizon's iCE LiNK post-press management system.
AFV-56S Fold Types

Specifications

 Model AFV-56S / TV-56S Series
Machine Configuration First Station AFV-566SF, 566SA: 6 Buckles, AFV-564SF, 564SA: 4 Buckles
Second Station TV-566SF, 566SA: 6 Buckles, TV-564SF, 564SA: 4 Buckles
Sheet Size (Width x Length) AFV-56S: Max. 560 × 900 mm or 22.04" x 35.43"
*1,100 mm or 43.310" with optional long table
Min. 128 × 148 mm or 5.04" x 5.83"
*105 mm or 4.14" with optional small size kit
TV-56S: Max. 560 × 560 mm or 22.04" x 22.04"
Min. 50 × 105 mm or 1.97" x 4.14"
*Even if the sheet size is within the specifi cation, it cannot be transported from the fi rst station to the second station depending on the condition such as sheet type, fold pattern, and grain direction of sheet.
Sheet Weight Range

Uncoated Paper 40 to 250 gsm

Coated Paper 50 to 232 gsm

Belt Speed 30 to 270 meters per minute or 98 to 885 feet per minute
Production Speed Suction Head 40,000 cycles per hour
