Intec ColorFlare CF400
Intec ColorFlare CF400
Item Number:
CF400

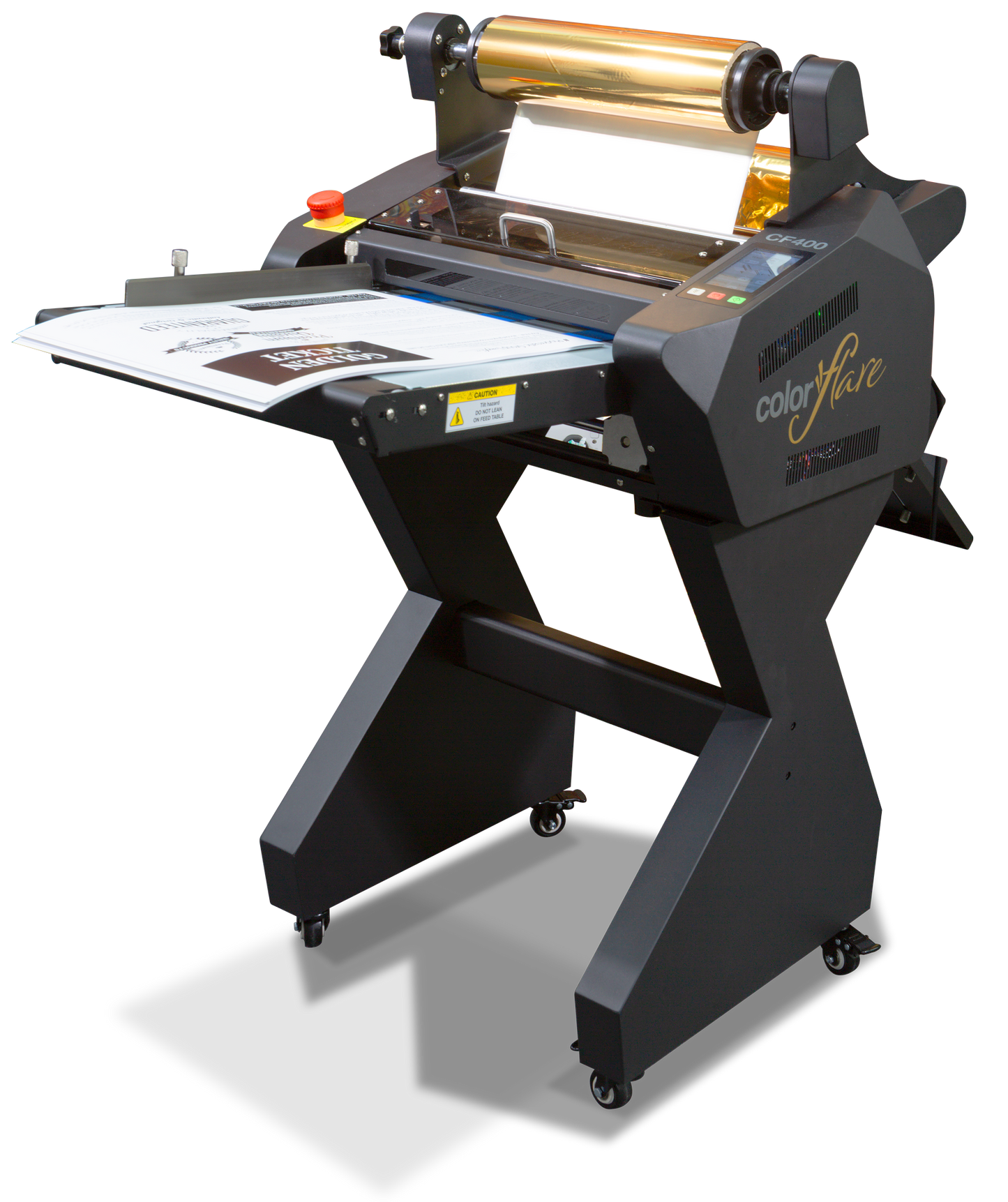

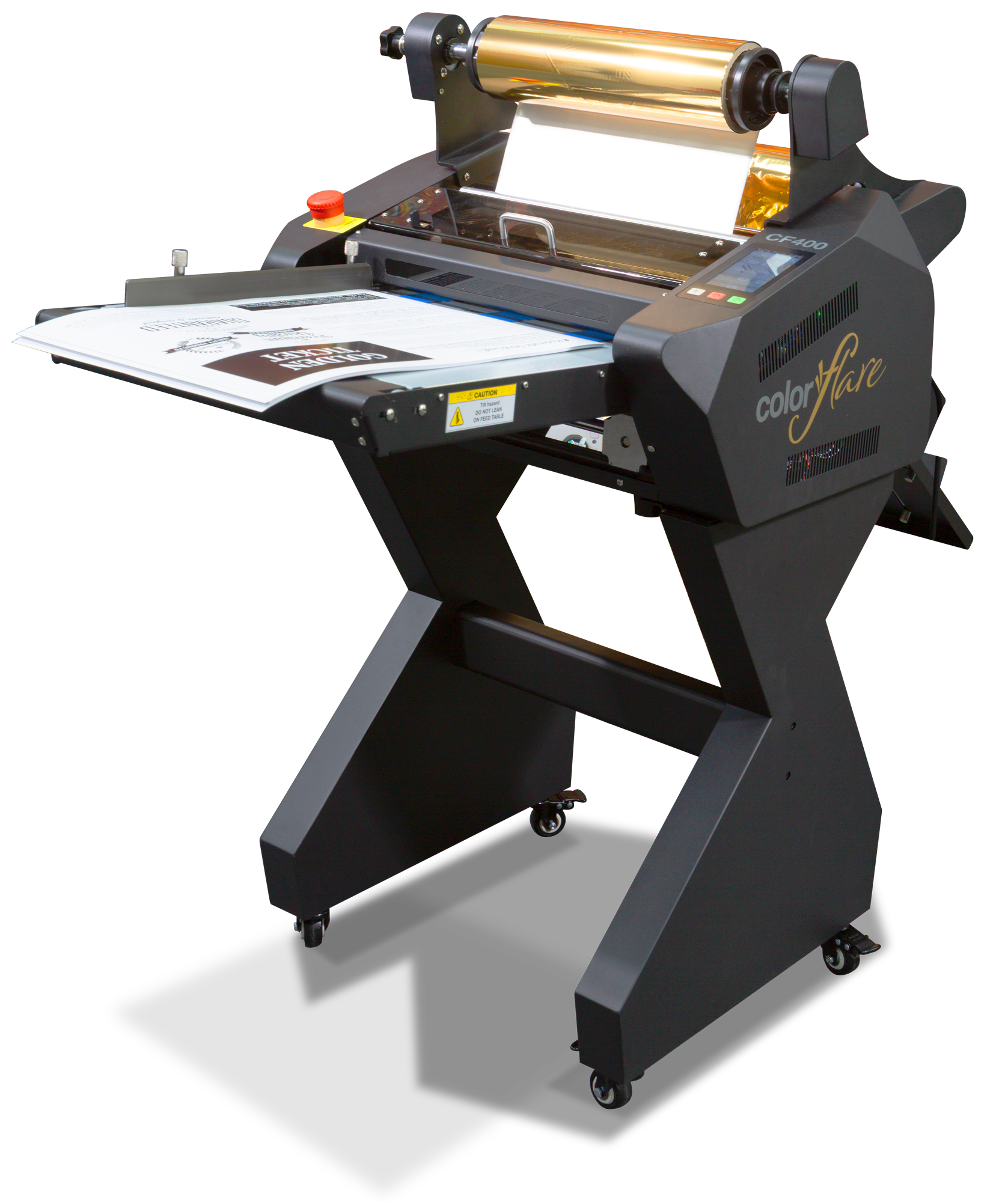

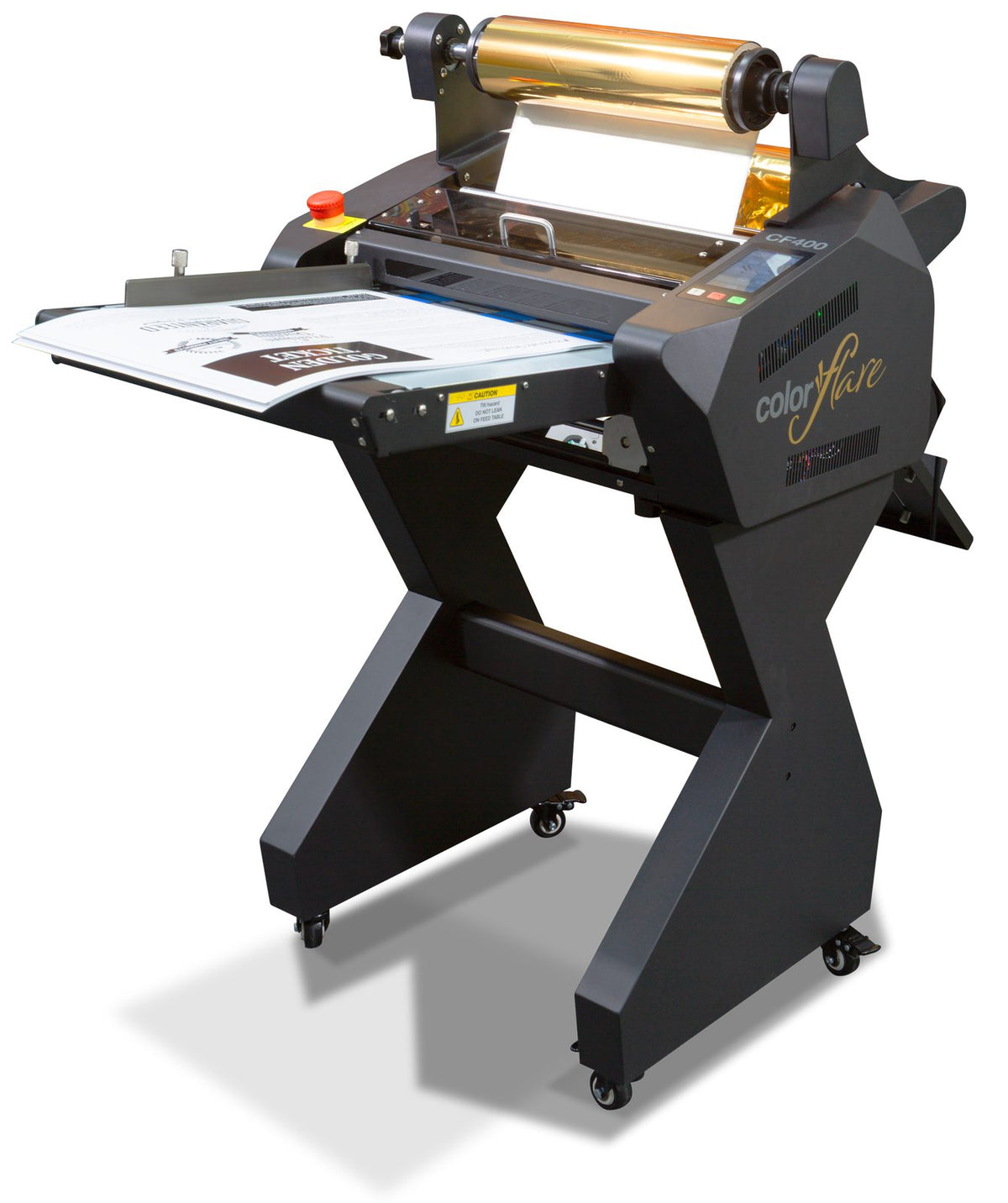

Intec ColorFlare CF400 — Desktop Laminator & Digital Foiler
Compact dual-purpose laminator and foiling system that brings mirror-finish metallic, holographic, and protective laminate effects in-house for short-run digital work.
The ColorFlare CF400 elevates digitally printed output with on-demand lamination and decorative foiling—no dies required. With adjustable heat, pressure, and speed, it handles popular sheet sizes and weights while delivering premium, flat results thanks to an integrated de-curl system and air-blade cooling. Ideal for short runs, prototypes, and value-add finishing.
Key Features
- Dual-roll system for lamination and foil/holographic flaring with rewind spool for clean recovery
- Powerful, electronic pressure control (six levels; 120–240 kg) for ultra-smooth finishes
- Adjustable heat (top/bottom up to 130 °C) and speed (0.5–6 m/min) for process control
- De-curl bar for flat sheets; air-blade cooling improves adhesion and surface quality
- Media-out sensor auto-stops to prevent waste; semi-auto belt feed with catch tray
- Touchscreen interface for quick setup, recipes, and repeatable results
Specifications
| Specification | Details |
|---|---|
| Max / Min sheet size | 330 mm × 1200 mm max; 110 mm × 150 mm min |
| Media weight range | 150–350 gsm |
| Process speed | 0.5–6 m/min |
| Heated rollers | Infrared heating; top/bottom max 130 °C; silicone rubber rollers |
| Pressure system | Electronic; 6 levels; 120–240 kg |
| Film/foil thickness | 17–48 μm |
| Core & roll width | 1″ (25.4 mm) and 3″ (76 mm) cores; max roll width 340 mm |
| Power | 220–240 V, 50/60 Hz, 1.5 kW |
| Machine dimensions (W×D×H) | 630 × 895 × 480 mm (approx. 1200 mm D with exit tray) |
| Stand (optional) | 535 × 540 × 675 mm |
| Weight | Machine 50 kg; stand 14 kg |
Applications
- Invitations, greeting cards, wedding suites
- Business cards, menus, covers, certificates
- Short-run packaging, prototype cartons, labels
- Event collateral, foil-accented flyers and posters
- Brand premiumization with holographic effects
Available Options
- Matching mobile stand
- Digital laminates: gloss, matte, soft/silk touch ( corona-treated for over-printing )
- Foils: gold, silver, rose gold, copper, red, green, blue, black, white, clear gloss
- Holographic films: sparkle, crystal, carbon fiber, and more
Benefits
- In-house control of lamination and decorative foiling with a single, compact device
- No custom dies required for digital foiling; fast turnaround for short runs
- Clean, flat output via de-curl and air-blade cooling for reliable adhesion
- Supports 1″ and 3″ cores; quick changeovers for laminates, foils, and holographics
- Auto media sensing prevents waste when the feed runs out
- Simple touchscreen operation yields consistent, repeatable results
Note: Performance and settings vary by stock, environmental conditions, and print engine.
