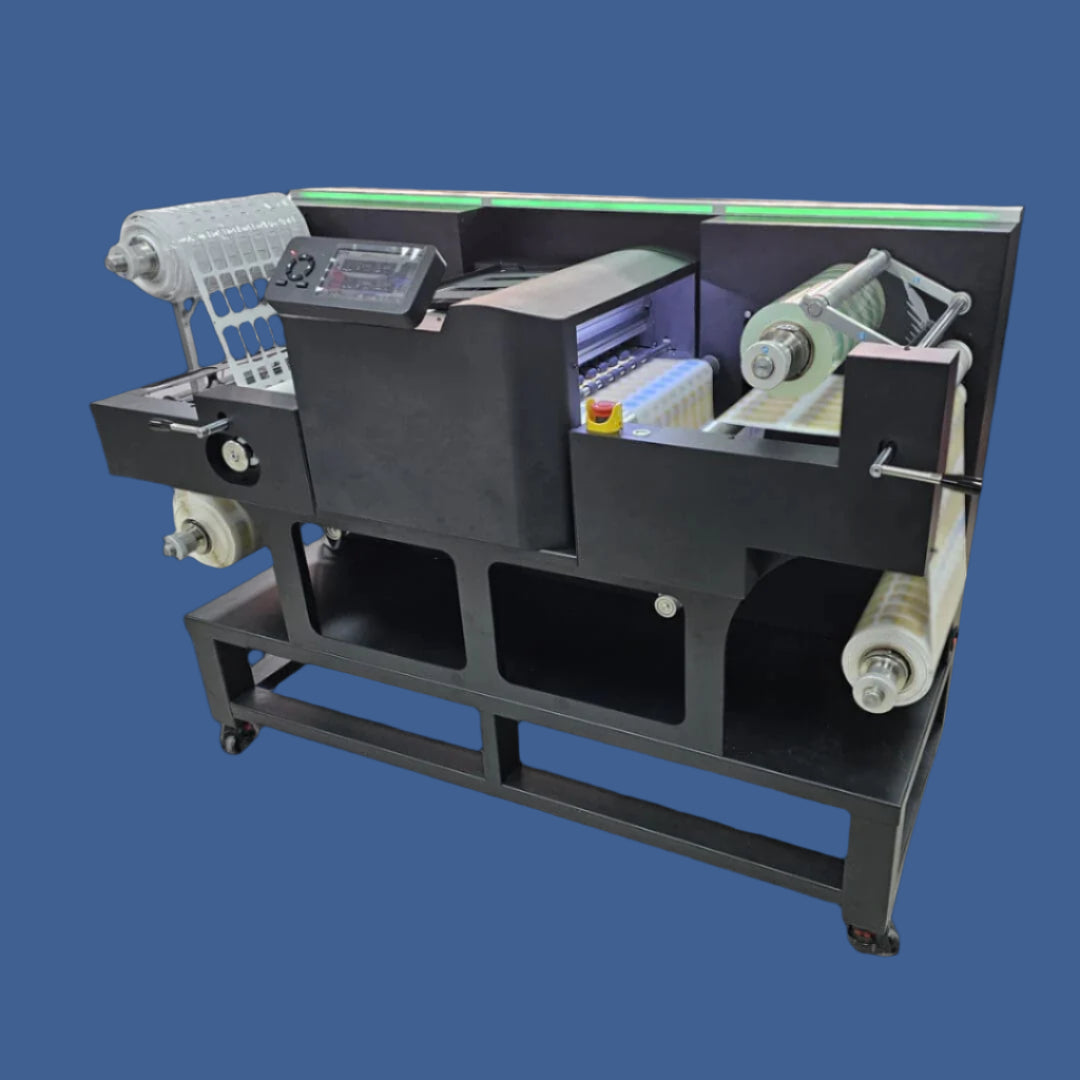

Intec LCF700 Pro Roll-to-Roll Label Cutter & Finisher
Intec LCF700 Pro Roll-to-Roll Label Cutter & Finisher
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
The Intec LCF700 Pro is a state-of-the-art roll-to-roll label cutter and finisher, engineered for unattended, high-speed label production. Designed for both roll and sheet-fed label applications, this advanced system combines cutting, laminating, slitting, and waste matrix removal into a seamless workflow, making it an ideal solution for digital label production.
Key Features
🔷 Fully Automated Operation – Continuous, unattended production for roll-to-roll and sheet-fed label workflows.
🔷 Dual Mode Support – Handles roll-to-roll and sheet-fed label production, offering unmatched format flexibility.
🔷 Digital Cutting Process – Eliminates costly dies, ensuring on-demand production with no additional tooling costs.
🔷 High-Speed Cutting – Achieves linear cutting speeds up to 10.5m/min, depending on label design and roll width.
🔷 Inline Lamination – Enhances labels with protective lamination for scratch, water, and UV resistance.
🔷 Matrix Removal & Slitting – Removes waste matrix and slits finished labels into up to 7 rolls for direct application.
🔷 Automatic Tracking Technology – Continuously monitors roll position for dynamic cutting accuracy and rewind precision.
🔷 QR Code Job Recognition – Instantly retrieves cut files for mixed job batches, eliminating manual setup.
🔷 Touchscreen Control Panel – LCD display and tactile controls allow for precise operation and easy job management.
🔷 Quiet Operation – Integrated acoustic muffling bar minimizes noise for office-friendly operation.
System Specifications
| Specification | Details |
|---|---|
| Max Media Size (Sheet-Fed) | 330 x 750mm |
| Min Media Size (Sheet-Fed) | 150 x 190mm |
| Media Thickness | 140gsm (0.14mm) – 350gsm (0.35mm) |
| Auto-Sheet Capacity | Up to 250 sheets |
| Max Cutting Speed | 1060mm/sec |
| Max Cutting Force | 750gf |
| Registration System | Vision3 CCD ARMS 8 for precision alignment |
| Contour Cutting | Full HPGL vector cutting with PageMark CCD sensor |
| Mountable Tools | Cutting blades (30°, 45°, 60°), pen calibration tool |
| Cut Position Accuracy | +/- 100 microns |
| Power Supply | 100-240V AC, 320W, 4.2A |
| Weight (Unpacked) | 39kg |
| Dimensions | 690mm (W) x 530mm (D) x 450mm (H) |
Software Integration
💻 ColorCut Pro 5 – Advanced software suite for complete label cutting automation and workflow management.
✔ DIRECT Mode – Real-time adjustments for precision control.
✔ HELD Mode – Stores job parameters for standalone production.
✔ QR Code & Registration Marks – Automated cut file retrieval for precise alignment.
✔ Job Library – Saves cut jobs for instant reuse and recall.
Optimized Applications
- Professional Label Production – Short-run custom label production with on-demand cutting.
- Digital Print Finishing – Inline label finishing for high-volume roll-to-roll applications.
- Promotional & Custom Branding – Precision cutting for stickers, decals, and marketing materials.
Optional Enhancements
✔ Advanced Cutting Blades – Supports multiple blade types for various label stocks.
✔ Automated Job Tracking – Seamless QR-based job handling for batch production.
✔ Ergonomic Stand – Height-adjustable stand for enhanced stability and efficiency.
