Martin Yale 1501X Automatic Paper Folder
Martin Yale 1501X AutoFolder (CV-7) desktop paper folder. Up to 7,500 sheets per hour, 5 fold types, 150-sheet feed tray, 16 to 28 lb bond. Martin Yale dealer in Michigan.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

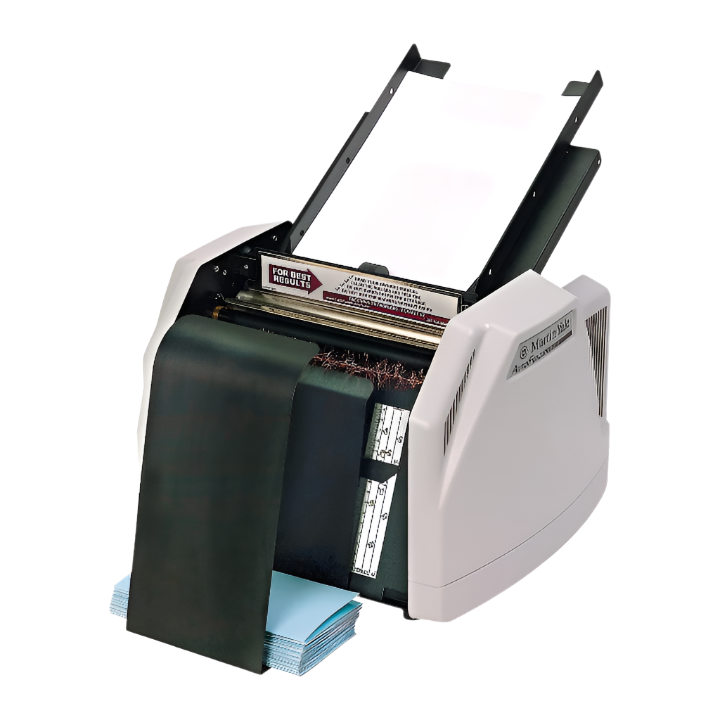

Martin Yale 1501x Paper Folder
The Martin Yale 1501x Paper Folder is a high-speed, automatic paper folding machine designed to handle frequent medium-sized jobs with ease. This machine is perfect for churches, schools, businesses, and associations that require efficient and reliable paper folding.
The 1501x Paper Folder automatically folds sizes from 8.5" x 11" and 8.5" x 14", 16-28lb. bond paper, or 60gsm to 105gsm. It operates at a speed of up to 7,500 sheets per hour, enhancing productivity and efficiency. The machine can handle sheet sizes starting at 3.5" x 5".
Stapled sets of up to 3 sheets can be folded by manually feeding documents into the feed table bypass. The machine offers five different fold types: Letter fold, Half fold, Z-fold, Double-Parallel fold, and Gate fold, providing versatility for various paper folding needs.
Specifications
| Specification | Details |
|---|---|
| Model No. | 1501X |
| Benchmark Speed (sheets/hr.) | 7,500 |
| Standard Paper Size (inch/metric) | 8.5" x 11", 8.5" x 14" A4, A5 |
| Paper Weight (up to sheets) | 60 gsm to 105 gsm 16# bond to 28# bond |
| Manual Paper Feed (up to sheets) | 3 |
| Feed Tray Capacity (up to sheets) | 150 |
| Power (volts) | 115/230 |
| Dimensions (W x D x H approx. inch) | 24 x 15 x 16 |
| Weight (approx. lbs.) | 31 lbs. |
Compare Martin Yale desktop folders
Mid-State Litho sells seven Martin Yale desktop folders. The 1501X folds letter and legal sheets at up to 7,500 sheets per hour.
- Martin Yale P7500 RapidFold: an automatic desktop folder.
- Martin Yale 1611: an office folder for sheets up to 8.5 x 14 in.
- Martin Yale 1711: an automatic folder for sheets up to 8.5 x 14 in.
- Martin Yale 1812: a variable-speed folder for sheets up to 12 x 18 in.
See every model on the Martin Yale desktop folders page. Compare other brands on the tabletop letter folders and paper folders pages.
Buy the 1501X from Mid-State Litho
Mid-State Litho is a Michigan-based dealer for Martin Yale. Martin Yale ships the 1501X by parcel in 3 to 5 business days.
For setup or service questions, contact the MSL service team. MSL offers financing and leasing on equipment purchases.
Martin Yale 1501X questions
How fast is the Martin Yale 1501X?
Martin Yale rates the 1501X at up to 7,500 sheets per hour.
What paper sizes and weights does the 1501X fold?
The 1501X folds 8.5 x 11 in and 8.5 x 14 in sheets, plus A4 and A5. The smallest sheet is 3.5 x 5 in. It takes 16 lb to 28 lb bond (60 to 105 gsm).
Which folds can the 1501X make?
The 1501X makes 5 folds: letter fold, half fold, Z-fold, double parallel fold, and gate fold.
Can the 1501X fold stapled sets?
Yes. Feed stapled sets of up to 3 sheets by hand through the feed table bypass. The automatic feed tray holds up to 150 sheets.
How big is the 1501X?
The 1501X is approximately 24 x 15 x 16 in and weighs approximately 31 lb. It runs on 115 V or 230 V power.
