New
Uchida Countron Touch paper counter
MBM

MBM Uchida Countron Touch Paper Counter

Uchida Countron Touch pin and blade paper counter with touch screen. Up to 2,500 sheets/min, 22-256 gsm, tab insertion every 2-1,000 sheets. Sold through MBM.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

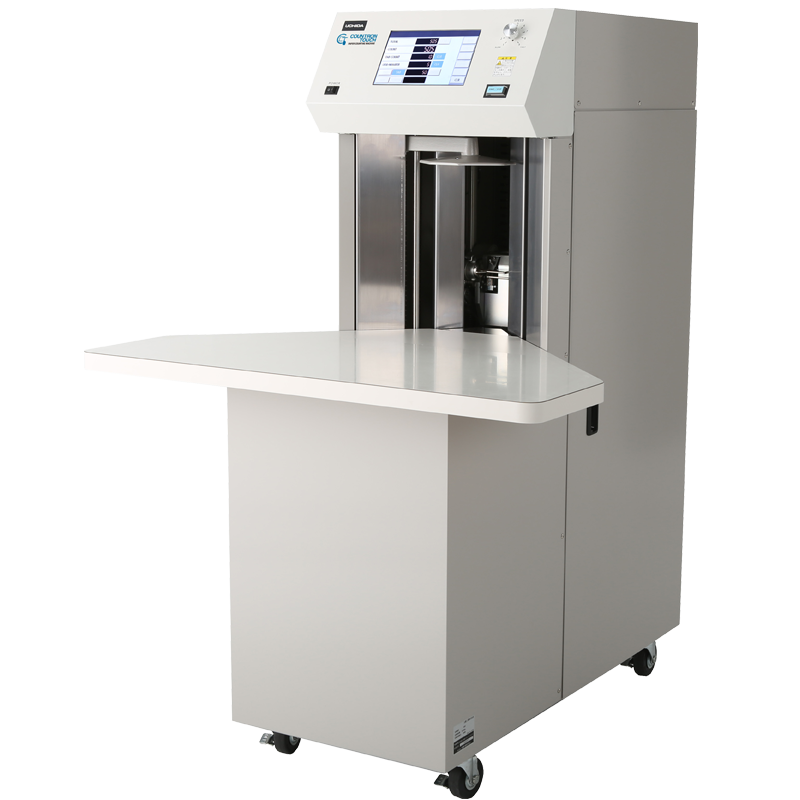

MBM Uchida Countron Touch Paper Counter

The Uchida Countron Touch is a standalone pin-and-blade paper counter with a touch screen control panel. It counts stocks from 22 to 256 gsm at up to 2,500 sheets per minute and can insert tab tapes every 2 to 1,000 sheets to separate batches. It handles offset, coated and digitally printed stock as well as thin invoice paper.

Speed Up to 2,500 sheets/min
Paper weight 22 to 256 gsm
Stack height Up to 11.8″ (300 mm)
Operation Touch screen

Key Features

  • Pin and blade counting system
  • Large touch screen for settings, operation and error diagnosis
  • Tab tape insertion every 2 to 1,000 sheets
  • Random tab insertion for separating varying numbers of sheets with tab tapes
  • Sheet number check confirms the counted number matches a preset number
  • Appointed number counting to set aside a desired number of sheets from a stack
  • Optional built-in thermal printer prints each count record and error

Specifications

Machine Type Standalone, with touch screen
Counting Mechanism Pin and blade
Counting Speed 0 to 2,500 sheets/min*
Paper Weight 22 to 256 gsm
Paper Size 3.9″ × 5.9″ to 21.5″ × 31.0″ (100 × 150 mm to 546 × 788 mm)
Stacking Height Up to 11.8″ (300 mm)
Tab Tape Insertion Every 2 to 1,000 sheets
Work Table Height 29.9″ (760 mm)
Power Source 110/120/220/230/240 VAC, 50/60 Hz, single phase
Power Consumption 500 W
Dimensions (W × D × H) 35.4″ × 42.6″ × 53.1″ (900 × 1,081 × 1,350 mm)
Net Weight 150 kg
Options Count record management system for PC, RAM for random tabbing program memory, large table, small item counting guide, built-in thermal printer
* Speed depends on paper type and application. Specifications are subject to change without notice.
