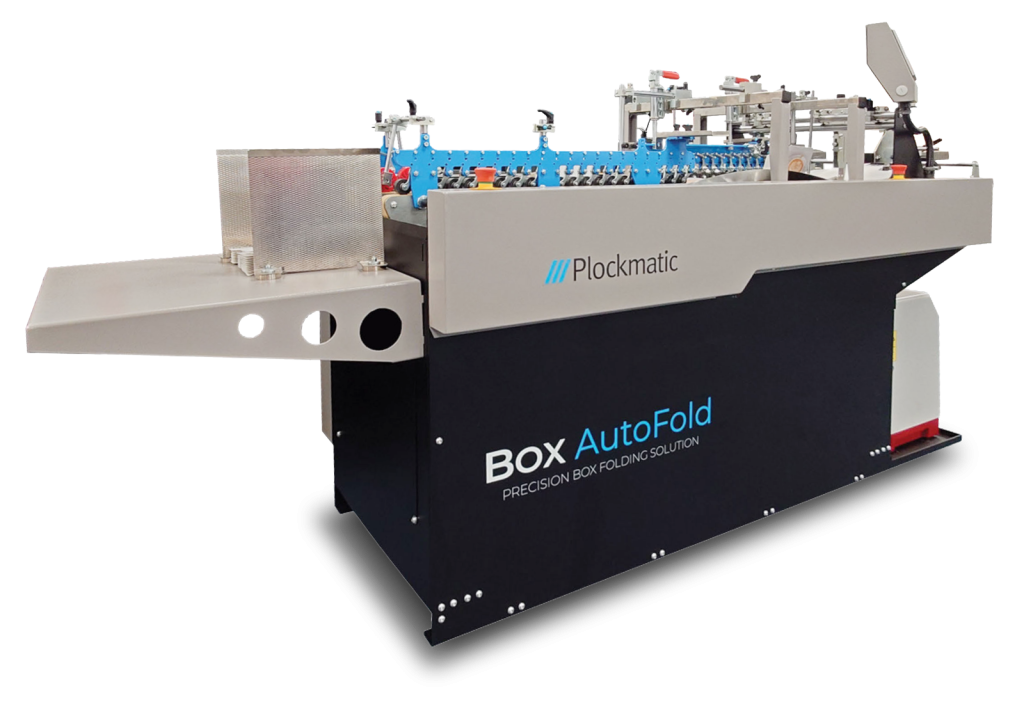

Plockmatic Box AutoFold folder-gluer
Plockmatic

Plockmatic Box AutoFold Folder-Gluer

Plockmatic Box AutoFold compact automatic folder-gluer for short-run digital packaging. Straight-line boxes and folders, hot melt gluing, 25 m/min, 250-450 micron media.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

Plockmatic Box AutoFold Folder-Gluer

The Plockmatic Box AutoFold is a compact automatic folding and gluing system for digitally printed, die-cut packaging. It folds and glues straight-line boxes, packaging, folders and point-of-sale pieces with a German hot melt gluing head, two extended folding ploughs and a continuous feeder that can be top-loaded while it runs. It is built for short, varied runs without the footprint or setup of a large folder-gluer.

Speed 25 m/min (82 ft/min)
Media 250 to 450 micron
Max sheet 9.8″ × 16.5″
Gluing Hot melt

Key Features

  • Automatic folding and gluing for straight-line boxes, packaging, folders and POS items
  • Auto sheet feeder with continuous bottom feed; top-load more die-cut sheets during production
  • Two extended folding ploughs for digitally cut work where creases can be less defined than platen die-cut creases
  • German hot melt gluing head with automated sensors
  • Simplified rail system for faster changeover between jobs
  • Touch screen interface for machine functions
  • Compressor supplied

Specifications

Maximum Sheet Size 9.8″ W × 16.5″ L (250 × 420 mm)
Minimum Sheet Size 3.5″ × 3.5″ (90 × 90 mm)
Media Thickness 250 to 450 micron
Feeding System Top-loading continuous friction feeder with adjustable feeder belts
Mechanical Speed 25 m/min (82 ft/min)
Counter Total counter and hourly speed rate
Folding and Gluing Unit 1 unit with narrow conveyor belts for parallel fold, up to 450 micron on short grain
Folding Tools Kit for folding straight-line boxes of various sizes
Delivery Delivery table with magnetic stacker guides
Compressed Air Compressor supplied
Power 220–240 V, 50/60 Hz, 1.5 kW plus 4.5 kW hot melt system
Dimensions (H × W × D) 55.5″ × 96.5″ × 32″ (1,410 × 2,450 × 820 mm)
Weight 1,034 lb (469 kg)
* Specifications depend on application, media type, temperature and relative humidity, and are subject to change without notice.
