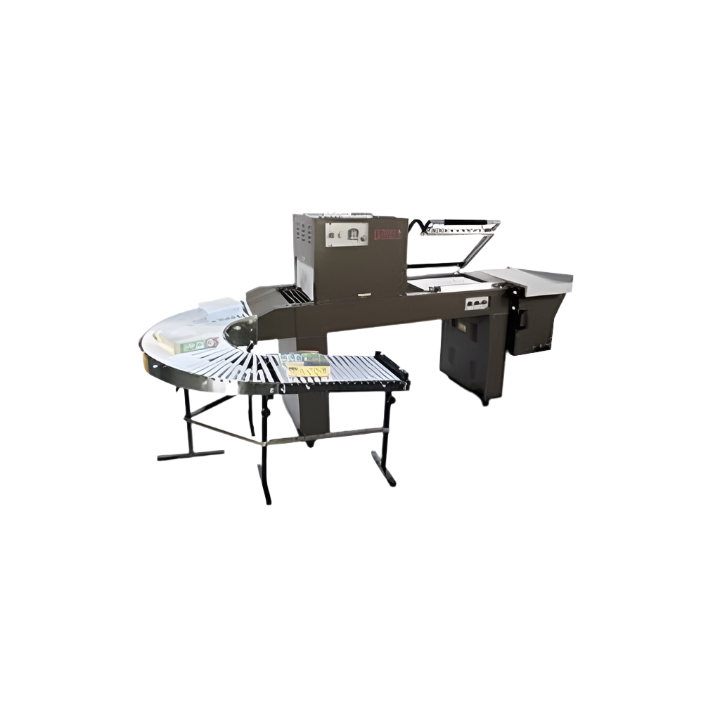

PP-1519 L Sealer and Shrink Tunnel Combo with curved gravity conveyor

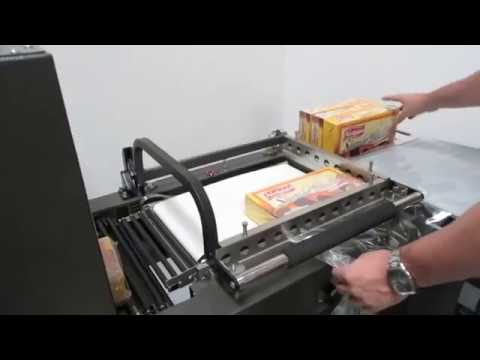

PP-1529 ECMC Economy L'Sealer & Shrink Tunnel Combination Machine
BPX Solutions

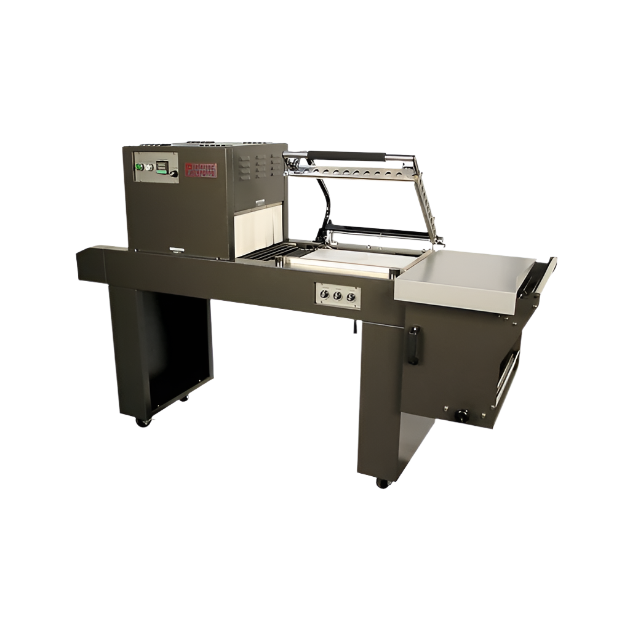

PP-1519 L Sealer and Shrink Tunnel Combo

The PP-1519 is a great machine for low to medium production speeds of 8-12 PPM. An excellent choice for all kinds of operations.

Pricing by quote

We will quote equipment price, freight to your ZIP, and any install or service needs.

Tax-exempt? Apply once, check out tax-free
Size L-Sealer Only
Parcel shippingShips by ground carrier.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Downloads

Details & specifications

The PP-1519 EC Series is a compact, entry-level L-sealer and shrink tunnel combo for low to medium production speeds. Both stations sit on a single frame, which saves floor space and keeps the machine simple to place. Micro-knife sealing and digital heat control produce consistent, professional shrink-wrapped packages at 8 to 12 packages per minute.

Key features

  • Micro-knife technology makes clean, consistent seals on PVC and polyolefin shrink films
  • Easy-load film cradle simplifies film loading and adjustment between jobs
  • Perforating pin wheel hole punch vents air out of the package, which reduces bubbles and wrinkles
  • Adjustable film loading tray accommodates various package sizes
  • Seal cycle indicator tells the operator when the sealing cycle is complete
  • Independent seal and pulse timers give precise control over the sealing process
  • Heavy-duty stainless steel film clamps built for long service
  • L-sealer and shrink tunnel combined on a single frame to save space
  • AC variable speed drive, adjustable from 0 to 60 feet per minute (FPM)
  • Digital temperature control with accurate heat adjustment from 0 to 400°F
  • Re-circulating air chamber distributes heat evenly for consistent shrinking
  • Anti-jam safety feature prevents package jams
  • Single-piece Teflon band ribbon reduces dog ears and improves seal quality
  • Multiple pin wheels improve shrink film ventilation
  • Optional magnetic hold down adds stability so packages do not shift during sealing
  • Optional power discharge conveyor carries product into the shrink tunnel automatically

Specifications

Specification Details
Seal dimensions 15" W x 19" L
Tunnel dimensions 20" L x 16" W x 6" H
Machine dimensions 76" L x 26" W x 50" H
Shipping weight 374 lbs
Power requirements 110V, 1 phase, 20 amp or 220V, 1 phase, 10 amp
Operating speed 8 to 12 packages per minute (PPM)
Warranty 1 year on band ribbon

Applications

  • Manufacturing and industrial: light-duty packaging lines that need shrink-wrapped protection
  • Food and beverage: pre-packaged foods, baked goods, and snack packaging
  • Pharmaceutical and medical: secure shrink-wrapping for medications and medical supplies
  • Consumer goods and retail: electronic accessories, DVDs, and small packaged items
  • E-commerce and small businesses: shrink-packaging that leaves product ready to ship
