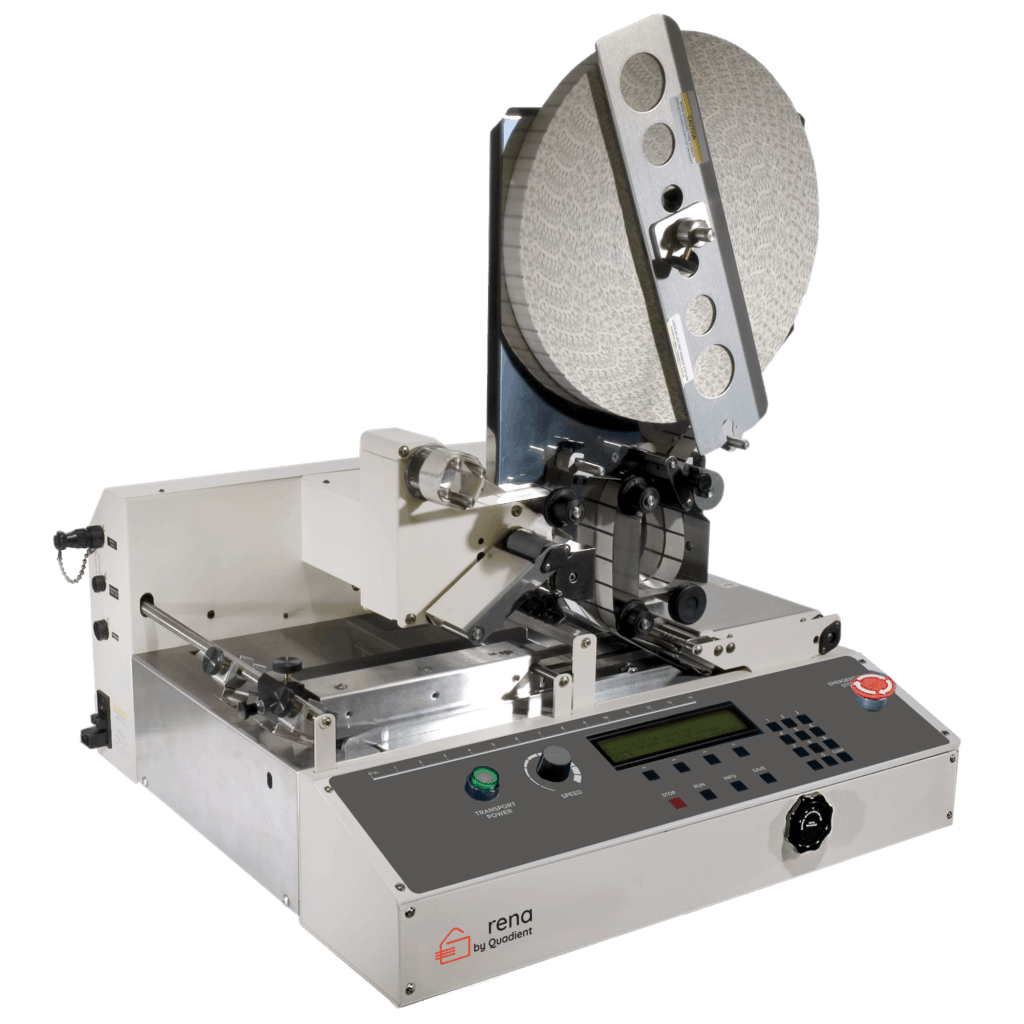

RENA by Quadient T-750

In-Line Tabber & Stamp Affixer

The RENA T-750 is a high-speed, in-line tabber and stamp affixer built for production-level mailing operations. It applies 1, 2, or 3 tabs or stamps in a single pass on open-ended mail pieces, folded documents, newsletters, and booklets—ensuring USPS compliance with precise placement at up to 20,000 pieces per hour. Engineered for inline or standalone operation, the T-750 offers automatic tab detection, programmable tab positioning, and synchronized speed control, all housed in a rugged aluminum and steel frame for years of reliable service.

Key Features

🔷 High-Speed Tabbing & Stamping – Processes up to 20,000 pieces per hour (12,000 double-tab / 8,000 triple-tab).
🔷 Multi-Tab Functionality – Applies 1, 2, or 3 tabs or stamps per pass with adjustable placement.
🔷 Tab Compatibility – Works with paper, translucent, or clear tabs up to 1.5” diameter.
🔷 Automatic Tab Detection & Placement – Offers tight ±1/16” tab placement accuracy.
🔷 Heavy-Duty Construction – Built with aluminum and steel for durability in production environments.
🔷 In-Line Integration – Synchronizes with RENA EASYFeed Lite or other systems using Start/Stop control.
🔷 Wide Media Handling – Accepts mail pieces up to 3/8” thick and up to 13” x 17” in size.
🔷 Production Monitoring – Built-in life/job counters, production rate display, and error reporting.
🔷 Safety Features – Includes Emergency Stop and interlock protection on adjustment points.

Specifications

Applications

📬 High-Volume Self-Mailer Tabbing – Applies USPS-compliant tabs to brochures, folded mailers, and newsletters.
📦 Commercial Mail Production – Tab double postcards, booklets, and folded stock at scale.
🗳 Political & Promotional Campaigns – High-output tabbing for mass mail marketing and outreach.
📮 Stamp Affixing – Applies stamps or labels in-line with addressing or finishing systems.

Available Options

📍 RENA EASYFeed Lite Feeder – Adds high-capacity, synchronized input feeding.
📍 Conveyor/Stacker System – Automates post-tab handling and stacking.
📍 Pre-Die Cut Tab Rolls – Available in clear, paper, or translucent styles, up to 30,000 tabs per roll.

Benefits

✅ Maximizes throughput with multi-tab and stamp application in a single pass.
✅ Supports varied workflows with inline and standalone capabilities.
✅ Reduces downtime with large tab roll capacity and auto tab sensing.
✅ Improves accuracy with tight tab placement and vacuum-guided transport.
✅ Built for demanding workloads with durable construction and long duty cycle.
