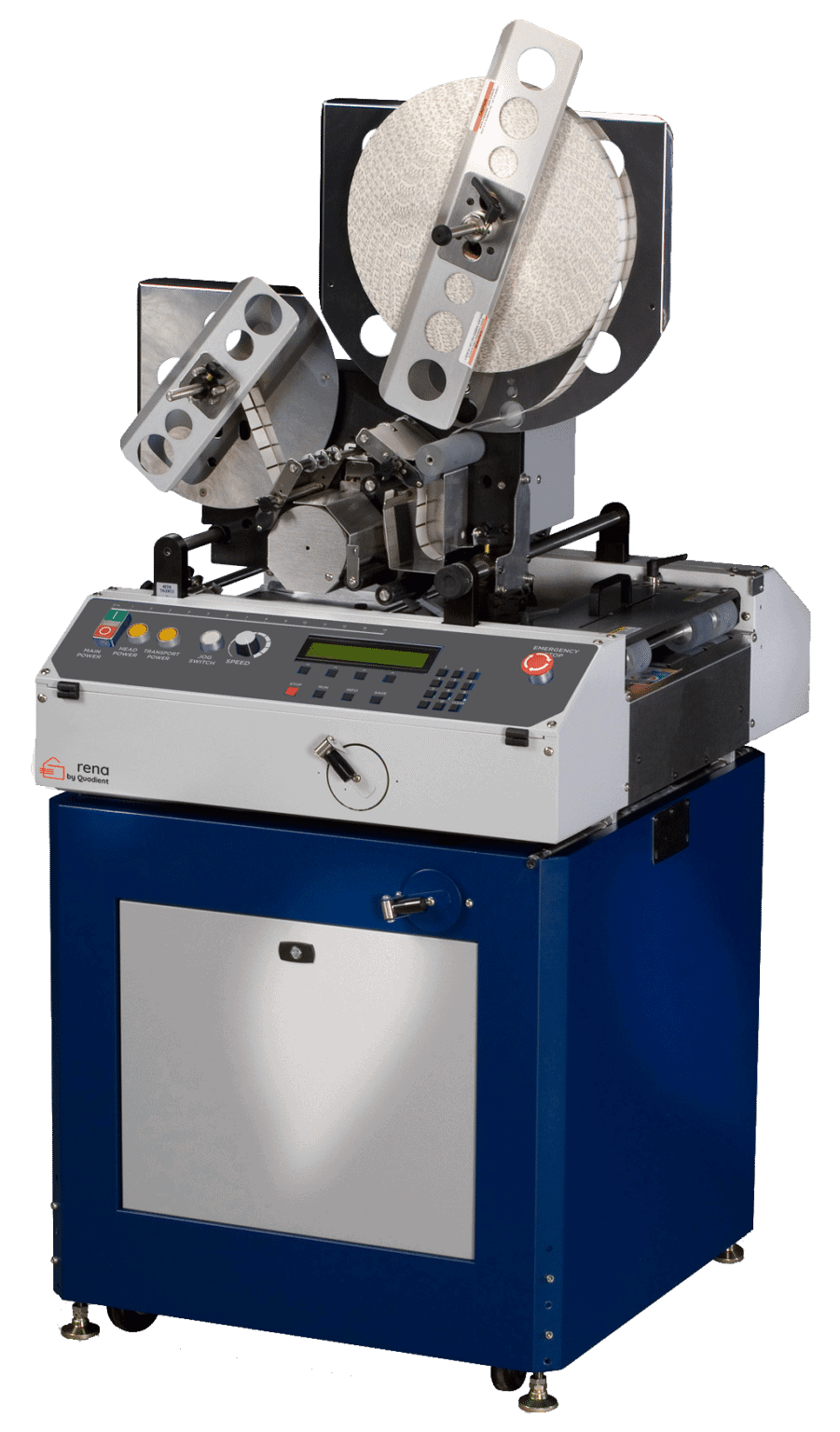

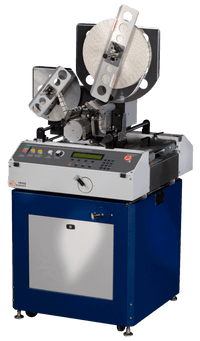

RENA by Quadient XPS-ProTab 4.0
Console Tabber & Labeler delivers high-speed tabbing, labeling, and stamp affixing, featuring AccuTrak™ material control and in-line inkjet compatibility.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Console tabber and labeler
The RENA XPS-ProTab 4.0 is an in-line console tabbing, labeling, and stamp affixing system built for direct mail operations and commercial mailing facilities. It runs up to 35,000 pieces per hour, applies 1, 2, or 3 tabs per pass, and sits on a heavy-duty steel and aluminum frame. It runs in-line with RENA Systems inkjet consoles and other console bases, so it drops into an existing mailing line without extra hardware.
Key features
- Processes up to 35,000 pieces per hour
- Applies 1, 2, or 3 tabs per pass in clear, paper, or translucent finishes
- Accepts tab rolls up to 19.5" in diameter, so long jobs run without constant reloading
- Places tabs within 1/8 of an inch for consistent positioning piece to piece
- Runs in-line with RENA Systems and other console bases
- Applies labels up to 4" wide and affixes stamps for various mail classes
- AccuTrak material control registers each piece during application
- Steel and aluminum construction built for daily production use
- Sensor system detects media for smooth feeding, quick setup, and less waste
- Start/stop feeder control and emergency stop interlocks
Specifications
| Specification | Details |
|---|---|
| Max tab speed | 35,000 postcards per hour |
| Number of tabs per pass | 1, 2, or 3 |
| Tab roll size | Up to 19.5" diameter, 3" core |
| Tab types | Clear, paper, translucent, stamps |
| Max label width | 4" |
| Transport system | AccuTrak material control |
| Integration | Runs in-line with inkjet consoles |
| Material handling | Sensor-monitored feeding |
| Power supply | 220VAC single-phase 20A |
| Construction | Heavy-duty steel and aluminum |
| Machine dimensions | 27" W x 33" D x 66"-71" H |
Applications
- USPS tabbing compliance on self-mailers and booklet mailings
- Label, stamp, and security seal affixing at production speed
- Bulk mailing at commercial mailing houses, fulfillment centers, and print shops
- High-volume envelope and self-mailer tabbing in corporate mail centers
Available options
- Conveyor and stacking system for batch sorting and job handling
- XPS-ProFeed feeder for automatic material feeding on continuous runs
- XPS-ProDry drying unit for ink drying and better tab adhesion
Benefits
The XPS-ProTab 4.0 replaces hand tabbing with automatic placement, and the large-capacity tab rolls keep runs going between reloads. AccuTrak registration holds tab position from the first piece to the last, and the steel and aluminum frame is built for years of production. Because it ties into existing RENA console lines, it adds tabbing, labeling, and stamp affixing to a mailing operation without reworking the rest of the line.
