RX8 Media Changer
Ensure nonstop production with the RX8 Media Changer. High-speed, automatic roll splicing for seamless printing in publishing, direct mail
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

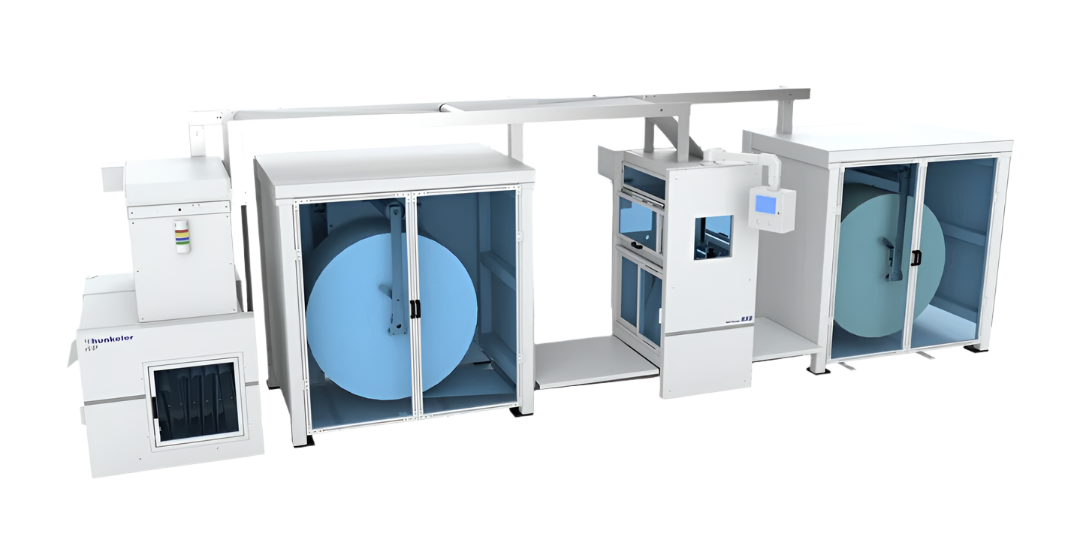

The RX8 Media Changer is an automated roll splicer for continuous production in high-volume printing. It works with digital presses and switches rolls on the fly, so paper types and weights can change without stopping the press. It is built for publishing, direct mail, and commercial printing.
Key features
- Runs at speeds up to 500 feet per minute (fpm) to keep pace with production.
- Handles web widths from 16" to 22.5".
- Supports roll weights up to 2,000 lbs and diameters up to 50 inches for long runs.
- Runs 40 to 150 gsm paper.
- Automatic roll splicing switches between rolls without stopping production, which cuts waste and downtime.
- Control system with a clear interface for quick setup, monitoring, and adjustments.
Specifications
| Specification | Details |
|---|---|
| Production speed | Up to 500 feet per minute (fpm) |
| Web width | 16 inches to 22.5 inches |
| Maximum roll weight | 2,000 lbs |
| Maximum roll diameter | 50 inches |
| Paper weight | 40 to 150 gsm |
Optional enhancements

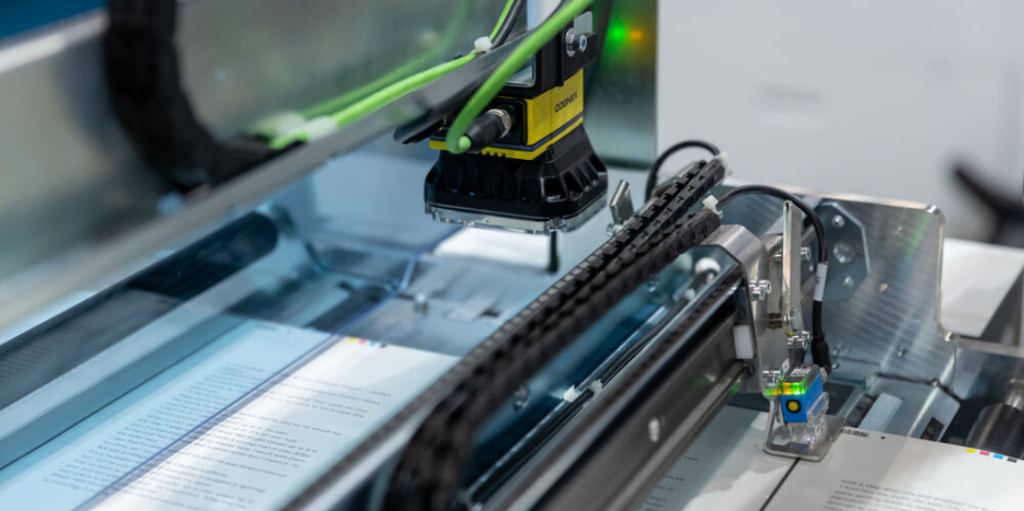

- Web inspection system: detects defects in the web before they reach finishing.
- Web buffer integration: holds consistent tension through roll transitions.
- Inline cutting and trimming: edge trimming and center cutting during roll changes.
Applications
- Publishing: continuous production of books, magazines, and catalogs.
- Direct mail: automated high-speed roll changes for mailing campaigns.
- Commercial printing: media changes without stopping for a range of print jobs.
