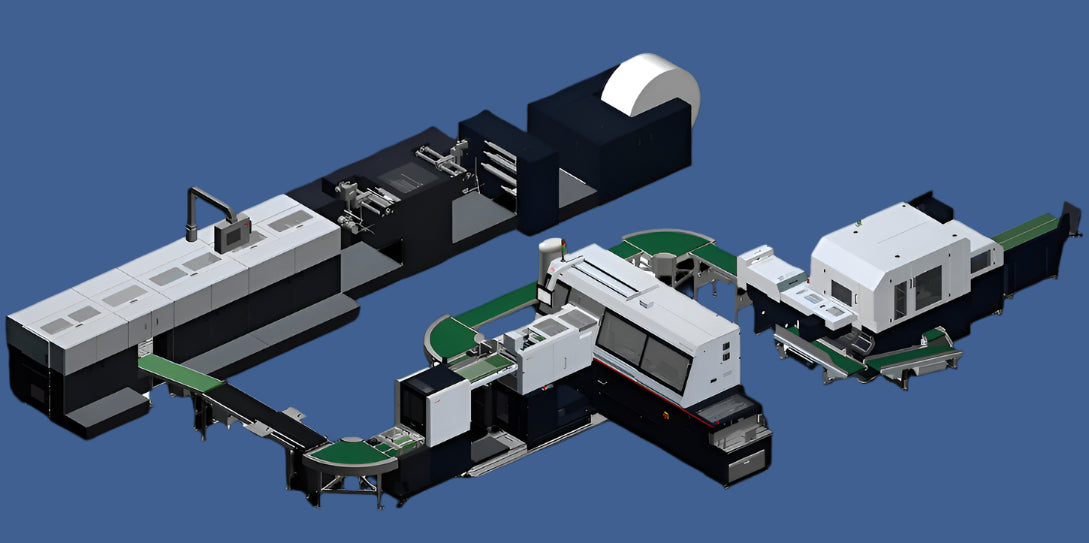

The BBS-56 Book Block Solution is a cutting-edge system for efficient book block production, combining advanced roll unwinding, cutting, and stacking technologies. Designed for high-volume applications, it delivers precision and speed, making it ideal for publishers, educators, and commercial printers.
Key Features
πΉ High-Speed Operation β Produces up to 800 stacks per hour, ensuring rapid throughput for large-scale production.

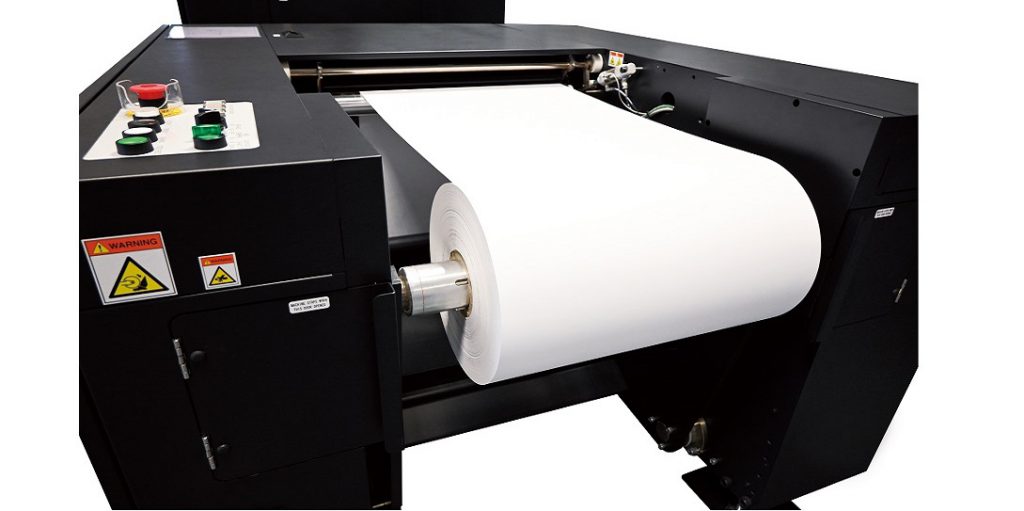

πΉ Wide Roll Size Compatibility β Handles roll widths from 8.6 inches to 23.0 inches and diameters up to 50.0 inches.
πΉ Versatile Paper Weights β Processes media ranging from 60 to 157 gsm, accommodating various printing needs.
πΉ Broad Signature Range β Supports signature widths of 4.30 inches to 11.50 inches and lengths from 6.00 inches to 12.59 inches.
πΉ Thick Book Block Capability β Creates book blocks up to 2.55 inches thick, ideal for diverse book types.

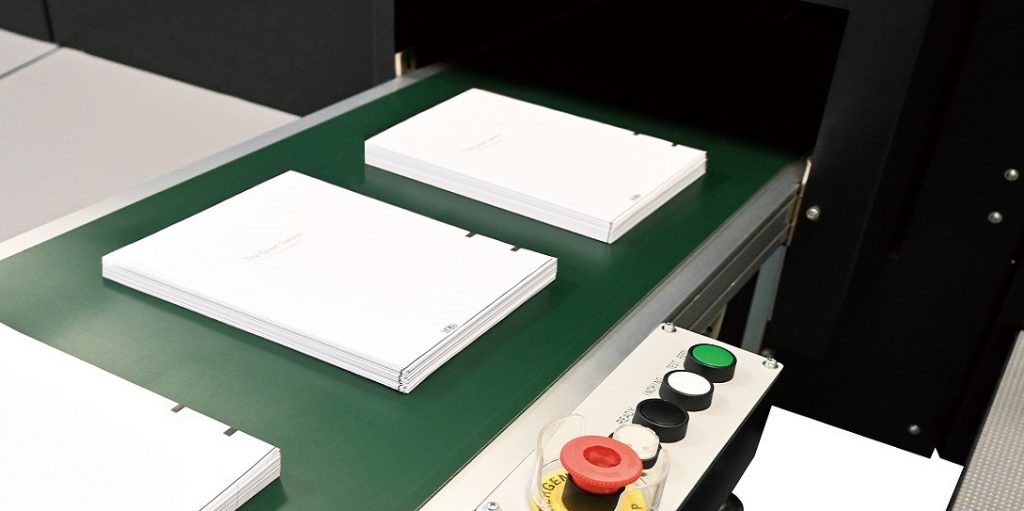

πΉ Precision Cutting and Stacking β Integrated cutter and stacker deliver accurate and consistent results.
Specifications
Specification | Details |
---|---|
Roll Width | 8.6 inches (Min) to 23.0 inches (Max) |
Roll Diameter | Up to 50.0 inches |
Roll Weight | Max 1,433 lbs |
Signature Width | 4.30 inches to 11.50 inches |
Signature Length | 6.00 inches to 12.59 inches |
Book Block Thickness | Up to 2.55 inches |
Paper Weight | 60 to 157 gsm |
Production Speed | Up to 800 stacks per hour |
Optimized Applications
π Perfect-Bound Books β High-quality production for publishing, education, and commercial use.
π Catalogs and Manuals β Ideal for detailed, multi-page documents.
π Print-on-Demand β Streamlined processing for customizable projects.
β Direct Mail Booklets β Efficiently produces folded and stacked materials for campaigns.
