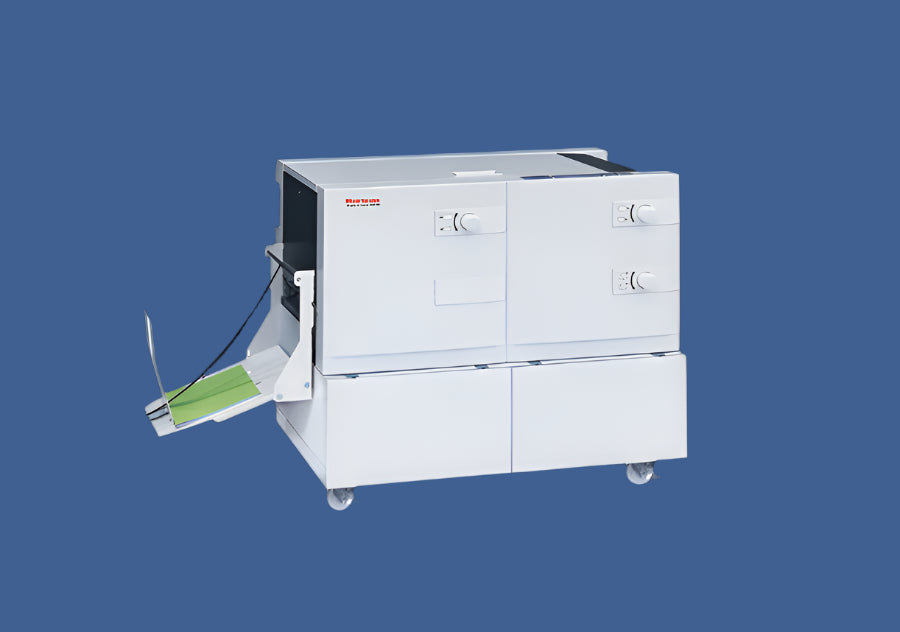

FC-P9 / FC-P9 is a compact, efficient offline bookletmaker that combines jogging, stapling, folding, and fore-edge trimming in one streamlined system. Designed for seamless integration with Horizon QC-S collators, it produces flat-finished, professional booklets at speeds up to 33 per minute. Ideal for manuals, catalogs, and folded documents, the system delivers consistent results with minimal operator intervention.
Key Features
đź”· Bookletmaking, top/side stapling, folding, and trimming in one pass
đź”· Flat-finish stapling for easy stacking and professional appearance
đź”· Handles a wide range of sizes up to SRA3 (manual feed)
đź”· LED jogging sensor and staple status monitor
đź”· Clean, flat folds via robust folding unit
đź”· Up to 33 booklets per minute for high throughput
đź”· Optional ED-9 delivery conveyor and IF-P9 infeed conveyor

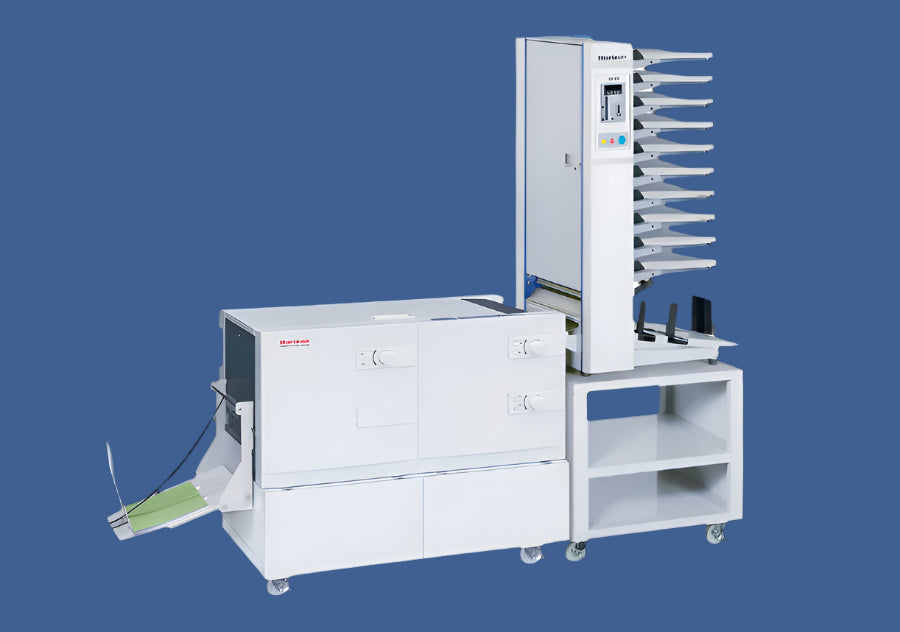

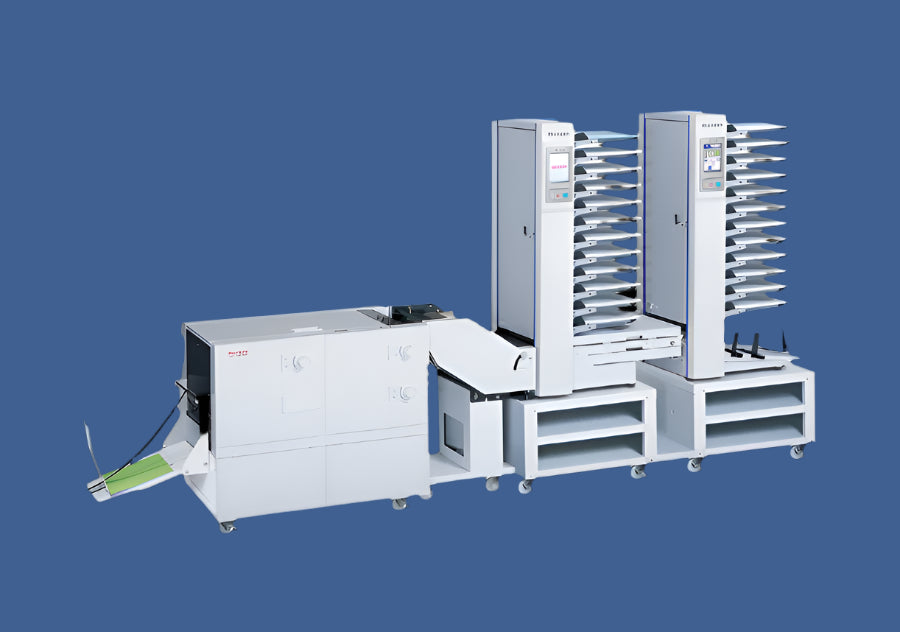

đź”· Integrates with QC-S30, QC-S1000, and QC-S1200 collators
Specifications
| Component | Specification |
|---|---|
| Max Booklet Size | 320 x 225 mm (12.59” x 8.85”) |
| Min Booklet Size | 210 x 138 mm (8.27” x 5.44”) |
| Max Sheet Size | 320 x 450 mm (12.59” x 17.71”) |
| Sheet Weight | 64 – 127.9 gsm (normal), 104.7 – 157 gsm (coated, manual feed only) |
| Max Stitch Thickness | 2.5 mm (25 sheets of 81.4 gsm) |
| Max Trim Thickness | 3 mm (0.11”) |
| Trim Width Range | 2 – 13 mm |
| Production Speed | Up to 33 booklets per minute |
| Stapling Distance | Fixed at 120 mm (4.7”) |
| Voltage (SPF-P9) | 115V / 230V, Single Phase, 50/60 Hz |
| Voltage (FC-P9) | 100V / 115V / 230V, Single Phase, 50/60 Hz |
| Dimensions (SPF-P9 with tray) | 1270 x 660 x 796 mm (50” x 26” x 31.3”) |
| Dimensions (FC-P9 with tray) | 820 x 621 x 796 mm (32.3” x 24.4” x 31.3”) |
| Weight (SPF-P9) | 154 kg (340 lbs) |
| Weight (FC-P9) | 101 kg (223 lbs) |
Applications
đź“„ Booklets for manuals, reports, and instructions
📦 Finishing short- to mid-run printed sets offline
🏢 Offices and print environments needing flexible booklet finishing
Benefits
âś… Produces flat, neat booklets ideal for stacking and packaging
âś… Accepts a wide range of stocks and sizes
âś… Automated trimming and folding ensures clean finish
âś… Monitors jams and staple usage to reduce downtime
âś… Seamlessly integrates into Horizon QC collator workflows
