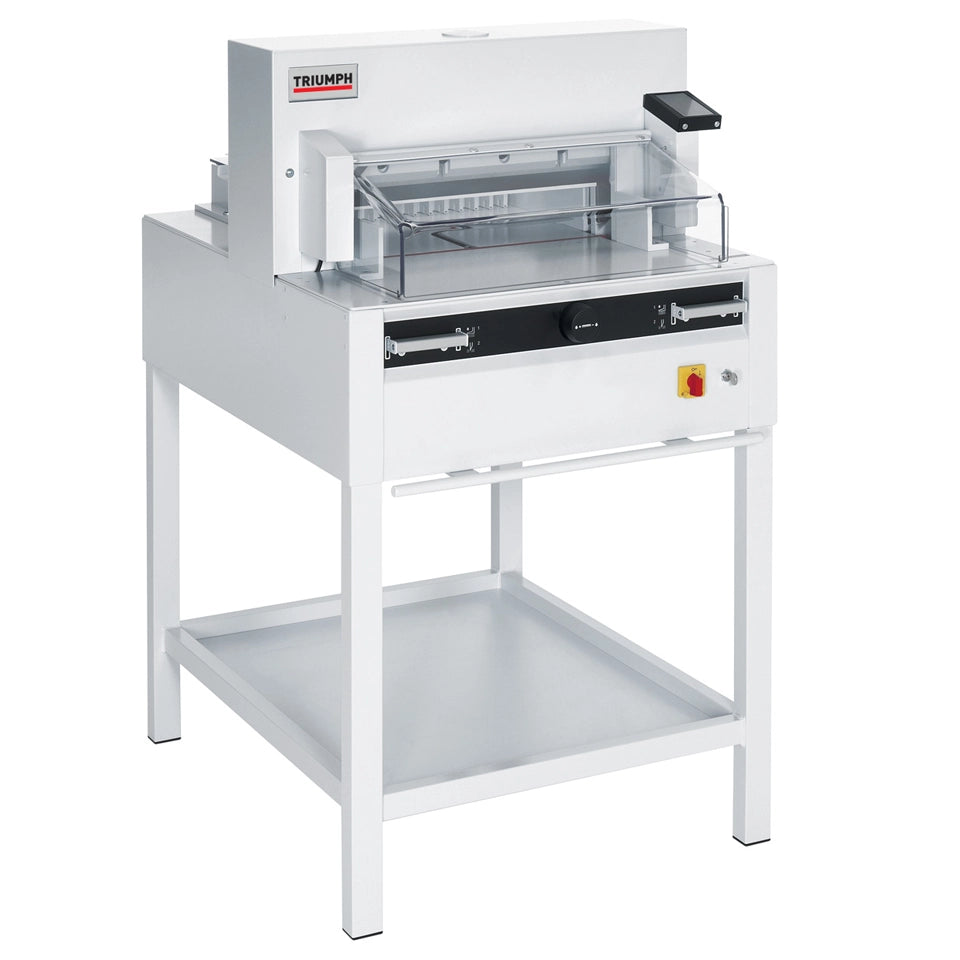

• Triumph 4855 programmable paper cutter with stand and transparent safety guard

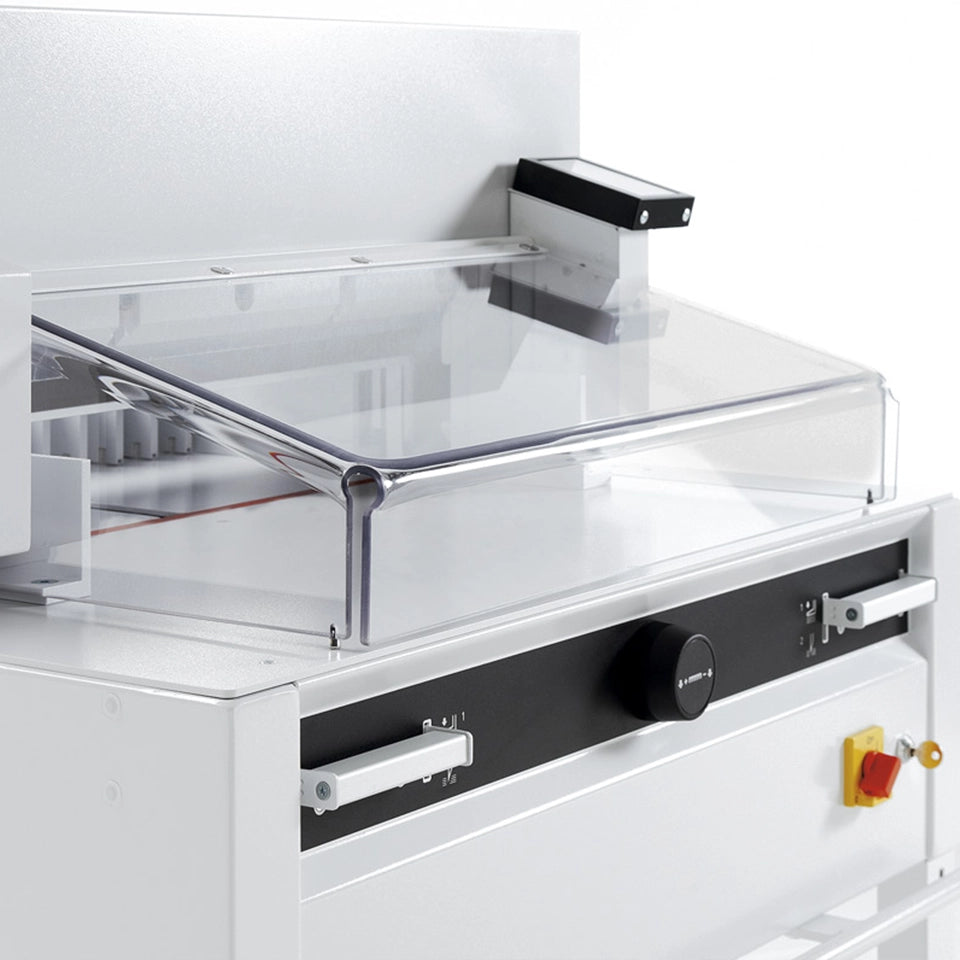

  • Triumph 4855 cutter close-up showing transparent safety guard and back gauge area

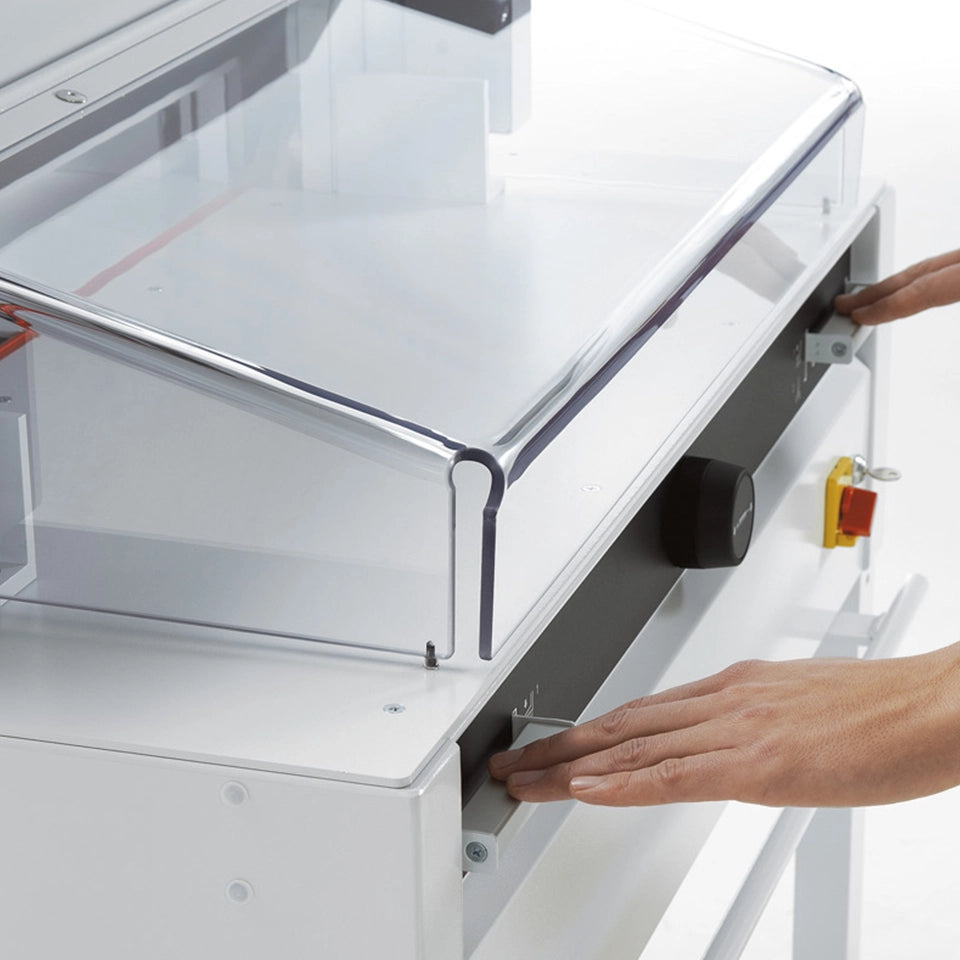

  • Hands operating the Triumph 4855 safety guard near the cutting area

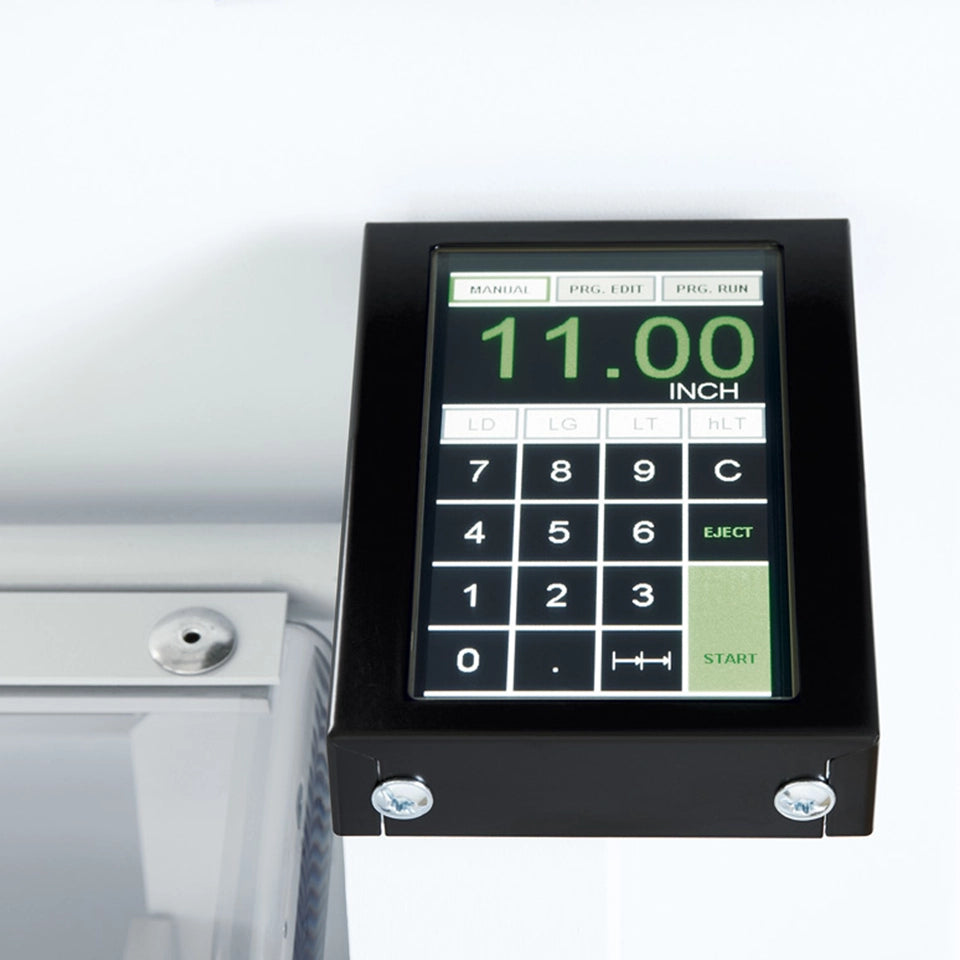

  • Triumph 4855 digital touchpad control panel close-up

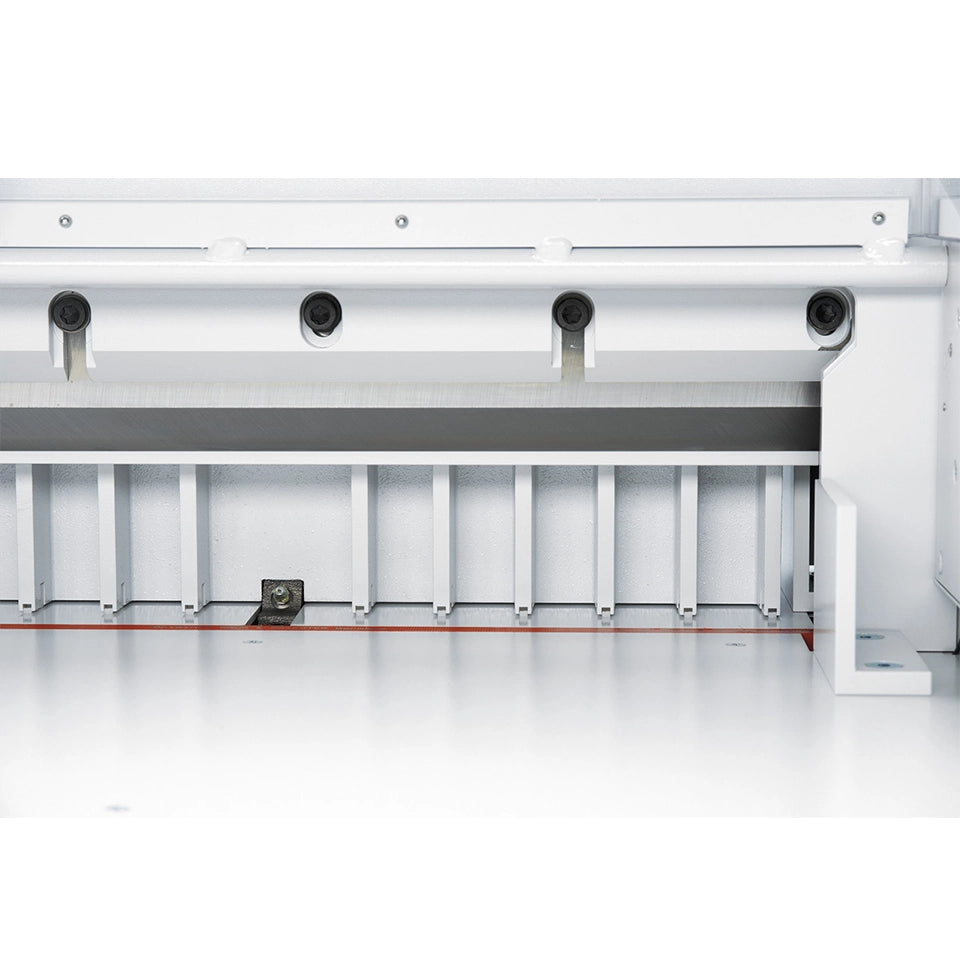

  • Triumph 4855 cutting area close-up showing the clamp and blade zone behind the guard

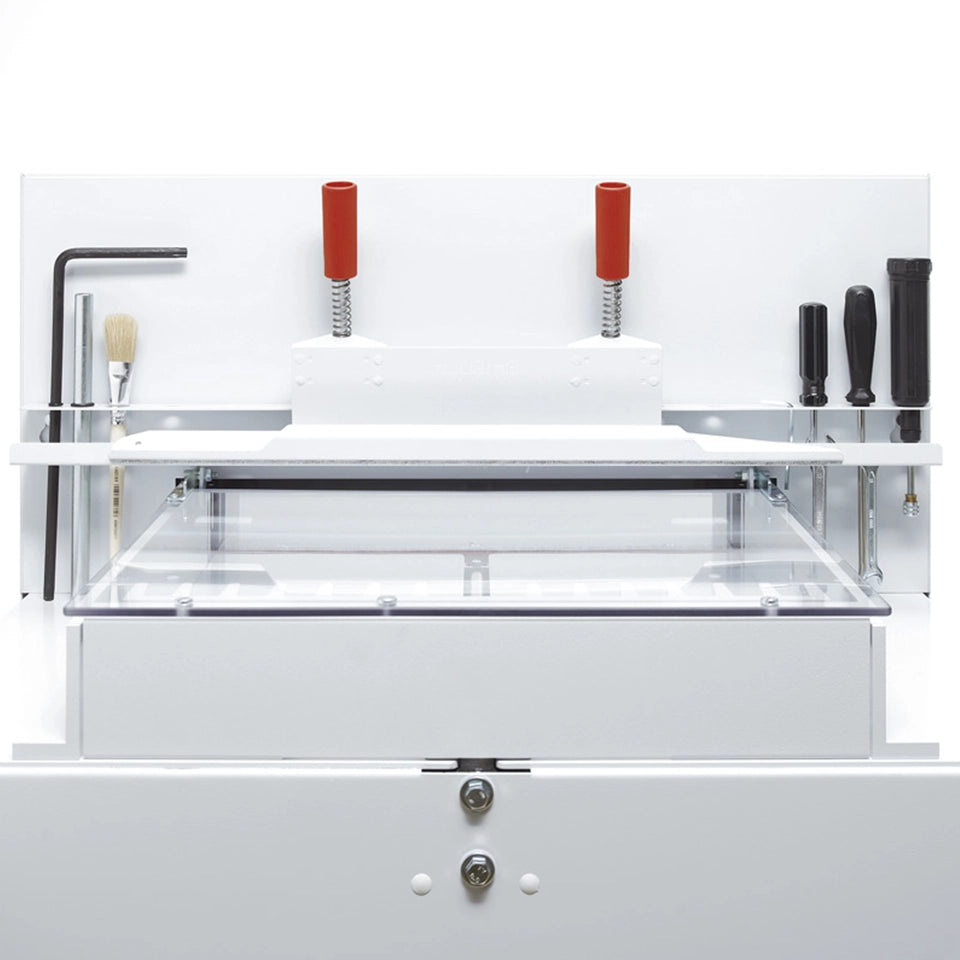

  • Front view of Triumph 4855 cutter with safety guard open and tool holder visible
1 6

MBM

Triumph 4855 Programmable Paper Cutter

Triumph 4855 Programmable Paper Cutter

Item Number: CU0419
$14,104.00 USD
$14,104.00 USD
Sale Sold out
Shipping calculated at checkout.
Side Table
View full details

Triumph 4855 Programmable Paper Cutter

18.7" Cutting Width Programmable Touchpad Automatic Clamp EASY CUT Two-Hand Operation

The Triumph 4855 is a professional programmable cutter built for precise, repeatable finishing. It combines an automatic clamp, power back gauge, and a multilingual digital touchpad with EASY CUT blade activation—helping operators run consistent cut sequences while maintaining strong safety and control.

Program capacity
99 programs / 99 steps each
Cut height
3.14"
Accuracy display
1/10 mm or 1/100"
Back gauge control
Electronic hand wheel (variable speed)
Operator guidance
Multilingual digital touchpad
Cut alignment
Bright LED optical cutting line

Key Features

  • Stores 99 programs with up to 99 steps per program
  • Pre-programmed for standard paper sizes
  • Memory key for repeat cuts
  • Automatic set function for reference measurement and eject function for pushing out paper
  • Automatic blade and clamp return from every position
  • Disc brake for instant blade stop
  • Self-diagnostic system with error indication on display
  • Digital measurement display with operator guidance (cm or inches)
EASY CUT operation: Patented activation bars ensure true two-hand operation and allow blade and clamp to be activated independently.

Why It Matters

Programmable cut sequences reduce re-measuring and help keep production consistent across operators and shifts. A power back gauge with digital positioning improves repeatability, while safety interlocks and two-hand activation support safer daily use in busy finishing environments.

Best fit for
Repeatable cut programs and short-run workflows
Operator confidence
Clear guidance + instant stop braking

Safety and Operation

  • Transparent, electronically controlled safety guard
  • Cut can only be executed when the safety guard is closed
  • Comprehensive SCS safety package
  • Main switch and safety lock with key
  • 24-volt low-voltage controls
  • Bright LED optical cutting line for alignment support

Maintenance and Blade Handling

  • Blade and cutting stick can be changed without removing covers
  • Blade changing device covers the cutting edge during replacement
  • Rear drop-in tool holder keeps routine maintenance tools within reach
Built for uptime: Tool storage and cover-on service access help streamline routine maintenance.

Specifications

Dimensions: 39" × 30" × 51"
Specification Detail
Cutting width 18.7 in
Cutting height 3.14 in
Narrow cut 1.37 in
Dimensions (D × W × H) 39 in × 30 in × 51 in
Width with side tables 53 in
Working height 37 in
Blade drive Electric
Back gauge Power back gauge with electronic hand wheel (variable speed)

Applications

Commercial print finishing In-plant print departments Digital print shops Short- and medium-run trimming Flyers, manuals, marketing collateral

Available Options

Side tables expand work surface width to 53 inches.

Benefits

  • Improves repeatability by saving common cut sequences as programs
  • Speeds daily setup with standard paper size presets and reference set functions
  • Helps support safer operation with an interlocked safety guard and two-hand activation
  • Reduces rework through accurate back gauge positioning and a clear optical cutting line
  • Simplifies upkeep with cover-on blade and cutting stick changes and onboard tool storage
