20-3/8" Programmable Paper Cutter System Details:

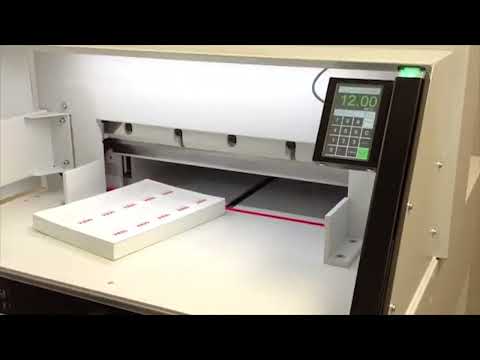

The Triumph 5255 is a 20-3/8" programmable paper cutter with automatic clamp, power back gauge, and digital touch-pad. The 5255 features an ergonomic 37" working height and electric blade and clamp drive.

Features:

  • Programmable cutter with automatic clamp, power back gauge, and digital touch-pad
  • Ergonomic, 37" working height
  • Electric blade and clamp drive
  • Electric back gauge drive with touch-pad for easy programming
  • Digital measurement display (cm or inches) with multilingual operator guidance, accurate to 1/10 mm or 1/100 inch
  • Stores 99 programs with up to 99 steps in each (up to 15 repeat cuts can be integrated as a single step)
  • Pre-programmed for standard paper sizes
  • Memory key for repeat cuts
  • Automatic set function for reference measurement and eject function for pushing out paper
  • Self-diagnostic system with error indication on display
  • Electronic hand wheel with variable speed control for manual back gauge setting
  • Bright, LED optical cutting line
  • Adjustable, spindle guided back gauge with narrow separations and plastic gliders
  • Dual side guides on front and rear tables
  • High quality, German steel blade
  • Solid steel blade carrier and adjustable blade guides
  • All-metal construction
  • Includes stand with storage shelf, easy-access tool holder, and paper blocking tool
  • Optional side tables increase work surface
  • UL and C UL approved

Technical Specifications:

Cutting Width 20-3/8"
Cutting Height 3"
Narrow Cut 1-3/8"
Length Behind Blade 20-3/8"
Shipping Weight 647 lbs (667 lbs with side tables)
Dimensions (D x W x H): 44" x 33-7/8" x 51" (56-1/2" W with side tables)
Electrical 115 V. 60 Hz., 20-amp dedicated line
*Equipment specifications are subject to change without notice.
