Baumfolder 20-Series Right Angle 8-Page Folder

The Baumfolder 20-Series Right Angle 8-Page Folder is a floor-standing, pile-feed right-angle folder that adds a second folding station to the Baumfolder 20 platform, so a single pass can produce right-angle cross folds, roll folds, and accordion folds. It is built for commercial print shops, binderies, and direct-mail operations running higher volumes than the 714 tabletop line. This 8-page folder handles sheets up to 20.5 inches at production speed and pairs a first parallel-fold station with a right-angle second station for finished 8-page signatures. As a pile-feed paper folder, it keeps an operator loading stock continuously instead of hand-feeding, which is what separates the 20-Series floor folders from smaller tabletop units. Micro-adjustment fold plates, combination folding rollers, and paperless roller gapsets make setup repeatable across mailers, brochures, manuals, and catalog work. Mid-State Litho is an authorized Baumfolder dealer, so every 20-Series folder ships with delivery, installation, and operator training, backed by factory-trained service across Michigan and the Great Lakes region.

Key features

• BaumQuick paperless roller gapsets set roller pressure quickly and precisely without paper strips.
• Micro-adjustment fold plates fine-tune fold lengths with macro and micro adjustments, using scaled inch belts and metric digital readouts.
• 1-1/8 inch removable slitter shafts make maintenance and setup adjustments easier.
• The quiet-positive helical gear drive runs smoothly with reduced noise.
• Combination folding rollers give consistent, high-precision folds across a variety of paper stocks.
• Wheels and leveling pads make the folder easy to move and hold it securely in position.
• An automatic lubrication canister lubricates the folder continuously for durability and performance.

Specifications

Options

• Independent operation adapter boxes allow inline integration with inkjet systems, creasers, and forms cutters.
• Additional fold plate configurations, including custom plate options.
• A high-capacity stacking table increases output capacity for continuous production.
• Perforation and scoring attachments add those functions in-line with folding.

Applications

• Right-angle cross folds, which add fold configurations beyond parallel folding.
• Direct mail: complex fold patterns for mailers and marketing pieces.
• Manuals and catalogs: instructional materials, technical guides, and booklets.
• Commercial printing: brochures, inserts, and specialty marketing materials.

About Baumfolder

Baumfolder is a long-running U.S. builder of pile-feed and tabletop paper folders for commercial print and bindery work. Mid-State Litho carries the active Baumfolder range and matches the machine to your feed type and fold complexity.

Choosing a Baumfolder: tabletop vs. floor pile-feed

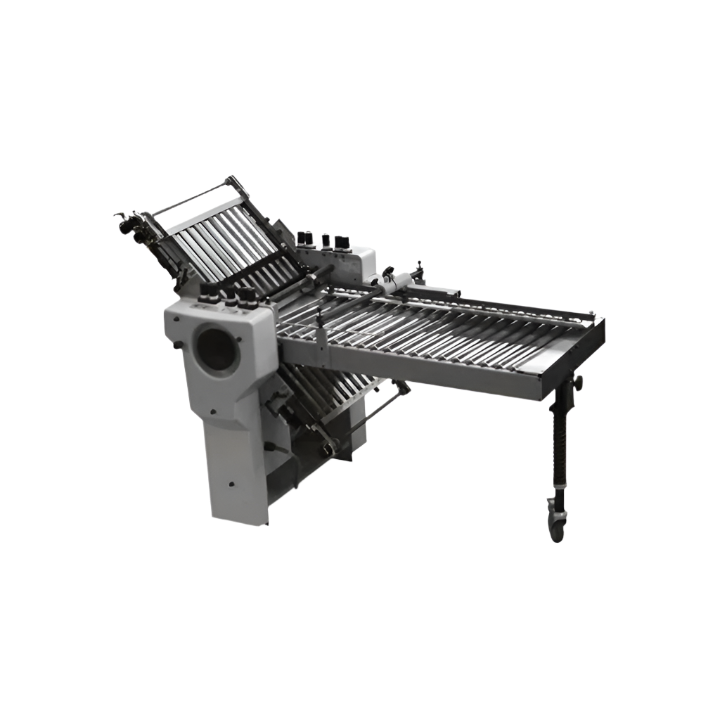

The first decision is tabletop versus floor pile-feed. The 714 tabletop series - including the Baum 714XA AutoFold - suits lighter, quick-turn folding. The 20-Series floor folders step up to continuous pile feeding for higher volumes. Within the 20-Series, match the station configuration to the fold you run: the Baum 20 PFF is the pile-feed base for parallel folds; this page (the 20 Right Angle 8-Page, EQ-1306) adds a right-angle second station for finished 8-page signatures; the Baumfolder 20 INF is the inline configuration; and the Baum 20-3 16-Page 3rd Station adds a third station for 16-page work. Browse all paper folding machines to compare the range.

Why Buy From Mid-State Litho

• Authorized Baumfolder dealer - genuine equipment, parts, and factory support.
• Delivery, installation, and hands-on operator training included.
• Factory-trained, in-house service technicians across Michigan and the Great Lakes region.
• Second-generation, family-owned print-finishing dealer since 1984.
• Equipment financing and trade-ins available - financing and leasing.

Frequently Asked Questions

What does the Baumfolder 20 Right Angle 8-Page folder do?
It adds a right-angle second station to the Baumfolder 20 platform so a single pass can produce right-angle cross folds, roll folds, and accordion folds for finished 8-page signatures.

Is this a floor folder or a tabletop folder?
It is a floor-standing, pile-feed 20-Series folder built for higher-volume commercial work, a step up from the 714 tabletop line.

How is stock fed into the machine?
It is a pile-feed folder, so an operator loads a pile of stock and the machine feeds continuously rather than being hand-fed sheet by sheet.

How does the 20 Right Angle 8-Page differ from the 20 PFF and 20 INF?
The 20 PFF is the pile-feed base for parallel folds, this 20 Right Angle model adds a right-angle 2nd station for 8-page folds, and the 20 INF is the inline configuration. The right one depends on your fold pattern and workflow.

Does Mid-State Litho install and service Baumfolder equipment?
Yes. Mid-State Litho is an authorized Baumfolder dealer with factory-trained technicians serving Michigan and the Great Lakes region, plus delivery, operator training, and financing. This model is sold as a quote item - request a quote for pricing and lead time.
