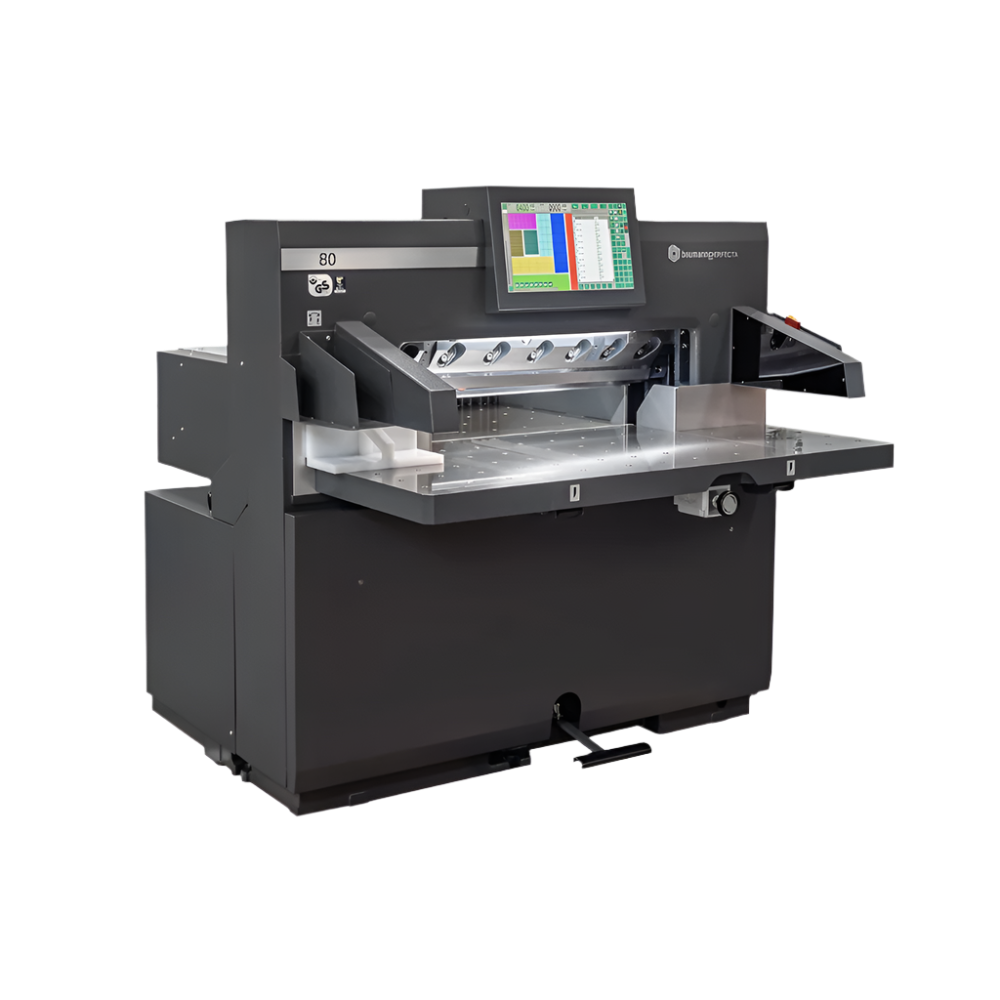

Perfecta BP 80 Paper Cutter (31.5" Width)
Perfecta BP 80 Paper Cutter (31.5" Width)
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
The Perfecta BP 80 is a high-production, heavy-duty paper cutter built for precision, speed, and reliability in demanding print environments. Manufactured in Germany, this machine integrates automation, operator convenience, and advanced safety features to maximize productivity and efficiency.
Key Features
- ⚙️ Powerful Gear Drive – Ensures consistent, high-performance cutting with a servo-driven back gauge for precise positioning.
- 📊 18.5” High-Resolution Touchscreen – TS computer with intuitive controls and CIP3/CIP4 integration for automated workflows.
- 📡 JDF File Compatibility – Accepts networked job ticket files, enabling fully automated cutting programs.
- 💨 Stainless Steel Air Table & Side Tables – Slot-less cutting surface with air bed ensures effortless material handling.
- 🔦 LED Cutting Line Indicator – Bright, precise LED guide for accurate cutting alignment.
- 🔧 Built-in Knife Hoist & Safety System – Automatic knife positioning with safety light barrier, two-hand cut activation, and rear table guarding.
- 🚀 Fast Setup & Automation – High-speed programming allows users to create cut sequences on the fly.
Specifications
| Specification | Details |
|---|---|
| Model | BP 80 |
| Cutting Table Width | 31.5” (800 mm) |
| Feed Height | 4.7” (120 mm) |
| Rear Table Length | 36.2” (920 mm) |
| Minimum Cut (Without False Clamp) | 0.7” (18 mm) |
| Minimum Cut (With False Clamp) | 1.9” (48 mm) |
| Clamping Force | Adjustable 450 - 5,620 lbs (2 - 25 kN) |
| Stainless Steel Air Side Tables | 13” x 20.1” (330 mm x 510 mm) |
Available Options
🔹 Enlarged Air Side Tables – Improves material handling for larger sheets.
🔹 Carbide-Tipped Blades – Enhanced durability for extended cutting life.
🔹 Lift Kit – Raises working height for ergonomic operation.
🔹 Smart Clamp – Controlled clamping stroke for delicate materials.
🔹 Low-Pressure Device – Ideal for pressure-sensitive and corrugated materials.
🔹 Barcode Scanner – Automates job selection with S2C (Straight To Cut) integration.
Why Choose the Perfecta BP 80?
✅ Maximize Productivity – Automated workflows, JDF compatibility, and network integration speed up operations.
✅ Unmatched Precision – Servo-driven back gauge, LED cut indicator, and stainless-steel air table ensure perfect cuts every time.
✅ Enhanced Operator Comfort – User-friendly touchscreen, ergonomic setup, and fatigue-reducing features.
✅ Ultimate Safety – Infrared safety curtain, two-hand activation, and overload protection.
Applications
📑 Commercial Print Shops – Bulk cutting with automated job recall.
📚 Publishing & Packaging – Precision trimming for books, labels, and specialty prints.
🏭 Industrial Finishing – High-volume cutting with minimal downtime.
