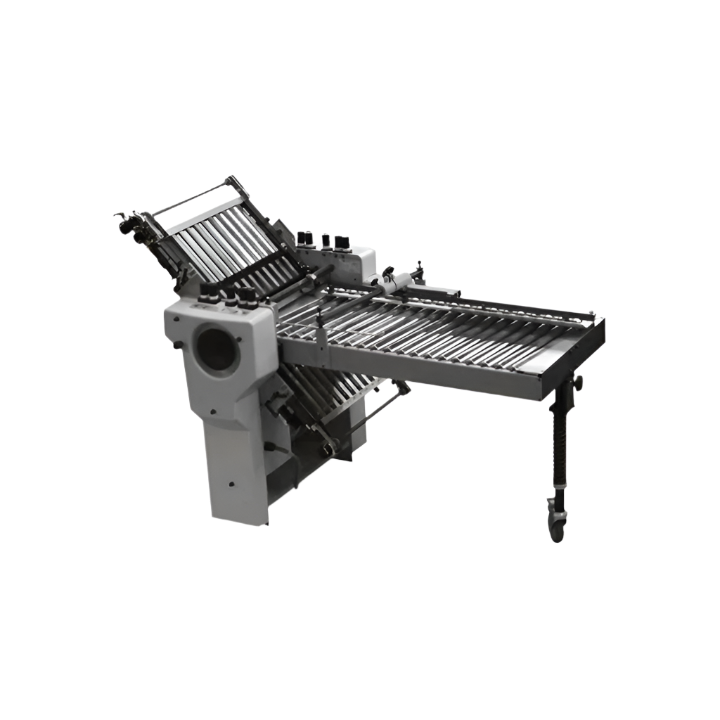

Baum 20-3 16 Page 3rd Station Folder
Mid-State Litho, an authorized Baumfolder dealer, sells and services the Baum 20 Series 16-page 3rd station folder. It adds right-angle cross, roll, and accordion folds to your existing 20 Series line. Michigan service, quote on request.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The BAUM 20 16-Page 3rd Station Folder expands the folding capabilities of the BAUM 20 1st and 2nd station fold units, enabling additional right-angle cross folds, complex roll folds, and accordion folds. Designed for high-volume production, this advanced folding unit enhances flexibility and efficiency for commercial printing, direct mail, and specialty finishing applications.
Key Features
đź”· BAUMQuick Paperless Roller Gapsets: Quick and precise roller pressure adjustments with no need for paper strips.
đź”· Micro-Adjustment Fold Plates: Fine-tune fold lengths with macro and micro adjustments, scaled inch belts, and metric digital readouts.
đź”· 1-1/8 Inch Removable Slitter Shafts: Allows for easy maintenance and adjustments.
đź”· Quiet-Positive Helical Gear Drive: Provides smooth and reliable operation with reduced noise levels.
đź”· Combination Folding Rollers: Ensures consistent, high-precision folding for various paper stocks.
đź”· Mobile Design: Wheels and leveling pads for effortless transport and secure positioning.
đź”· Automatic Lubrication Canister: Provides continuous lubrication for extended machine life.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 20.5” x 20.5” (52 x 52 cm) |
| Min Sheet Size | 4” x 6” (10.16 x 15.24 cm) |
| Max Folder Speed | 8,200 inches per minute (208.3 m/min) |
| Electrical Options | 220V / 3-Phase / 60 Hz, 220V / 1-Phase / 60 Hz, 380-415V / 3-Phase / 50 Hz |
Optional Enhancements
âś” Independent Operation Adapter Boxes: Allows inline integration with inkjet systems, creasers, and forms cutters.
âś” Additional Fold Plate Configurations: Expands folding versatility with custom plate options.
âś” High-Capacity Stacking Table: Increases output capacity for continuous production.
âś” Perforation & Scoring Attachments: Enables additional finishing functions in-line with folding.
Optimized Applications
📄 Right-Angle Cross Folds – Expands production capabilities with additional fold configurations.
📬 Direct Mail Processing – Handles complex fold patterns for mailers and marketing materials.
📖 Manuals & Catalogs – Processes instructional materials, technical guides, and booklets.
📚 Commercial Printing – Ideal for brochures, inserts, and specialty marketing pieces.
How the Baum 20 Series fold stations build up
The Baum 20 Series is a modular floor folder. You start with a feed and 1st fold unit (pile-feed or continuous-feed), add a 2nd station for right-angle folds, and add this 3rd station when jobs need higher page counts and extra cross, roll, or accordion folds. Match the station to the job: parallel folds run on the base unit, right-angle signatures need the Baum 20 Series 2nd station folder, and 16-page work needs this 3rd station. Mid-State Litho carries the Baum 20 pile-feed folder, the Baum 20-CFF continuous feed folder, the 20 Series 2nd station, and the inline 20 INF, so we can spec the exact station set your run needs.
About Baumfolder
Baumfolder builds tabletop and floor-model paper folders for commercial print and bindery work. Mid-State Litho carries the tabletop 714 line, including the 714XLT UltraFold and the Baum 714XA AutoFold tabletop folder, and the floor-model 20 Series, including the 20 Series pile-feed and continuous-feed units. See more paper folders for the full line. The 20 Series is modular: a base fold unit, a 2nd station for right-angle folds, and this 3rd station for added cross, roll, and accordion folds.
Why buy from Mid-State Litho
Mid-State Litho is an authorized Baumfolder dealer and has sold and serviced bindery and finishing equipment since 1984. Our factory-trained technicians cover Michigan and the Great Lakes region, so the same people who install your 20 Series line are the ones who service it. We stock parts, sharpen knives in house, and can fold your stock before you buy. Financing and leasing are available, and trade-ins on your current folder are welcome; ask about used and trade-in equipment as well. Call for a freight quote or to schedule a demo, and see service and support for coverage details.
Frequently asked questions
What does the Baum 20 Series 3rd station folder do?
It adds a 16-page fold station to a Baum 20 Series 1st and 2nd station line, giving you additional right-angle cross folds, roll folds, and accordion folds for higher page counts.
Does it work on its own?
No. The 3rd station is an add-on unit. It extends an existing Baum 20 Series fold line and is not a standalone folder.
What sheet sizes and speed does it handle?
Maximum sheet 20.5 in x 20.5 in (52 x 52 cm), minimum 4 in x 6 in, at up to 8,200 inches per minute.
What power does it need?
It runs on 220V/3-phase/60Hz, 220V/1-phase/60Hz, or 380-415V/3-phase/50Hz. Confirm plant power before install.
How do I get a price?
This is a configured production unit sold by quote. Request a quote and Mid-State Litho will spec it against your current 20 Series line.
