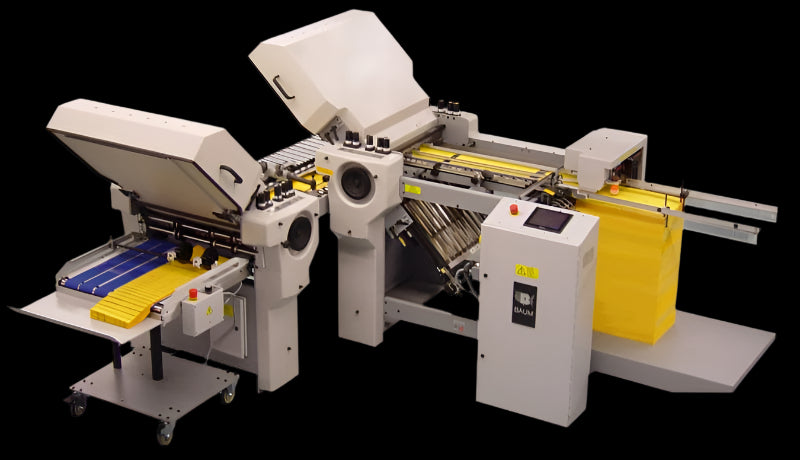

BAUM 20 PFF Pile Feed Folder

The BAUM 20 PFF Pile Feed Folder is a production-tier pile-feed paper folder built for high-volume, continuous folding. Where a tabletop friction-feed folder asks an operator to hand-feed stacks, the 20 PFF loads a full pile and runs hands-off, so your team can stage the next job while this one finishes. It is part of the Baumfolder 20 series, the commercial paper folder line that steps up from the tabletop 714 machines into true production folding.

This is the folder reach for when manual feeding has become the bottleneck. A non-contact pile height sensor keeps feeding consistent as the pile drops, a 7-inch touchscreen control panel puts setup and job recall a tap away, and a variable batch counter sorts runs for postal and direct-mail work. The result is a commercial folding machine that holds register across long runs without an operator riding the feeder.

Baumfolder builds the 20 PFF in the USA, and Mid-State Litho sells, installs, and services the full Baumfolder line. If you are weighing a pile-feed production folding machine against an upgraded tabletop unit, the buyer's guide below maps the lineup by feed type and volume, and our team can help you size the right machine for your shop.

Baumfolder Paper Folders

Baumfolder is a long-running U.S. manufacturer of commercial paper folders, and Mid-State Litho is an authorized Baumfolder dealer. The Baumfolder range runs from compact tabletop friction-feed folders for shorter runs up through the 20 series pile-feed and inline production machines like the one on this page. Across the line you get the same control philosophy: a touchscreen interface, programmable fold memory, and paperless roller setup that gets jobs running quickly. Buying from an authorized dealer means the machine arrives configured for your work and is backed by factory-trained install and service.

Which Baumfolder folder fits your volume?

Choosing a Baumfolder comes down to feed type, run volume, and whether you need the folder inline with other finishing. Use this ladder to place the 20 PFF against the rest of the line.

• Tabletop, friction-feed (lower volume): the Baumfolder 714 family hand-feeds stacks and suits shorter runs and lighter duty. It includes the 714XLT UltraFold, the 714H-8 PG, the 714XA AutoFold, and the 714XLTF-2-P-1.
• 20 series, pile-feed (production): the 20 PFF Pile Feed Folder on this page loads a full pile and folds continuously for high-volume work. The 20 Right-Angle 8-page adds a second station for more complex folds, and the 20 INF Inline integrates folding into an inline finishing workflow.

Position the 20 PFF as the step up from the 714 tabletops: it is the move from hand-feeding into hands-off production folding. If you run inline finishing, look at the 20 INF; if you fold offline in batches, the 20 PFF is the workhorse.

Why buy your Baumfolder from Mid-State Litho

Mid-State Litho has been an authorized Baumfolder dealer since 1984. We do more than ship a crate: our factory-trained technicians handle install, operator training, ongoing service, and genuine Baumfolder parts. We support customers across the Great Lakes region, and we offer financing and leasing so a production folder fits your budget. When you have questions before or after the sale, you reach a real team that knows the equipment. Contact us to talk through your folding requirements.

Key features

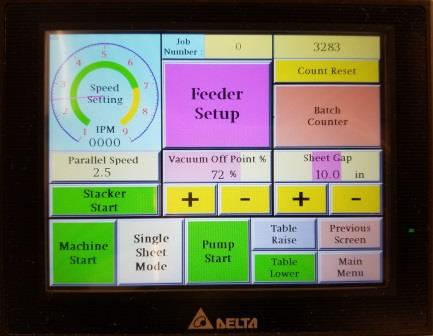

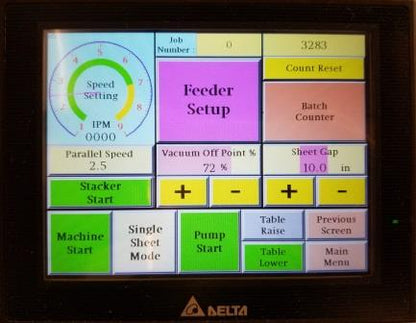

Touchscreen control panel: a 7-inch color HMI interface with pictographs for easy operation, job monitoring, and quick function access.
Baum iFold tutorial system: 30 pre-programmed folds, 80-job memory storage, and an interactive tutorial for setup, operation, and troubleshooting.
BaumQuick paperless roller gapsets: fast, accurate roller pressure setup without paper shims.
Extended mobile delivery stacker: height-adjustable with a large stacking capacity and four rugged casters for easy mobility.
Batch counter with variable batch function: custom batch counting, ideal for postal sorting and variable job runs.
Micro-adjustment fold plates: precision macro and micro adjustments with scaled inch belts and metric digital readouts.
Dual front blow bar: reliable, consistent sheet feeding to minimize misfeeds.
1-1/8 inch removable slitter shafts: quick, easy removal for setup and maintenance.
Quiet-positive helical gear drive: smooth, quiet operation for reduced noise and increased efficiency.
Non-contact pile height sensor: automatically adjusts pile height for consistent feeding.
Combination folding rollers: precise, consistent folds across various paper stocks.
Total counter system: tracks total sheets, resettable counts, lifetime sheet counts, and job hours.
Open access feed table: easy accessibility for quick setup and troubleshooting.
Real-time diagnostic message display: provides troubleshooting alerts and operational diagnostics.

Specifications

• Max sheet size: 20.5 in x 33 in (52 x 84 cm)
• Min sheet size: 4 in x 6 in (10.16 x 15.24 cm)
• Max folder speed: 8,200 inches per minute (208.3 m/min)
• Electrical options: 220V / 3-Phase / 60 Hz or 380-415V / 3-Phase / 50 Hz

Optional enhancements

High-capacity sheet feeder: increases load capacity for longer production runs.
Perforation and scoring attachments: expands functionality for perforated and creased products.
Additional memory upgrade: enhances job storage for quick recall of past setups.
Extended stack height delivery table: maximizes stacking efficiency for bulk production.

Optimized applications

• Commercial printing: precision folding for brochures, flyers, and marketing materials.
• Direct mail processing: handles mass mail campaigns with speed and accuracy.
• Manuals and catalogs: produces neatly folded instructional materials.
• Financial and legal documents: ensures consistent folds for confidential materials.

Frequently asked questions

What is a pile-feed folder versus a tabletop folder?

A tabletop folder is friction-fed, meaning an operator hand-feeds smaller stacks of sheets through the machine. A pile-feed folder like the 20 PFF loads a full pile and feeds it continuously, so it runs hands-off and is built for higher-volume, production folding rather than short runs.

How does the 20 PFF differ from the 714 series?

The 714 series is Baumfolder's tabletop friction-feed line for lower-volume work. The 20 PFF is the production step up: it pile-feeds for continuous folding, which is why it sits in the 20 series alongside the 20 INF inline and the 20 right-angle 8-page folder.

Is the 20 PFF meant for high-volume production folding?

Yes. The 20 PFF is a production-tier pile-feed machine designed for high-volume, continuous folding. Its non-contact pile height sensor and variable batch counter keep long runs consistent and sorted, which makes it a fit for commercial print and direct-mail shops.

Do you install and service Baumfolder equipment?

Yes. Mid-State Litho is an authorized Baumfolder dealer with factory-trained technicians. We handle install, operator training, ongoing service, and genuine Baumfolder parts across the Great Lakes region.

Is financing available?

Yes. We offer financing and leasing so a production folder fits your budget. Ask our team about current terms when you request a quote.
