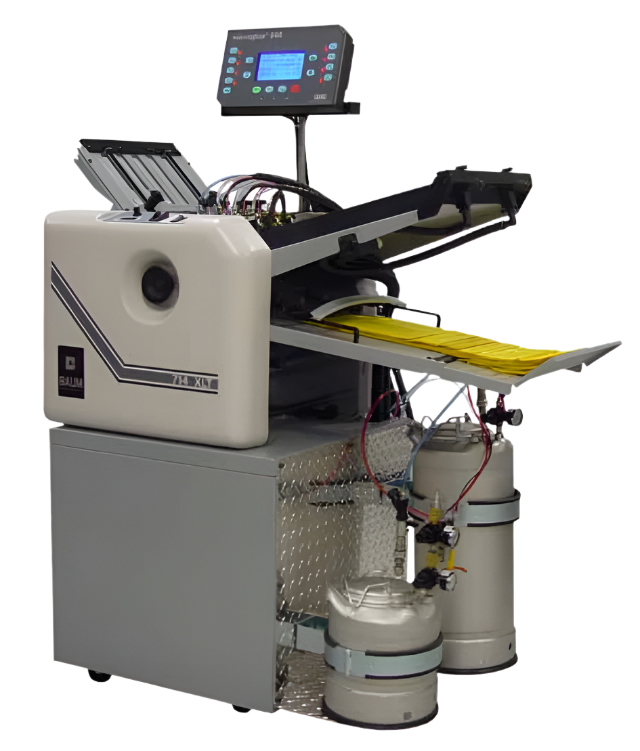

BAUM 714XLT Microgluer Folder Gluer
Enhance mailing efficiency with the 714XLT-2C, 4C, 4Z & 8Z Gluing Systems. Fold, glue, and perforate in one pass for secure, high-speed self-mailer production.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Baum 714XLT-2C, 4C, 4Z & 8Z Gluing Systems
The Baum 714XLT Gluing Systems integrate the Baum 714XLT Ultrafold air/vacuum feed folder with the GMS Microglue control and glue head system, providing a compact, efficient, and cost-effective self-mailer solution. These high-performance folder/gluer machines offer precise folding and gluing capabilities, reducing labor and increasing production efficiency.
Key Features
🔹 Compact Folding & Gluing Solution – Saves floor space compared to traditional self-mailer production systems.
🔹 Multiple Folding & Gluing Options – Supports Half-Fold, Letter-Fold, Z-Fold, and Double Parallel-Fold self-mailers.
🔹 High-Speed Folding – Capable of processing up to 35,000 sheets per hour (8.5” x 11” size).
🔹 Integrated Microglue System – Uses GMS HP Series Glue Heads for precise gluing patterns.
🔹 Adjustable Glue & Perforation – Can apply glue lines, glue dots, and perforation lines for easy tear-off sections.
🔹 Minimal Maintenance – Sealed ball bearings eliminate the need for lubrication.
🔹 Rack & Pinion Side Guides – Maintain accurate sheet registration for precise folding.
🔹 Space-Saving & Operator-Friendly Design – Load and unload paper from the same end to reduce movement and fatigue.
🔹 Mobile Configuration – Mounted on a rolling cart with built-in glue tanks and purge system for easy cleaning.
🔹 Customizable Glue Placement – Different models allow for edge gluing, interior panel dots, and multi-panel adhesion.
Folding & Gluing Capabilities
| Self-Mailer Type | 714XLT-2C | 714XLT-4C | 714XLT-4Z | 714XLT-8Z |
|---|---|---|---|---|
| Half-Fold (Side Seams Only) | ✅ | ✅ | ✅ | ✅ |
| Half-Fold (Side Seams + Glue Dots) | ❌ | ✅ | ❌ | ✅ |
| Letter-Fold (Side Seams Only) | ✅ | ✅ | ✅ | ✅ |
| Letter-Fold (Side Seams + Glue Dots) | ❌ | ✅ | ❌ | ✅ |
| Z-Fold (Side Seams Only) | ❌ | ❌ | ✅ | ✅ |
| Z-Fold (Side Seams + Glue Dots) | ❌ | ❌ | ❌ | ✅ |
| Double Parallel-Fold (Side Seams Only) | ❌ | ❌ | ✅ | ✅ |
| Double Parallel-Fold (Side Seams + Glue Dots) | ❌ | ❌ | ❌ | ✅ |
🔹 714XLT-2C – Basic model with 2 glue heads for edge gluing (no center glue dots).
🔹 714XLT-4C – Adds 2 glue dots for enhanced security (ideal for sensitive mailing).
🔹 714XLT-4Z – Capable of Z-Fold and Double Parallel-Fold, with glue applied to both sides.
🔹 714XLT-8Z – Most advanced model, featuring full gluing capabilities, including side seams and center glue dots.
Standard Features
🟦 High-Performance Folding System
✔ Air/Vacuum feed, bottom feed Baum 714XLT folder
✔ Handles coated & uncoated paper from 3” x 5” to 14” x 20”
✔ Rack & pinion side guides for precise sheet handling
✔ Fold speeds up to 7,200 inches per minute
🟦 Advanced Gluing System
✔ GMS HP Series Glue Heads with electric purge switch
✔ Self-cleaning nozzle mechanism reduces downtime
✔ Multiple glue viscosity compatibility for various applications
🟦 Perforation Capabilities
✔ Two perforation lines for tear-off sections
✔ Optional third perforation (requires 8-page second station right-angle folder)
🟦 Operator-Friendly Design
✔ Touchscreen control with job memory
✔ Mobile cart with built-in glue tanks & purge system
✔ Quiet, energy-efficient operation
Specifications
| Specification | Details |
|---|---|
| Folder Type | Air/Vacuum feed, bottom feed |
| Max. Sheet Size (Parallel Fold) | 14” x 20” (35.5 x 50.8 cm) |
| Max. Sheet Size (Right-Angle Fold) | 13.5” x 14” (34.2 x 35.5 cm) |
| Min. Sheet Size | 3” x 5” (7.6 x 12.7 cm) |
| Max. Fold Size (#1 or #2 Plate) | 13.5” (34.3 cm) |
| Min. Fold Size | 2.25” (5.7 cm) |
| Max. Paper Weight | 65 lb cover |
| Feeder Pile Height | 2” (5.1 cm) |
| Fold Roll Diameter | 1.5” (3.8 cm) |
| Fold Roll Material | Polyurethane |
| Fold Speed | Up to 7,200 inches per minute |
| Power Requirements | 110 VAC - 60 Hz or 220/1/50 Hz |
⚠ Note: Production speeds for self-mailers depend on glue system efficiency. Expect slightly lower speeds for glued applications compared to non-glued folding.
Download Scoring/Perforating/Slitting Guide Here
Download Installation/Parts Manual Here
Download Set Up Instructions Here
Optimized Applications
📄 Mailing & Direct Mail – Ideal for self-mailers, promotional brochures, and invoices.
🏢 Commercial Print Shops – Enables high-volume, automated folding & gluing.
📦 Corporate & Office Use – Perfect for document sealing & internal communications.
📖 Educational & Nonprofit Organizations – Efficient booklet & letter mailing.
