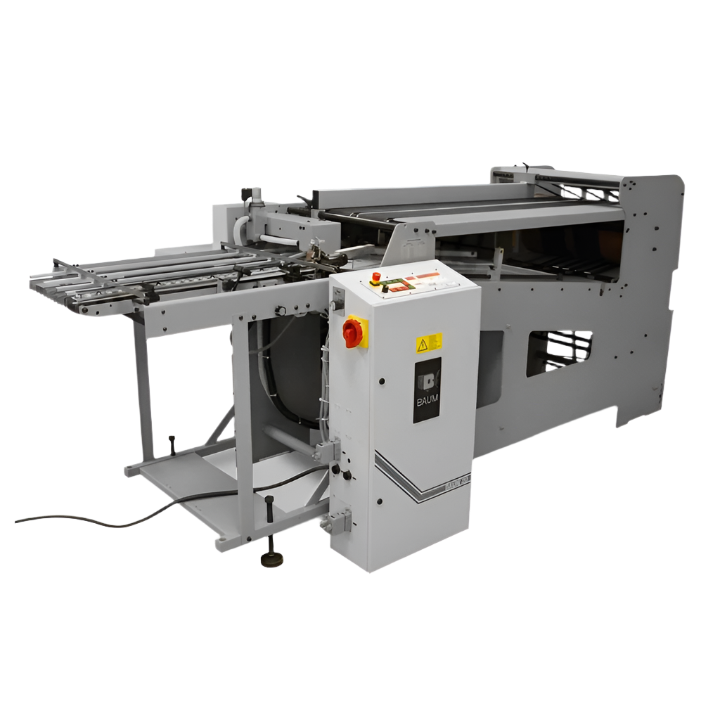

Baum 20 ICF
Independent continuous feeder with precision register. Experience seamless continuous feeding with the Baum 20 ICF Independent Feeder.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Independent Continuous Feeder with Precision Register Table:Â
The Baum 20 ICF is a cutting-edge independent continuous feeder that enables seamless continuous feeding of sheets without interruptions. Equipped with a precision register table, this machine ensures top-notch performance. Its features include the new Baum iFold Tutorial Standard, a built-in Batch Counter with Variable Batch, and a Touch Screen Control Panel with Color Pictographs for intuitive operation. Additionally, it boasts an AC Inverter Drive, Dual Front Blow Bars, and a Double Sheet Detector with Feeder Stop for enhanced efficiency. The Baum 20 ICF comes with a Registration Table with Sheet Guide as standard, along with an Optical Lead Edge Sensor and One-Sheet Test Mode for precision handling.
Baum 20 ICF Features:
- New Baum iFold Tutorial Standard
- New Built-in Batch Counter with Variable Batch
- New Touch Screen Control Panel with Color Pictographs
- Built-in Total Counter
- Diagnostic Message Display
- AC Inverter Drive
- Exclusive Dual Front Blow Bars
- Double Sheet Detector with Feeder Stop and Diagnostic Error Display
- Registration Table with Sheet Guide Standard
- Optical Lead Edge Sensor
- One-Sheet Test Mode
Baum 20 ICF Specifications:
- Max. Sheet Size: 20.5" W x 33" L (52.07 cm x 84 cm)
- Min. Sheet Size: 4" W x 6" L (10.16 cm x 15.24 cm)
- Speed Infinite Variable from 0-8200 in/min (0-203 m/min)
- Electrics: 220/1/60, 220/1/50, 220/3/60, 220/3/50, or 380-415/3/50
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
