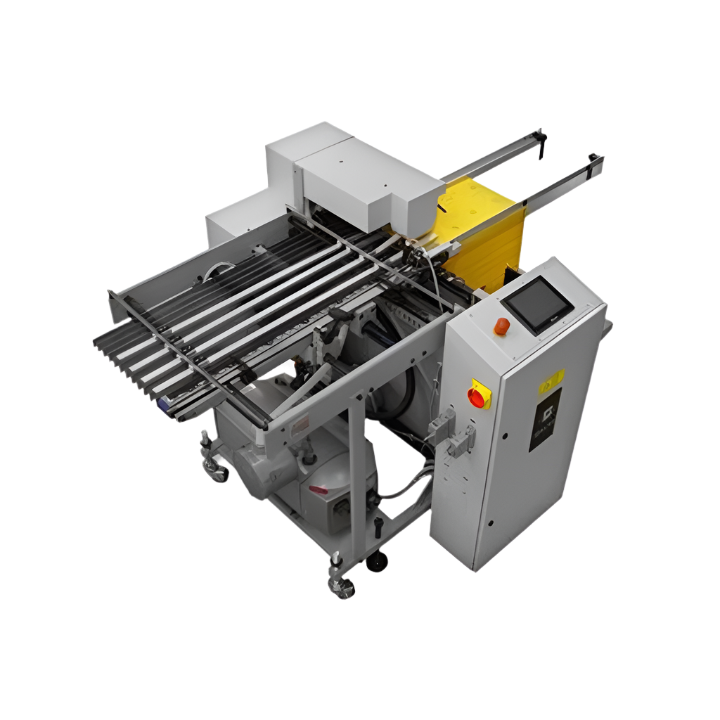

The BAUM 20 IPF Independent Deep Pile Feeder is a high-performance standalone feeder designed for seamless integration with a wide range of finishing equipment. It delivers reliable, precision sheet feeding for UV coaters, laminators, creasing machines, scoring and perforating machines, inkjet bases, die cutters, and more. Built with the proven technology of the BAUM 20 Series, this feeder enhances productivity with advanced controls and automation.
Key Features
🔷 Mobile Design with Heavy-Duty Locking Casters: Effortlessly move and secure the unit in place.
🔷 Side Blow Kit Standard: Provides optimal air distribution for smooth sheet separation and feeding.
🔷 Patented Dual Front Blow Bar System: Ensures consistent and accurate sheet feeding across various media types.
🔷 Registration Table with Sheet Guide: Maintains precise sheet alignment for downstream processing.
🔷 Downline Communication with Exit-Sheet Sensor Option: Enables seamless integration with connected finishing systems.
🔷 Built-in Batch Counter with Variable Batch: Supports automated batch control, including delays or stops at preset quantities.
🔷 Built-in Total Counters: Tracks current job counts and lifetime production for monitoring efficiency.
🔷 Diagnostic Error Messaging: Provides real-time troubleshooting feedback to minimize downtime.
🔷 Double Sheet Detection: Automatically stops the feeder upon detecting double feeds, preventing errors.
🔷 Non-Contact Pile Height Sensor: Maintains consistent sheet height without risking contact damage.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 20.5” W x 33” L (52.07 cm x 84 cm) |
| Min Sheet Size | 4” W x 6” L (10.16 cm x 15.24 cm) |
| Speed Range | 0 to 8,200 inches per minute (203 m/min) |
| Electrical Options | 220V / 1-Phase / 60 Hz, 220V / 1-Phase / 50 Hz |
| Sheet Gap Adjustments | 0.2” to 98” (0.5 cm to 249 cm) |
| Learning Mode | Automatically adjusts for optimal sheet feeding |
| One-Sheet Test Mode | Allows precise calibration before full operation |
Optional Enhancements
✔ High-Capacity Pile Loading: Increases feeding capacity for longer, uninterrupted runs.
✔ Custom Exit Conveyor Configurations: Enables adaptability with different finishing machines.
✔ Advanced Job Memory Storage: Stores frequently used settings for fast setup and repeatability.
✔ Additional Blower Systems: Enhances air separation for difficult-to-feed substrates.
Optimized Applications
🖨 Inkjet Bases – Supports continuous feeding for high-speed inkjet printing.
📑 Scoring & Perforating Machines – Feeds sheets precisely for sharp, accurate creases.
📜 UV Coaters & Laminators – Ensures flawless feeding into finishing systems.
📦 Die Cutting Equipment – Delivers consistent sheet registration for die-cut applications.
🎟 Ticket & Label Production – Handles varied stock weights with ease.
