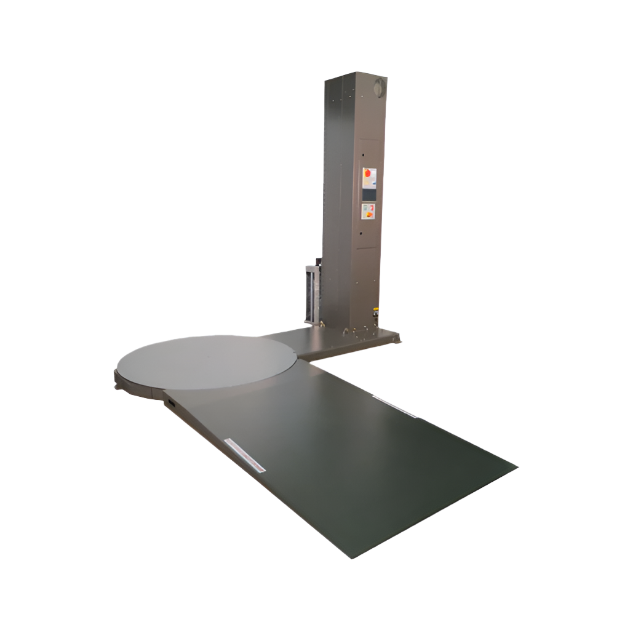

Excel PP-982 Series Semi-Automatic Pallet Stretch Wrappers
The Excel PP-982 Series offers an affordable and efficient solution for semi-automatic pallet wrapping, with high- and low-profile models to suit different warehouse layouts. Featuring a 4,000 lb load capacity, electro-mechanical brake system for 150% film stretch, and intuitive HMI touchscreen controls with programmable memory, the PP-982 Series is ideal for light to mid-volume wrapping needs with precision and ease.
Key Features
🔷 150% electro-mechanical film stretch for reduced film usage
🔷 Touchscreen HMI control panel with 12-program memory
🔷 4,000 lb load capacity with 59" turntable
🔷 Photo eye sensor for automatic height detection
🔷 Heavy-duty chain drive and Delrin roller supports
🔷 High-profile and low-profile base models available
Specifications
| Specification | Detail |
|---|---|
| Production Speed | 30–40 loads per hour |
| Max Load Size | 50" L x 50" W x 85" H |
| Max Load Weight | 4,000 lbs |
| Turntable Size | 59" diameter, 3/8" diamond plate |
| Turntable Drive | 1/2 HP AC, variable 0–12 RPM, chain-driven (ANSI #60) |
| Turntable Support | 18 sets of double Delrin roller assemblies |
| Film Delivery System | Electro-mechanical brake stretch (up to 150%) |
| Carriage Elevator | 1/2 HP variable speed with drive belt |
| Electrical Requirements | 110V, 1 Phase, 15 Amp |
| Dimensions (Overall) | 108" L x 59" W x 102" H |
| Film Capacity | Standard 20” wide commercial stretch film |
| Forklift Portable | Yes |
| Photo Eye | Automatic load height sensing |
| Home Position | Turntable auto-return |
| Warranty | 3-year limited |
| Shipping Weight | 1,800 lbs |
Applications
📦 Semi-automated pallet wrapping for warehouse shipping
📄 Logistics and distribution environments
🛍 Commercial packaging and order fulfillment
🏗 Manufacturing and supply chain preparation
Available Options
📍 72" diameter turntable
📍 Tower extension up to 105"
📍 24" base extension
📍 Load stabilizer (top pressure plate)
📍 Built-in weight scale package
Benefits
✅ Improves load security and reduces film waste
✅ Fast setup with user-friendly HMI touchscreen
✅ Handles consistent loads up to 4,000 lbs
✅ Programmable wrap settings for job repeatability
✅ OSHA-compliant with safety interlocks and emergency stop
