Hydraulic Paper Cutter - High-Performance Cutting Solution

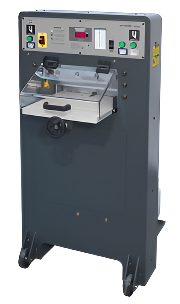

The Challenge Champ 150 stands out as the most robust 15" paper cutter available, ideal for handling high volumes or thick stocks in small formats. Its unique design allows it to effortlessly pass through a 29" doorway without the need to remove the table.
This cutter adheres to the highest safety standards, making it a perfect choice for environments with operators of varying experience levels. Featuring a tilt shield that encloses the cutting area, it ensures maximum safety by preventing unauthorized access.
The Champ series from the renowned Challenge Machinery Company boasts a legacy of over 130 years in manufacturing excellence. These paper cutters are industry staples known for their global export quality. The Champ 150 model leverages this rich heritage and extensive product line knowledge to deliver exceptional value in a compact package.
Champ 150 Paper Cutter Features:
-
Hydraulic powered clamping AND cutting
-
Strongest 15" paper cutter in the market
-
Great for cutting high volumes or thick stocks in small formats
-
Narrow footprint allows machine to roll through 29" doorway
-
"Clamp only" cycle or "clamp and cut" cycle
-
Digital display of cut length setting, in inches or metric
-
Heavy duty welded steel frame
-
Built in "lock out" power switch
-
Plugs into standard 120 Volt, 20 Amp outlet
Champ 150 Paper Cutter Specifications:
General
Maximum Cutting Width |
15" / 38.1cm |
Minimum Cut |
1-3/4" / 44mm |
Maximum Cut Depth |
12" / 30.5cm |
Clamp Opening |
2" / 5.1cm |
Table space in front of knife |
12" / 30.5cm |
Clamping Method |
Hydraulic and Manual |
Backgauge Control |
Manual |
Dimensions
Total Height |
54" 137cm |
Total Width |
28" / 71cm |
Total Depth |
34" / 86cm |
Net Weight (approximate) |
600 lbs / 270 kg |
Shipping Weight (approximate) |
750 lbs / 340 kg |
Electrical
Motor Type |
Standard Motor |
Power |
120 Volt, 60 Hz, One Phase, 12 Amps (Recommended service size: 20 Amps) |
