Challenge Pak-Rak Stock Truck Paper Cart
Challenge Pak-Rak stock truck paper cart, $1,705 standard (11 x 17) or $1,950 XL (14 x 20). Twelve adjustable inward-slant shelves, 500 lb capacity, 5 inch casters, ships assembled. Authorized Challenge Machinery dealer in Michigan. Call 1-800-343-4231.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Pak-Rak stock truck

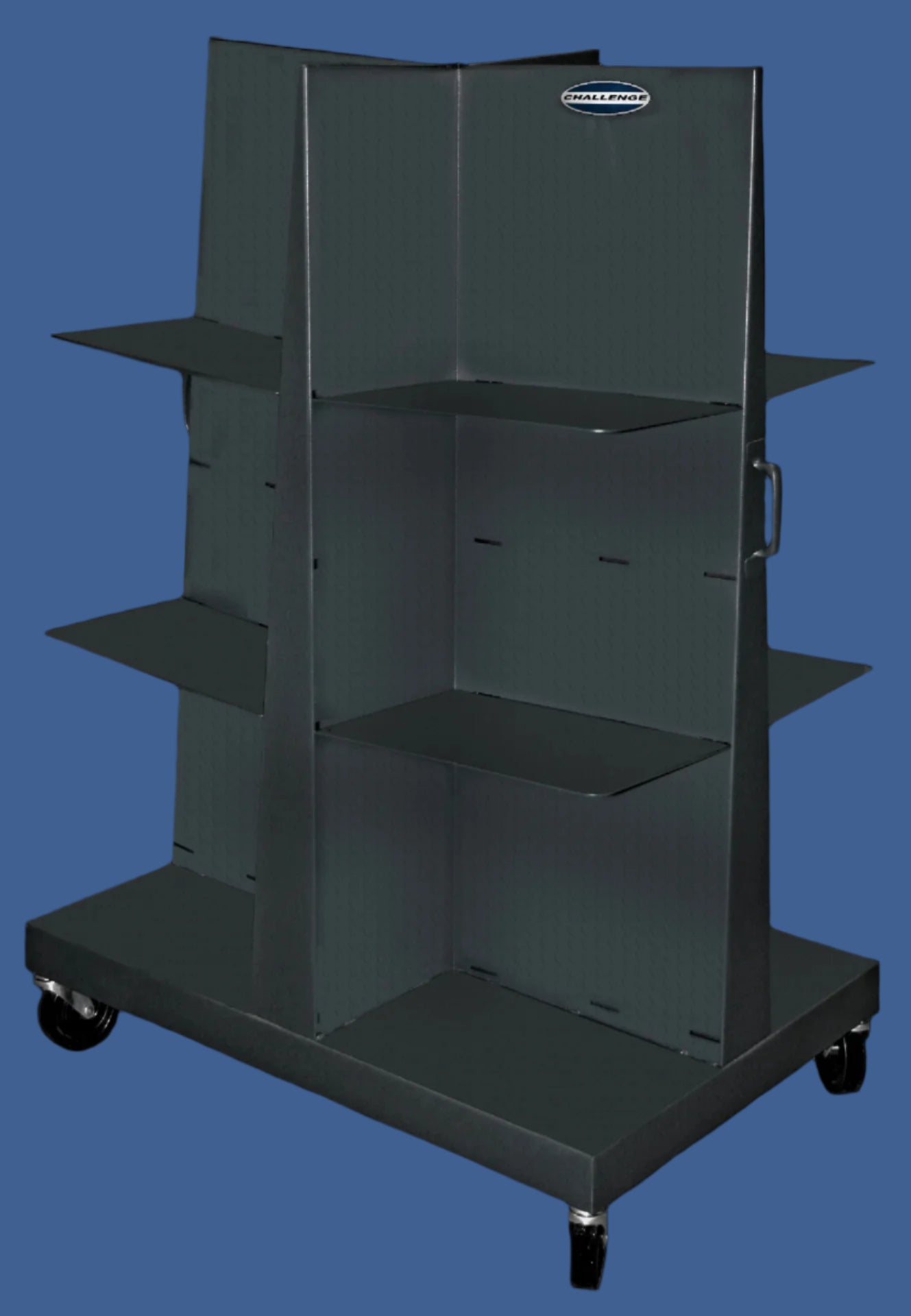

The Challenge Pak-Rak® is a heavy-duty stock truck for moving and staging paper in print shops, binderies, and warehouses. The welded-steel frame, inward-slant shelves, and 5" industrial casters keep stacks tight and square while the cart rolls between stations.
Key features
- Adjustable shelves. Standard fits 11" x 17" (28 x 43 cm) stock; XL handles 14" x 20" (36 x 51 cm).
- Inward-slant shelf design keeps stock square and resists shifting during transport.
- 12 shelves standard, expandable to 16.
- Load rating of 500 lbs (227 kg) overall and 75 lbs (34 kg) per shelf.
- Four 5" hard-rubber casters and dual side handles.
- Welded steel construction; ships fully assembled.
Specifications
| Specification | Standard Pak-Rak | XL Pak-Rak |
|---|---|---|
| Shelf dimensions | 10-3/4" x 16-3/4" (27 x 43 cm) | 14" x 20" (35.6 x 51 cm) |
| Number of shelves | 4 fixed base, 12 adjustable (8 included, 4 optional) | 4 fixed base, 12 adjustable (8 included, 4 optional) |
| Shelf capacity | 75 lbs (34 kg) | 75 lbs (34 kg) |
| Maximum capacity | 500 lbs (227 kg) | 500 lbs (227 kg) |
| Length | 38" (97 cm) | 47" (119 cm) |
| Width | 26" (66 cm) | 34" (86 cm) |
| Height | 52" (132 cm) | 57" (145 cm) |
| Net weight | 170 lbs (77 kg) | 211 lbs (96 kg) |
| Shipping weight | 220 lbs (100 kg) | 270 lbs (123 kg) |
Specs typical; allow minor variance due to production tolerances.
Applications
- Print and bindery: staging for printed sheets, folded signatures, and booklets.
- Warehousing and packaging: pick/pack lanes and inventory buffers.
- Production and assembly: keeps work-in-process materials square, visible, and within reach.
Available options
- XL size for stock up to 14" x 20".
- Shelf expansion kit adds 4 adjustable shelves (16 maximum).
Benefits
- Tight, square stacks reduce corner dings and edge drift between steps.
- Industrial casters roll under load, which eases operator strain.
- Adjustable shelves speed changeovers across job sizes.
- Arrives fully assembled and goes straight onto the floor.
Mid-State Litho is an authorized dealer for Challenge Machinery, and the Pak-Rak sits alongside the rest of that line. Shops moving short stacks between stations often pair it with the smaller Handy Cart, while a full bindery floor buys it as part of a wider paper handling equipment set. The carts feed the same machines we sell: Challenge paper drills, the Challenge Handy-Jog, and the guillotine paper cutters that squared the stack in the first place. Ask about financing if you are buying more than one, and request a freight quote with your zip code before you order, since both sizes ship by LTL freight.
Common questions about the Pak-Rak stock truck
What is the difference between the standard and XL Pak-Rak?
Shelf size. The standard holds stock up to 10-3/4 by 16-3/4 inches and the XL holds up to 14 by 20 inches. The XL is also nine inches longer, eight inches wider and five inches taller, so check your aisle width before ordering. Both carry 500 lb total and 75 lb per shelf.
How many shelves does it come with?
Four fixed base shelves plus eight adjustable shelves, twelve in total. Four more adjustable shelves are available as an expansion, taking it to sixteen.
Does it arrive assembled?
Yes. Both sizes ship fully assembled on a pallet and roll off ready to load.
How does it ship and what does delivery cost?
By LTL freight. Shipping weight is 220 lb for the standard and 270 lb for the XL. Call 1-800-343-4231 with your zip code for a freight quote, and tell us if the delivery point needs a lift gate.
Why the inward slant on the shelves?
The shelves tip toward the frame, so a stack settles square against the back rather than drifting toward the open edge while the cart moves. That is what keeps corners from getting dinged between the press and the cutter.
