Challenge EH-3 Multiple-Spindle Drill
Challenge EH-3 three-spindle hydraulic paper drill. 2-1/2 inch capacity, drills 1, 2 or 3 holes. Authorized Challenge dealer for about 30 years, based in Michigan.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Challenge EH-3 multiple-spindle drill. A multiple-spindle Challenge drill for higher multi-hole production than a single JF.
Overview · Specifications · Why Mid-State Litho · Related · Request a quote
Overview
The EH-3 multi-spindle drill is for shops that run multi-hole patterns every day and need more production than a single-spindle JF. Confirm spindle count and pattern against your jobs.

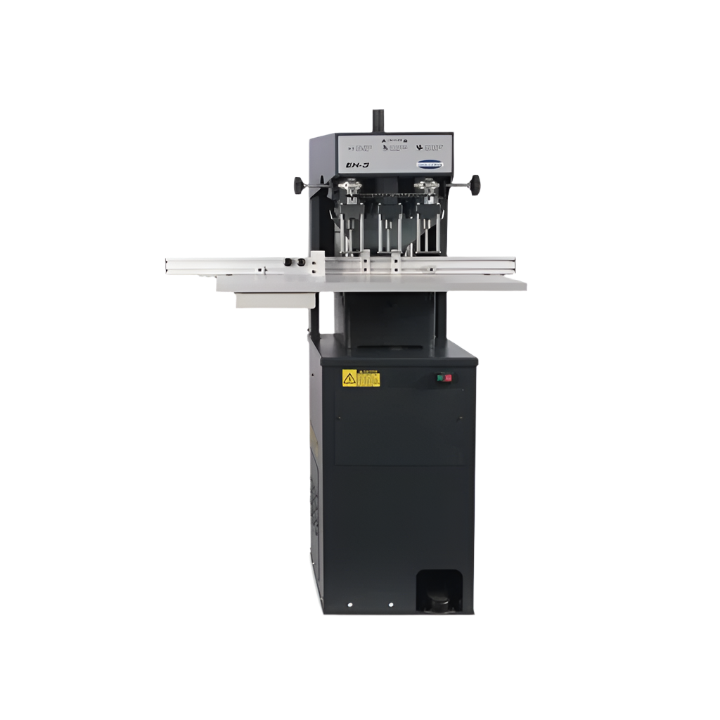

The Challenge EH-3 is a three-spindle hydraulic paper drill. Challenge calls it the original multi-spindle drill, in production since 1961.
It has steel and cast-iron construction, a hydraulic drive, and fast head adjustments for high-volume drilling.
The EH-3 drills accurate, clean holes with less operator fatigue.
Challenge Machinery builds this equipment in Norton Shores, Michigan. Mid-State Litho is the authorized Michigan dealer (about 30 years).
Key features
- Multiple-spindle production drilling
- Higher multi-hole throughput than single-spindle
- Challenge platform
- Integrator pattern and tooling support
Specifications
| Specification | Details |
|---|---|
| Speed | Up to 18 strokes/min, adjustable |
| Electrical | 208 V, 18 A or 230 V, 17 A; single phase, 60 Hz; 30 A service recommended |
| Motor | 1/2 hp hydraulic pump, 1 hp spindle motor |
| Overall height | 59.25 in (1,505 mm) |
| Table height | 37 in (940 mm) |
| Footprint | 36 x 41.5 in (914 x 1,054 mm) floor space |
| Net weight | 520 lb (236 kg) |
| Shipping weight | 570 lb (259 kg) |
| Country of origin | USA |
| Options | Auto-trip side guide; 230 V 50 Hz motor |
| Drill heads | 3 |
| Drill sizes (2 in capacity) | 1/8 to 1/2 in (3 to 13 mm), 13 sizes |
| Drill sizes (2.5 in capacity) | 1/4 to 1/2 in (6 to 13 mm), 4 sizes |
| Range between drills | 2.75 to 4.5 in (70 to 114 mm) |
| Range between outside drills | 5.5 to 9 in (140 to 229 mm) |

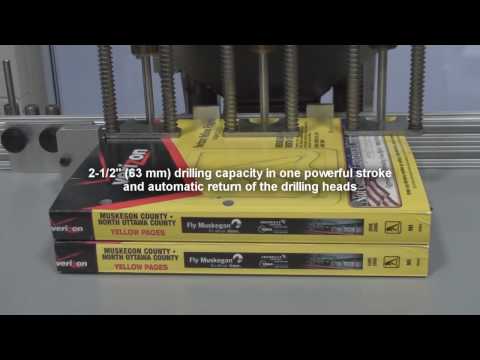

| Maximum drilling capacity | 2.5 in (63 mm) |
| Backgauge adjustment | 0 to 4.5 in (0 to 114 mm) |
| Vertical adjustment of individual heads | 0.25 in (6 mm) |
| Left drill to side guide | 0 to 14.5 in (0 to 368 mm) |
| Table size | 19.5 x 31.5 in (495 x 800 mm) |
Specifications from challengemachinery.com (EH-3 page) and the Challenge EH-3 brochure (09/2018). Verified 2026-11-07. Specs can vary by configuration and options. Confirm against the factory sheet for the unit you order.
Two-Hand Control model (CMC-391-11D-2H, 208/230V 1-phase): backgauge, contact us.
Specs can vary by configuration and options. Confirm against the factory sheet for the serial and options you order.
