ColorCut LC330 Automatic Label Cutter
ColorCut LC330 Automatic Label Cutter
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

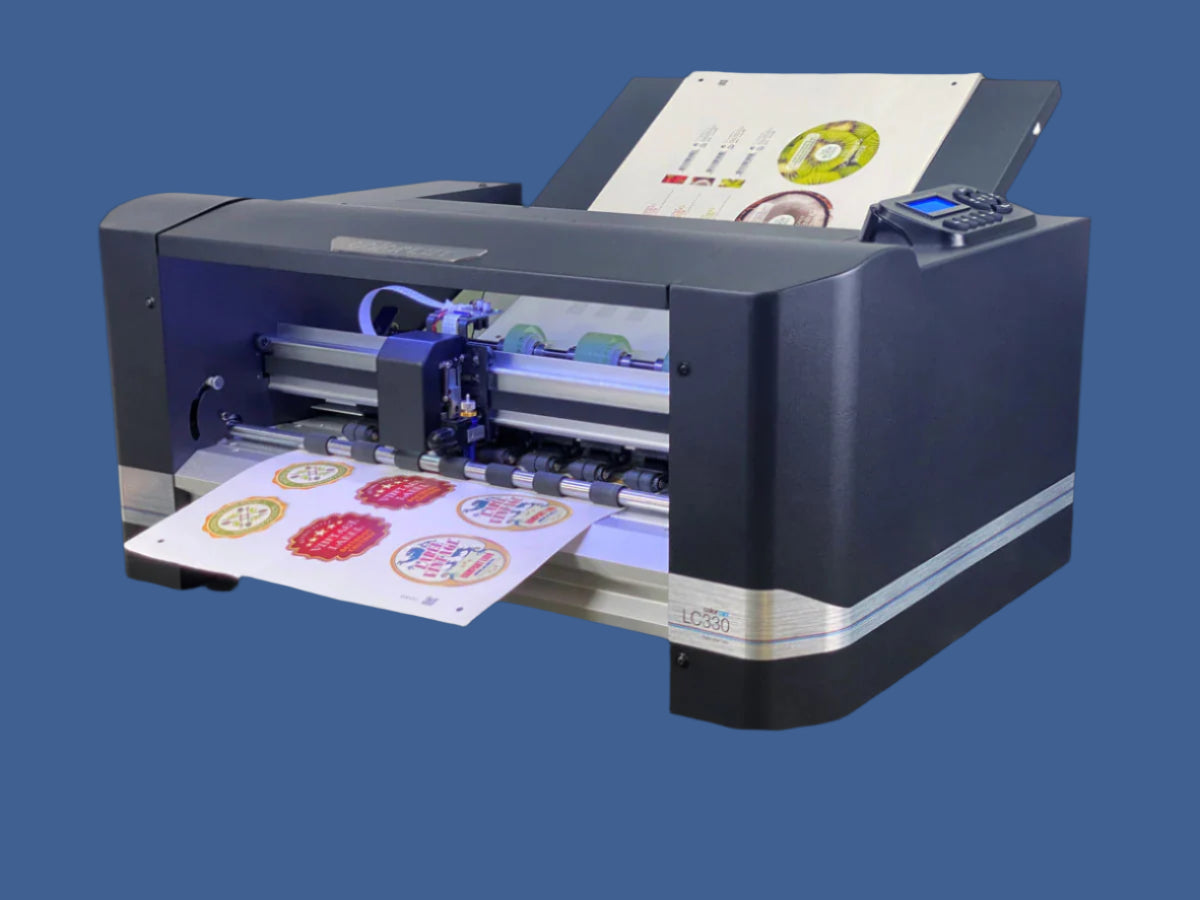

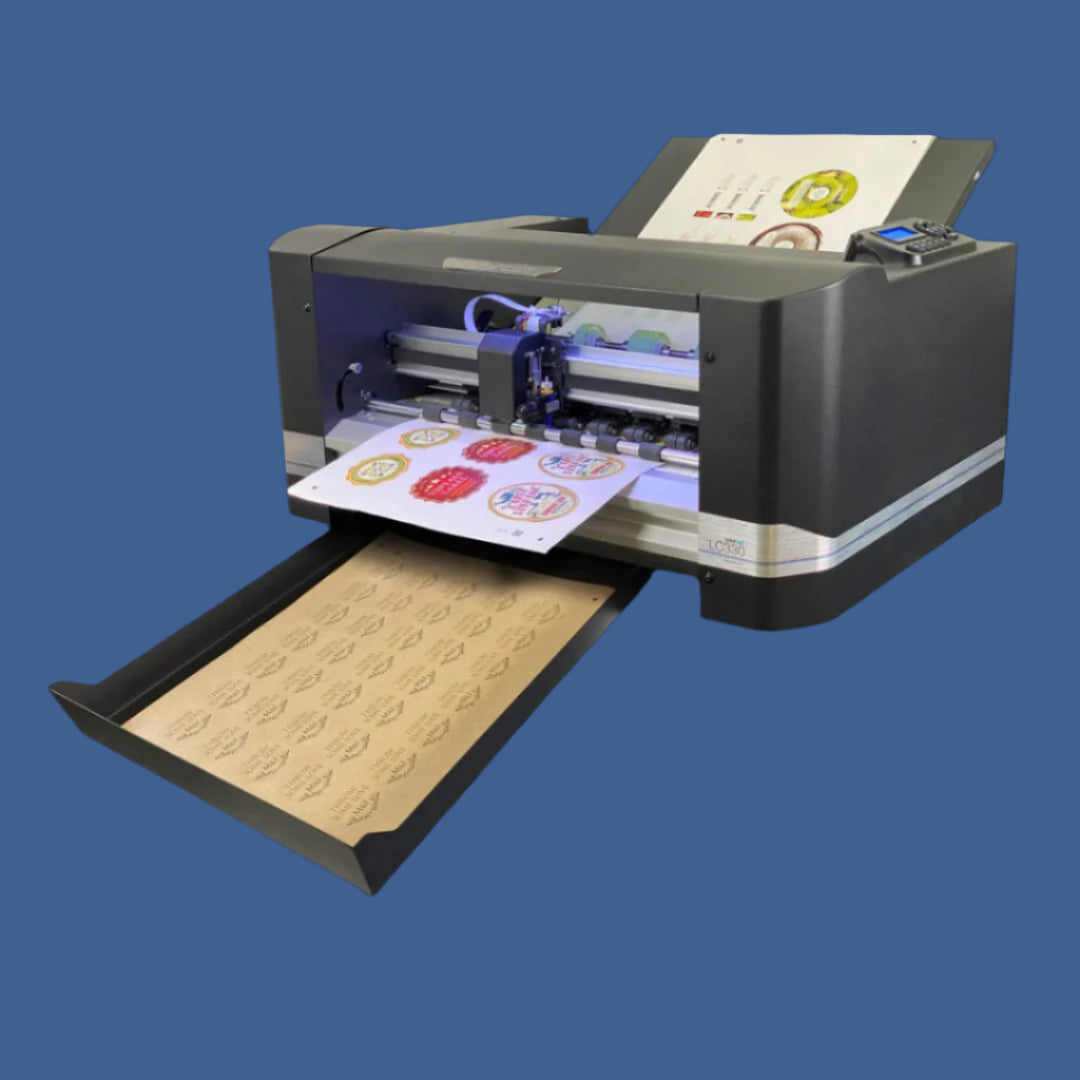

The Intec ColorCut LC330 is a compact, high-speed desktop cutter designed for precision sheet label cutting in digital print production. Ideal for on-demand label creation, the LC330 eliminates the need for dies, reducing costs while offering unmatched cutting accuracy.
Key Features
🔷 High-Speed Digital Cutting – Processes labels at speeds of up to 800mm/sec for efficient production.
🔷 Die-Free Workflow – Eliminates the need for costly dies with on-demand digital cutting.
🔷 Dual Grip Feed System – Maximizes material usage by allowing cuts closer to media edges.
🔷 QR Code Job Recognition – Automates batch processing by retrieving the correct cut files for each job.
🔷 Automatic Feeder/Stacker – Holds up to 120 sheets, ensuring continuous operation.
🔷 SmartMark Registration System – Features CCD vision technology for precise cut alignment.
🔷 Flexible Media Handling – Supports media sizes from 150 x 190mm to 330 x 483mm and weights up to 350gsm.
System Specifications
| Specification | Details |
|---|---|
| Max Media Size | 330 x 483mm |
| Min Media Size | 150 x 190mm |
| Media Thickness | 140gsm (0.14mm) – 350gsm (0.35mm) |
| Auto-Sheet Capacity | Up to 120 sheets |
| Max Speed | 800mm/sec |
| Max Cutting Force | 500gf |
| Registration System | Vision3 CCD ARMS 8 for precision alignment |
| Cut Position Accuracy | +/- 100 microns |
| Compatible Software | Adobe Illustrator® (CS6 – CC2024), CorelDRAW® (X8 – 2024) |
| Power Supply | 100-240V AC, 150W, 4.0A |
| Weight (Unpacked) | 31kg |
Optimized Applications
- Label Production – Cuts custom labels in any shape or size with digital precision.
- Digital Print Finishing – Ideal for print shops needing on-demand label cutting.
- Promotional Materials – Produces marketing stickers, decals, and custom branding elements.
Optional Enhancements
✔ Additional Blade Options – Supports 30°, 45°, and 60° cutting blades for various materials.
✔ ColorCut Pro Software – Standalone job server enables offline job cutting for increased efficiency.
✔ Mac & PC Compatibility – Seamless plugin support for Adobe Illustrator® (Mac & PC) and CorelDRAW® (PC).
