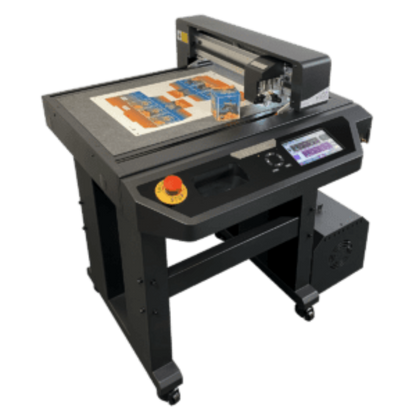

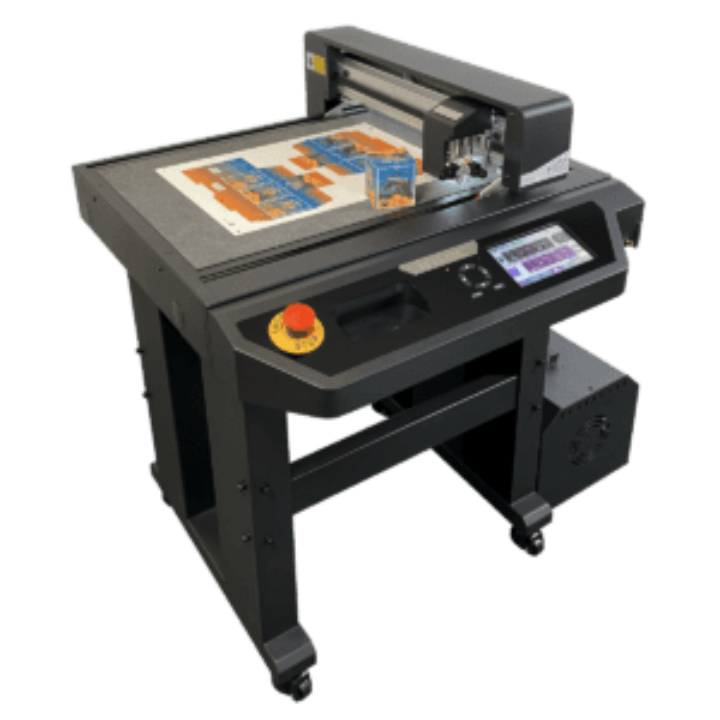

Intec ColorCut FB580 Digital Flatbed Cutter
Intec ColorCut FB580 SRA3 digital flatbed cutter and creaser. Drag blade plus creasing tool, Vision3 camera with QR job recall, 400W vacuum bed. ColorCut Pro 5 software included.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Digital-die flatbed cutter & creaser
The FB580 is a compact, dual-tool flatbed cutting and creasing system for short-run packaging, POS, and custom-shaped print. It has a 400W vacuum hold-down and up to 1.2 kg of tool pressure, which covers kiss cuts, perforations, contour cuts, and deep creases. It takes SRA3 media, includes ColorCut Pro software and QR job automation, and runs standalone from USB, so it works as a complete finishing system for short runs and prototyping.
Key features
- Dual tool head: drag blade plus ball creaser
- QR code automation with instant cut file retrieval
- 7" touchscreen with standalone USB job loading
- 1.2 kg tool pressure with up to 600 micron cutting depth
- ColorCut Pro 5 software included (PC/Mac plug-ins)
- Integrated vacuum bed with 400W hold-down system
Specifications
| Specification | Detail |
|---|---|
| Max Media Area | 440 x 580 mm |
| Effective Cutting Area | 340 x 480 mm |
| Max Cutting Depth | 600 microns (paper/card), up to 800 microns (soft stock) |
| Tool Pressure | 1.2 kg (1,200 gf) |
| Speed Modes | 750-1,200 mm/sec (HD/Standard/Fast) |
| Supported Media Types | Paper, board, labels, vinyl, synthetics, magnets |
| Tool Types | Drag blade (30°, 45°, 60°), creasing tool, pen tool |
| Registration System | Vision3 camera + 9th Gen ARMS with QR recognition |
| Connectivity | USB, Ethernet LAN |
| Power (Cutter / Vacuum) | 150W (cutter); 400W (vacuum) |
| Dimensions (W x D x H) | 763 x 860 x 1015 mm (30" x 33.85" x 40") |
| Weight | 69 kg (152 lbs) |
Applications
- Short-run packaging and prototypes
- Custom book covers or media folders
- Die-cut marketing pieces and shaped tags
- Kiss-cut sticker sheets, decals, and labels
Available options
- ColorCut Server Station with preloaded software suite
- Second cutting tool holder (for dual blade operation)
- Acoustic muffler for vacuum fan
- QR/Barcode matching system with job library
- USB-only "No Wires" mode for remote job processing
Benefits
- Complete digital finishing system for SRA3 production
- QR automation and the job library shorten setup between jobs
- Camera registration aligns each cut to the printed sheet
- Affordable entry point for custom die-cutting and creasing
- Works with Adobe Illustrator and CorelDRAW workflows
Choose a ColorCut flatbed cutter
The FB580 is the entry model in the Intec ColorCut flatbed line. It has two tools, a drag blade and a creasing tool, and it takes SRA3 sheets.
The ColorCut FB790T takes the same sheet size. It adds an active creasing wheel with 2.5 kg of pressure and a 750W vacuum. Choose it for heavier board and deeper creases.
The ColorCut FB1190T is a four-tool cutter for sheets up to 800 x 1100 mm. The FB9500 Pro T adds an automatic sheet feeder.
For a shared job library, add the ColorCut Pro Server Station. It accepts cut jobs from Mac or PC designers on the same network.
See all digital die cutting machines and the full Intec line.
Delivery, setup and service
The FB580 ships by truck freight with its stand. It weighs about 152 lb.
Mid-State Litho is an Intec dealer in Michigan. We install and train on site in Michigan and the Great Lakes.
See service and support and financing and leasing.
FAQ
What size sheets does the ColorCut FB580 take?
The FB580 takes SRA3 sheets. It cuts paper, board, labels, vinyl, synthetics and magnets up to 600 microns thick.
Does the FB580 crease as well as cut?
Yes. The FB580 has a drag blade and a creasing tool, so it cuts and creases in the same job. Blades come in 30, 45 and 60 degree angles.
How does the FB580 find the cut lines?
The Vision3 camera reads the registration marks on the printed sheet. A QR code on the sheet loads the matching cut file.
What software comes with the FB580?
The FB580 includes ColorCut Pro 5 software with two user licenses and one year of software maintenance. It works with Adobe Illustrator and CorelDRAW.
What is the difference between the FB580 and the FB790T?
Both take SRA3 sheets. The FB790T has an active creasing wheel with 2.5 kg of pressure and a 750W vacuum. The FB580 has a 400W vacuum.
