ColorCut FB1175 Flatbed Cutter
Boost productivity with the FB1175. High-speed, precision cutting and creasing for packaging, POS, labels, and prototypes with dual-tool automation.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications

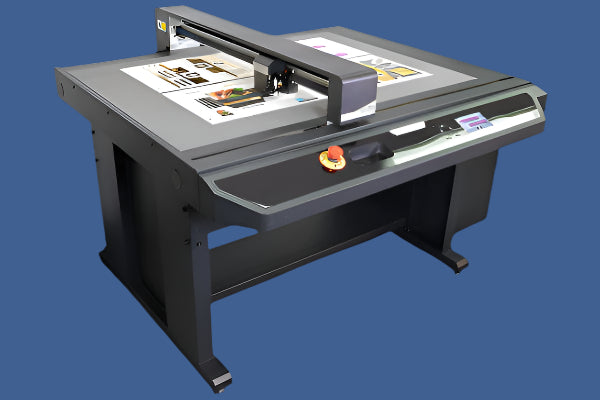

The ColorCut FB1175 is a flatbed cutter for light to medium-run production of two- and three-dimensional items. It is engineered in the UK and cuts packaging, POS displays, kiss-cut labels, and prototypes across a range of media.
Key features and benefits
- Cuts a typical SRA3 sheet in 30 to 60 seconds, and runs single-sheet jobs or batch production of up to 1,000 sheets per day.
- The vacuum hold down table uses a centrifugal air pump to hold sheets flat and stable through the cut.
- An optical sensor or CCD camera reads registration marks, barcodes, and QR codes, aligns the sheet, and retrieves the matching job automatically.
- Several sheets can sit on the cutting mat at once and the machine processes each one in turn.

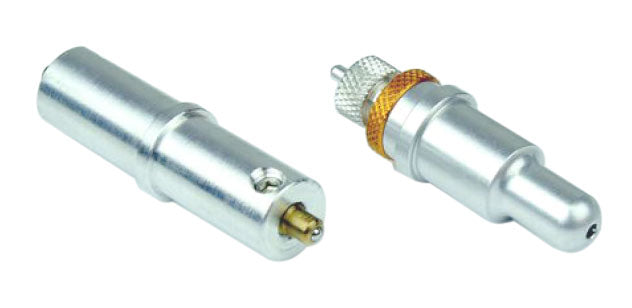

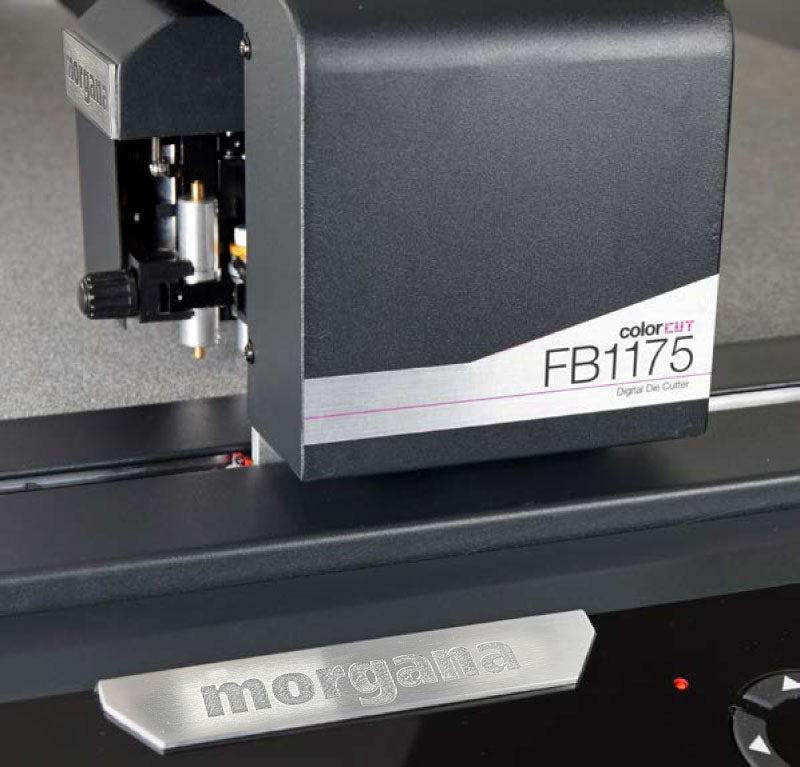

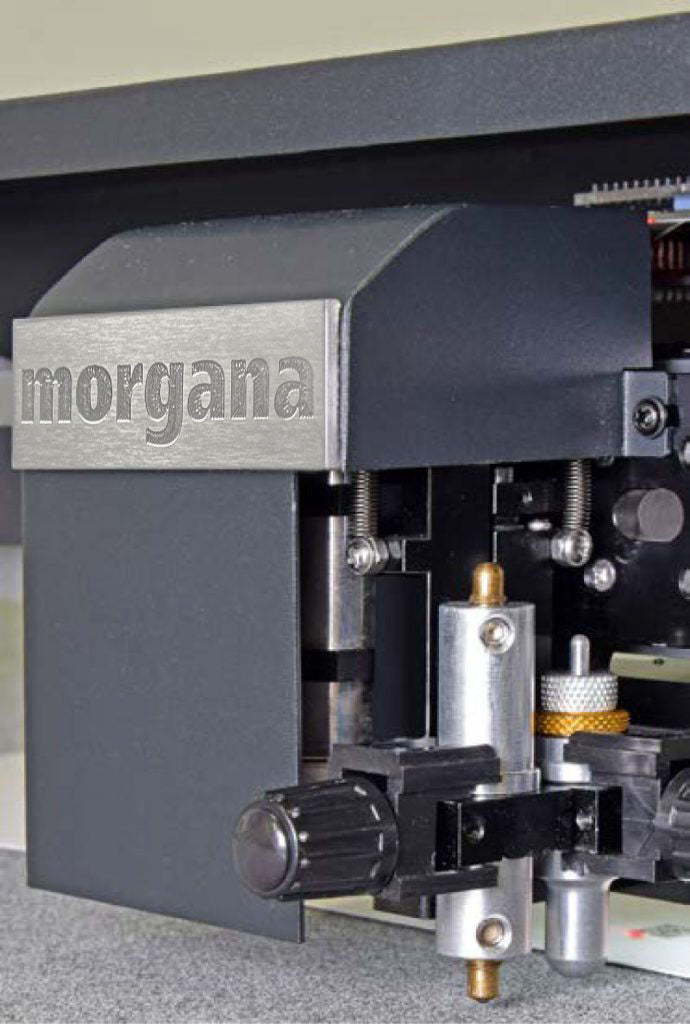

- The dual tool cutting head carries independent cutting and creasing tools, which cuts operation time. The creasing tool has wide and narrow crease options.
- The touch screen control panel works with ColorCut Pro software for job control and automation.
- The included centrifugal air pump holds printed sheets down under high vacuum and shuts off when the job finishes.
Technical specifications
| Specification | Details |
|---|---|
| Maximum Media Area | 800mm x 1100mm |
| Effective Cutting Area | 750mm x 1095mm |
| Width | 1350mm |
| Depth | 1550mm |
| Height | 1010mm |
| Weight | 246kg |
| Maximum Cutting Speed | 1,200mm/s |
| Maximum Cutting Depth | 1000 micron / 800gsm |
| Data Buffer | PC / Mac |
| Tooling | Twin head (1 x cutter, 1 x creaser) |
| Power Supply | Cutter 200W, 3.0A, 110V / 220V |
| Vacuum Pump | 1000W, 110V / 16.5A |
Applications

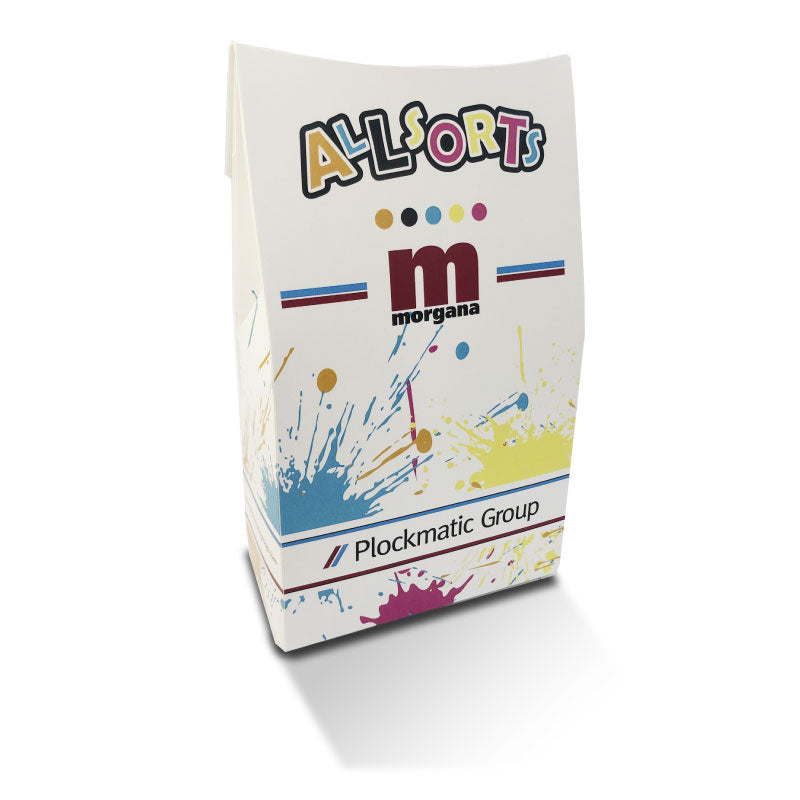

- Cartons and packaging, with crisp creases and sharp cut lines on heavy stock.
- Point-of-sale displays for indoor and outdoor promotional material.
- Kiss-cut labels and decals, including peelable labels, novelty greeting cards, and vinyl decals.
- Prototyping and low-volume custom designs, cut straight from the digital file.
The FB1175 automates cutting and creasing for short-run and custom-cut work. Call 1-800-343-4231 for a quote.
