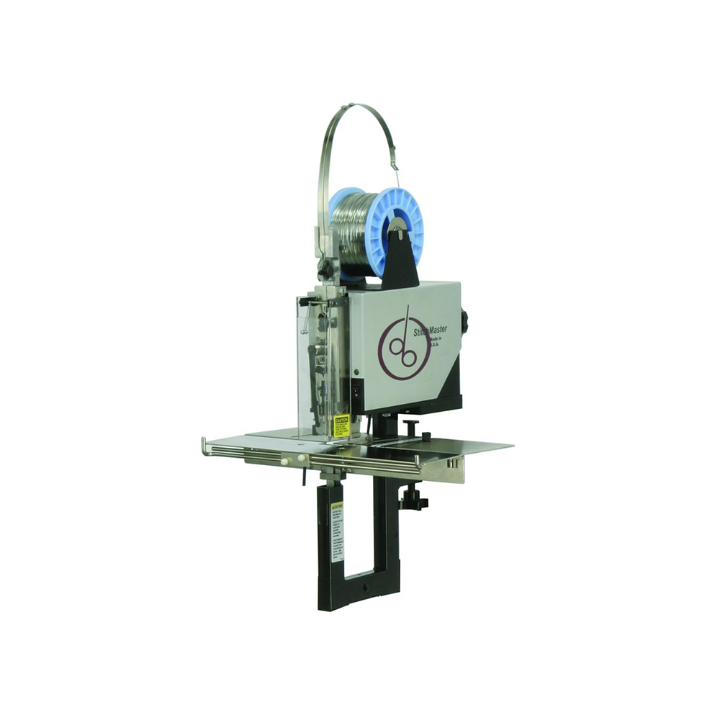

DeLuxe StitchMaster Single Head
The DeLuxe StitchMaster is a compact single-head saddle stitcher for flat, saddle, and corner stitching with one-knob adjustment and 1/4" capacity.
We will quote equipment price, freight to your ZIP, and any install or service needs.
Tax-exempt? Apply once, check out tax-freeRequest a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications

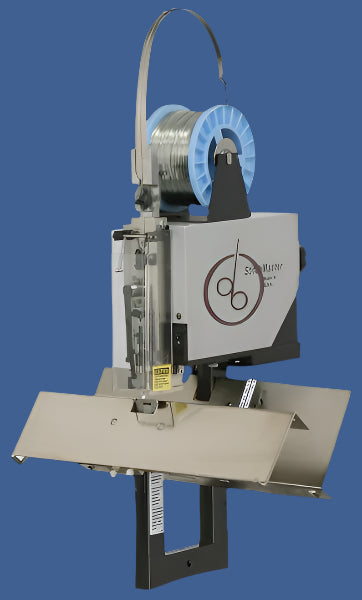

The DeLuxe StitchMaster is a compact, heavy-duty single-head stitcher ideal for flat, saddle, or corner stitching applications. Perfect for short- to mid-run booklet production, this electric model features one-knob adjustment, quiet operation, and support for both round and flat stitching wire. Designed for tabletop use or optional stand mounting, it's a reliable tool for any small shop or finishing station.
Key Features
đź”· Stitches 2 sheets up to 1/4" (6.4 mm) thick
đź”· Flat, saddle, and corner stitching capability
đź”· One-knob adjustment for thickness and centering
🔷 Uses 23–28 gauge round or 21x25 flat wire
đź”· Side stops adjust from 2.5" to 26" for wide-format jobs
đź”· Includes pop-up pins for precise corner stitching
đź”· Operates via foot switch or rear contact trip
đź”· Single or continuous stitching modes
đź”· Optional stand adjusts from 28" to 42" in height
đź”· CE-compliant 230V version available
Specifications
| Specification | Details |
|---|---|
| Stitching Capacity | 2 sheets up to 1/4" thick |
| Throat Depth (Flat) | 5" |
| Throat Depth (Saddle) | 9" |
| Work Table Width | 16" |
| Side Stops Width Range | 2.5" to 26" |
| Wire Types | 23–28 gauge round or 21x25 flat |
| Power Supply | 115V, 50/60Hz (230V available) |
| Dimensions | 16" W x 15" D x 24" H |
| Machine Weight | 28 lbs |
| Shipping Weight | 55 lbs |
Applications
đź“„ Saddle-stitched booklets and catalogs
🏷 Corner-stitched documents and reports
đź“š Flat-stitched newsletters and marketing materials
🏢 In-house print finishing for small to mid-size jobs
Benefits
âś… Compact design fits desktop or floor stand
âś… Easy to adjust and operate with minimal training
âś… Versatile stitch types from a single head
âś… Dependable stitching across various stock weights

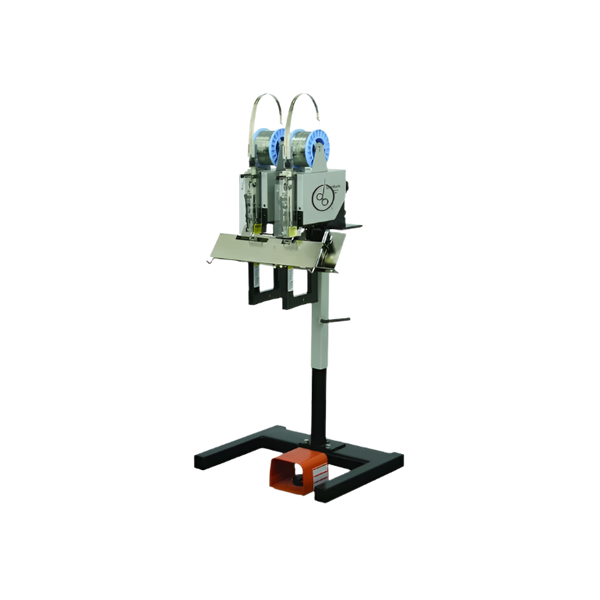

âś… Expandable: combine two units for dual-head stitching
