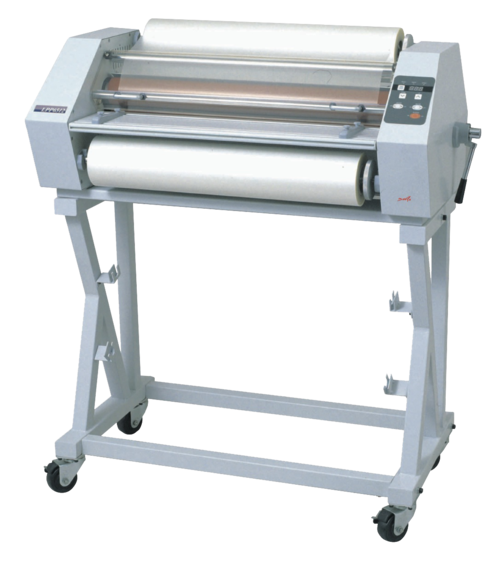

Drylam LPP6512 Heated Roller Laminators
Has a maximum laminating width of 25 inches and laminating film thickness 1.2-5 mil. The LPP6512 uses Thermal film (PSA with optional liner rewinder).
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Details & specifications
LPP6512 Product Description:
The Drylam LPP6512 Heated Roller Laminator presents a cost-effective and dependable option for wide format laminating. With a 25" maximum width, this laminator utilizes heated lamination nip rollers to ensure damage-free results. It also boasts a digital temperature control of up to 270°F for thermal films and the choice to add a release liner rewinder for PSA/Cold laminates. This machine is well-suited for various applications such as sign making, presentation graphics, display graphics, window decals, wall graphics, and floor graphics.
Safety Features:
- Emergency Shutoff Button on Top Rear Corner of Machine (LPP1112 Only)
- Magnetic Safety Switches on Feed Tray and Roller Guard Shield
- Removable Roller Guard Shield
Key Features:
- Foot pedal web advance included
- Heavy-duty roller stand included
- Digital temperature readout
- Optional liner rewinder available for PSA films
- Energy-saving standby mode
- Heated rollers for scratch-free laminations
Laminating Options:
- Thermal Laminating
- PSA Cold Laminating
- Heat Assist Laminating
- Mount & Laminate in one pass
- Â Mounting on Heat Activated PSA Boards
- Automatically adjusts to accept up to 1/4" mounting boards
Available Sizes:
- 25" (LPP6512) and 43" (LPP1112)
Perfect For:
- Sign Making
- Presentation Graphics
- Display Graphics
- Window Decals
- Wall Graphics
- Floor Graphics
Technical Specifications:Â
| Model | LPP6512 Laminator |
| Max. Laminating Width | 25 inches |
| Laminating Film Thickness | 1.2 - 5 mil |
| Film Types | Thermal (PSA with optional liner rewinder) |
| Heated Rollers Upper & Lower | Room Temperature to 270 degrees |
| Speed | 0 - 6 Feet per minute |
| Unwind Mandrels Upper and Lower | 1" Mandres with 2.25" and 3" Adapters |
| Gross Weight Laminator | 169 lbs |
| Stand Included (Weight) | 60 lbs |
| Power Requirements | 230VAC Single Phase |
| Wattage | 2000 |
| Plug Type | Nema N6-30P |
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
