Foliant Taurus 530 NG 4x4
Foliant Taurus 530 NG 4x4
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370
Automatic Laminating System

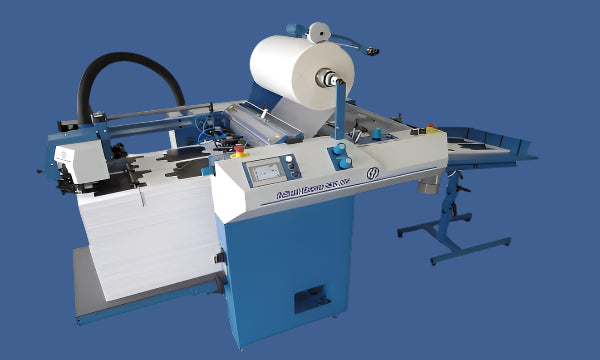

The Foliant Taurus 530 NG is a compact, high-speed single-sided laminator engineered for nonstop industrial operation. Designed for digital and offset jobs alike, it features a vacuum stream suction feeder, a high-speed bump separator, and a twin adjustable de-curling system for optimal flatness. With a max speed of 131 ft/min, it delivers up to 3,400 sheets/hour, making it an ideal solution for commercial printers handling mid- to high-volume lamination.
Key Features

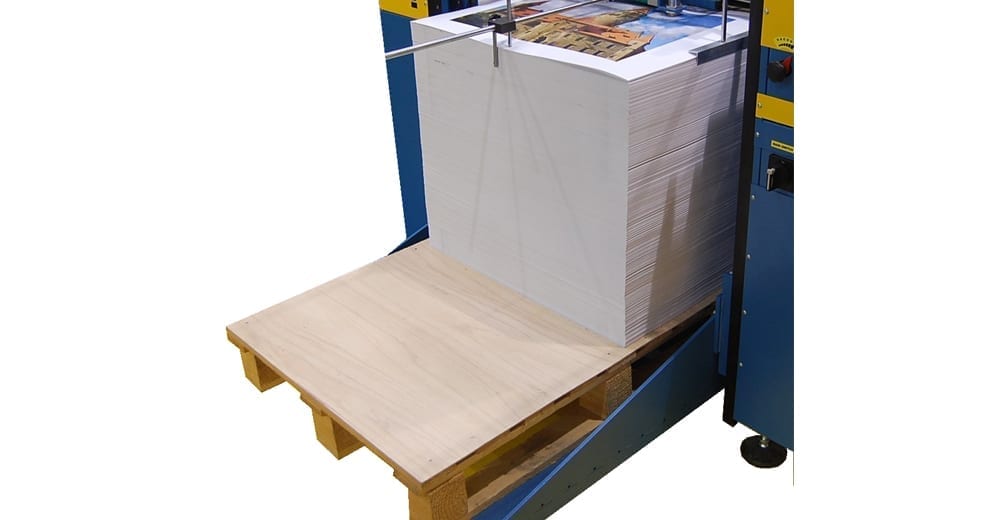

🔷 Suction Feed with Overlap Control – OMRON servo and PLC-controlled rising pile suction feed for ultra-precise ±0.08" overlaps.
🔷 Twin De-Curling System – Blade for strong decurling; roller for digital output that protects toner during the process.
🔷 Fast Warm-Up – Heats up in under 8 minutes using an internal dry electric chrome roller system.
🔷 Built-In Touchscreen – Icon-based interface eliminates language barriers and enables intelligent automation control.
🔷 High-Speed Bump Separator – PLC-controlled rollers automatically separate sheets into stackers.
🔷 Film Micro-Adjustable Air Shaft – Enables easy film changeovers and precise positioning.
🔷 Built for Heavy Stock – Laminates paper from 115 – 600 gsm with top-quality finish.
Specifications
| Specification | Details |
|---|---|
| Max Speed | 131 ft/min (40 m/min) |
| Max Performance | 3,400 SPH (19.7” x 27.8”) |
| Max Sheet Size | 20.8” x 29.5” (530 x 750 mm) |
| Min Sheet Size | 12.6” x 9.84” (320 x 250 mm) |
| Paper Weight | 115 – 600 gsm |
| Film Compatibility | BOPP (24–42μm), Nylon (24–35μm), PET (20–26μm with option) |
| Feeder Load Capacity | 21.25” pile |
| Temperature Range | 176°–284°F (80°–140°C) |
| Warm-Up Time | <8 minutes |
| Power Requirements | 3-phase, 400V, 6550W |
| Compressor Requirements | 150 L/min @ 6–8 bar |

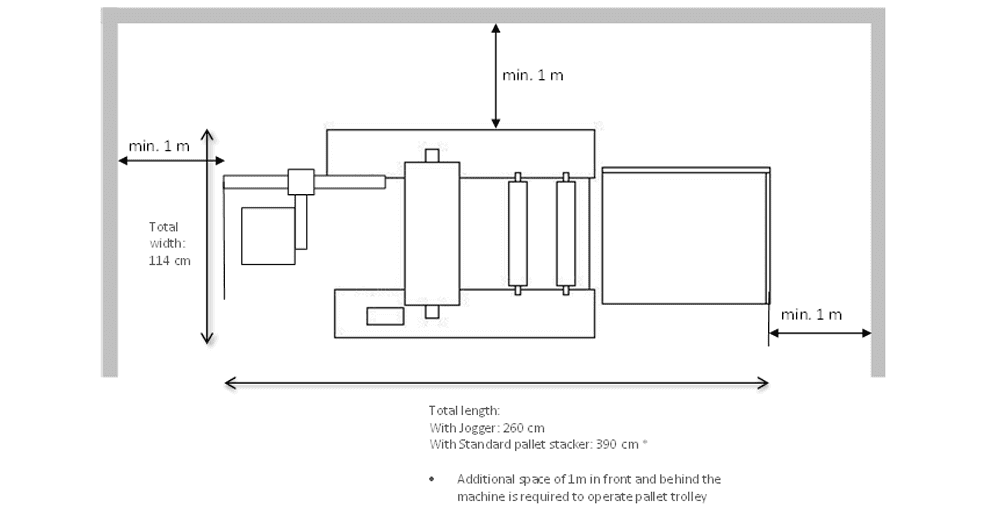

| Footprint (w/ Jogger) | 47.2” W x 106.2” L |
| Weight | 1,322 lbs (600 kg) |
| Overlap Accuracy | ±2 mm (0.08”) |
Applications
📚 Book Covers & Brochures – Laminates short- and long-run offset or digital sheets.
📦 Packaging Inserts & Folding Cartons – Protects and enhances heavier stock items.
🛍 Product Cards & POP Graphics – Durable finishing for retail and signage output.
🖨 General Commercial Printing – High-volume lamination of flyers, postcards, and manuals.
Available Options

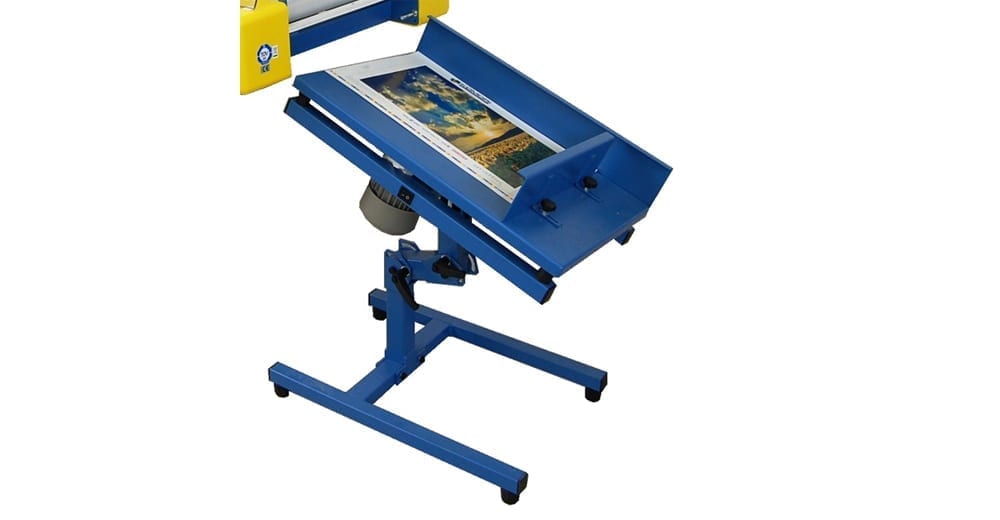

📍 Jogger 530 – Vibrating stacker for 3.9” pile alignment (required if not using stacker).

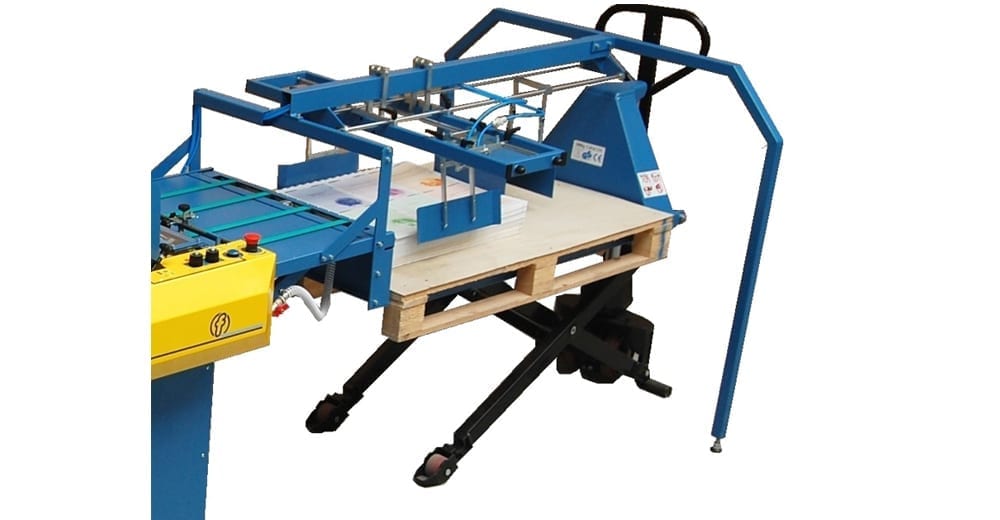

📍 Integrated Pallet Stacker – Automatic unloading of laminated sheets onto a 27.5” pallet.
📍 Non-Sticky Pressure Roller – Prevents glue buildup and supports lamination of windowed sheets.

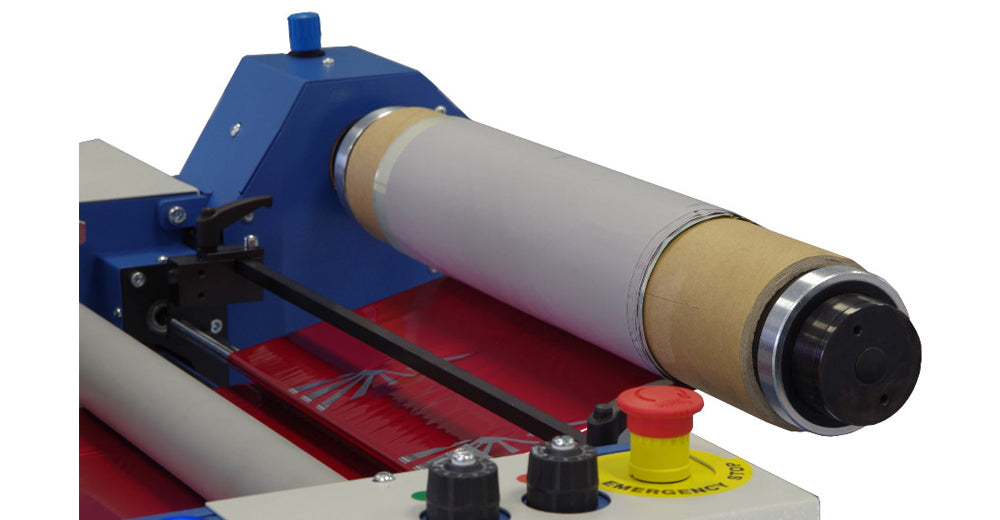

📍 Foliant Foiler – Applies metallic or spot varnish films without separation mode.
📍 XL Module – Extends max paper length to 39.3” (sheets longer than 29.5” not stackable on pallet).
📍 PET Film Module – Enables lamination of PET films up to 26μm.

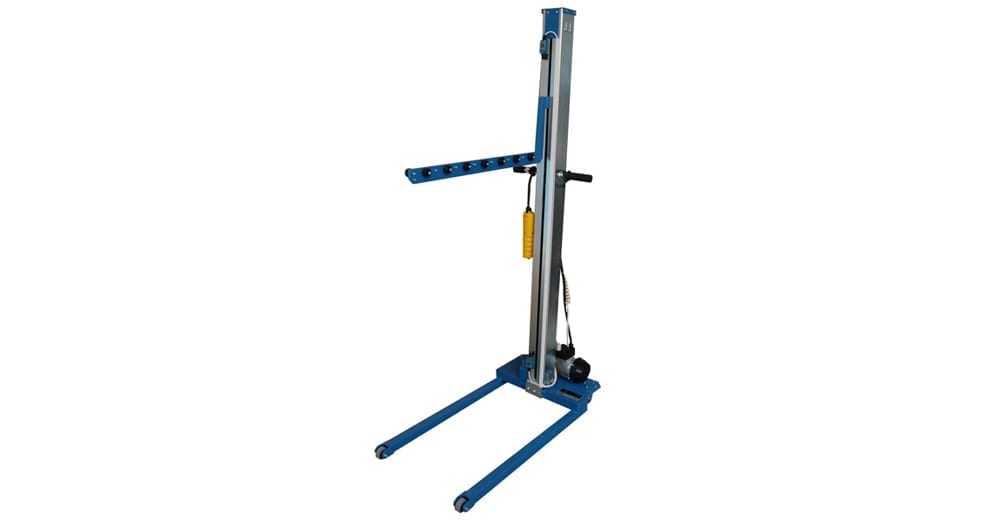

📍 Film Loader / Manipulator – Electric lift for rolls up to 275.5 lbs, connected to machine circuits.
⚠️ Requires either a Jogger or Pallet Stacker for operation.
Benefits
✅ Compact, industrial-grade system with high-speed performance.
✅ Supports thin, coated, and heavy substrates without compromising finish.
✅ Fully automated feed and separation via PLC and touchscreen controls.
✅ Handles high-volume work effortlessly, with scalability via upgrade options.
✅ Quick warm-up and simple film changes minimize downtime.
