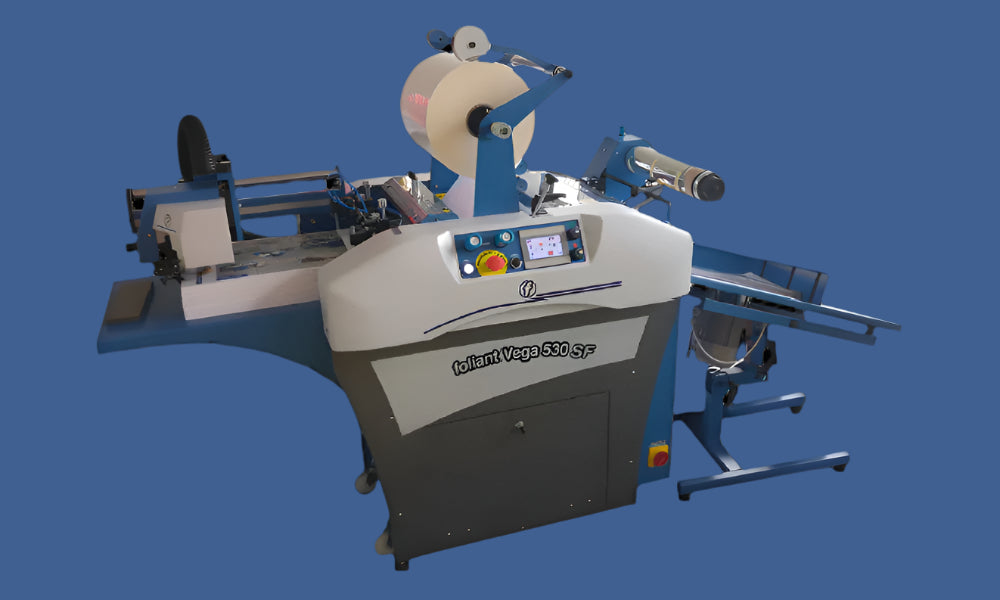

Foliant Vega 530 SF
This is a compact, automatic laminator with suction feed, dual de-curling, and pneumatic sheet separation—ideal for offset and digital prints up to 20” x 30”.
Request a Quote
Tell us what you need—we’ll follow up quickly with pricing and options.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Details & specifications
Automatic Laminating System
The Foliant Vega 530 SF is a fully automatic, compact industrial laminator built for heavy-duty lamination of digital and offset output. With its deep pile suction feeder, pneumatic bump separator, and dual decurling system, it delivers high-speed, reliable results on stock sizes up to 20” x 30”. Designed for demanding production environments, the Vega 530 SF offers advanced automation features typically found in larger laminators—without the footprint.
Key Features
🔷 Deep Pile Suction Feeder – Offset-style vacuum feed system handles sheets up to 11” high with in-run overlap accuracy of ±0.08”.
🔷 Pneumatic Separation System – Bump rollers deliver laminated sheets automatically into jogger or reception unit.
🔷 Dual Adjustable De-Curl Bars – In-run decurling with blade for offset and roller for digital prints with toner sensitivity.
🔷 Pneumatic Lamination Pressure – Requires external compressor, enabling strong, consistent pressure for up to 500 gsm stock.
🔷 Chrome & Rubber Lamination Rollers – Heated chrome roller with internal sensor and adjustable rubber roller.
🔷 Quick-Change Film Shaft – Supports up to 9,842' of 24–42μm film with built-in tension brake.
🔷 Touchscreen Interface – Icon-based panel controls all lamination and separation functions.
🔷 Automation Benefits – Intelligent job start, pressure regeneration, and automatic roller gap alignment.
Specifications
| Specification | Details |
|---|---|
| Max Sheet Size | 20” x 30” (530 x 750 mm) |
| Min Sheet Size | 7.8” x 11.8” (200 x 300 mm) |
| Paper Weight Range | 115 – 500 gsm |
| Max Speed | 65 ft/min (20 m/min) |
| Max Performance | 1,720 SPH (14” x 20”) |
| Film Compatibility | BOPP (24–42μm), Nylon (24–35μm)* |
| Temperature Range | 176°–284°F (80°–140°C) |
| Warm-Up Time | Under 8 minutes |
| Power Requirements | 3-phase, 400V, 50–60Hz, 5,000W |
| Air Requirements | 87–116 psi, 5.3 cfm (external compressor) |
| Footprint with Jogger | 39.3” x 84.6” |
| Weight | 882 lbs (400 kg) |
*Nylon films require pneumatic separation.
Applications
📚 Book Covers & Manuals – Durable gloss or matte finishes for publishing applications.
📄 Marketing Collateral – Laminate brochures, flyers, menus, and business cards.
🛍 Retail Packaging Inserts – Finish product tags, folding cards, and promo items.
🖨 Offset & Digital Jobs – Supports short- and long-run lamination on varied substrates.
Available Options
📍 Jogger 530 – Vibrating reception unit (3.9” pile capacity) for neat stacking.
📍 Reception Unit 530 – Adjustable non-powered sheet collection tray.

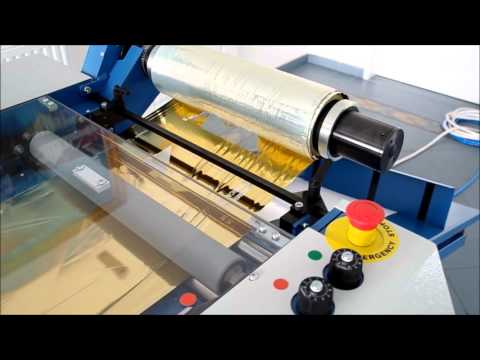

📍 Foliant Foiler – Applies metallic or spot varnish foil over digital prints.
📍 Non-Sticky Pressure Roller – Eliminates glue/toner adhesion and supports windowed sheets.
📍 Air Shaft – Quick, tool-free film mounting for 3” core rolls.
📍 Extra Film Roll Shaft – Enables rapid film changeovers.
📍 XXL Feeding Table Extension – Supports sheets up to 51” long.
📍 Anti-Static Bar – Removes static charge post-lamination for clean stacking.
⚠️ Machine must be operated with either a Jogger or Reception Unit.
Benefits
✅ Truly automatic operation with suction feed, auto overlap, and pneumatic separation.
✅ High-end features in a compact footprint, suitable for medium to high volumes.
✅ Easy job changeovers with job memory and intelligent restart functions.
✅ Advanced de-curling options for different print technologies.
✅ Supports BOPP and Nylon films with consistent results on heavy stocks.
