Made in USA New

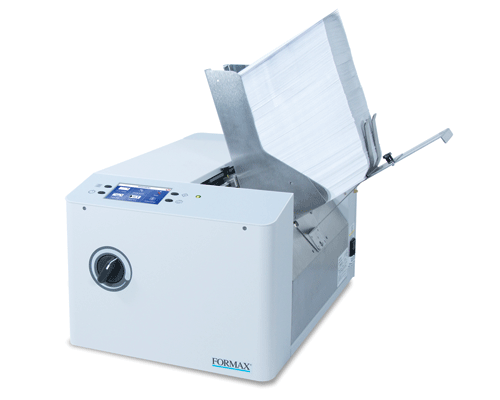

Formax AP2 Monochrome Address Printer
Formax AP Series Digital Address Printers Video Demonstration

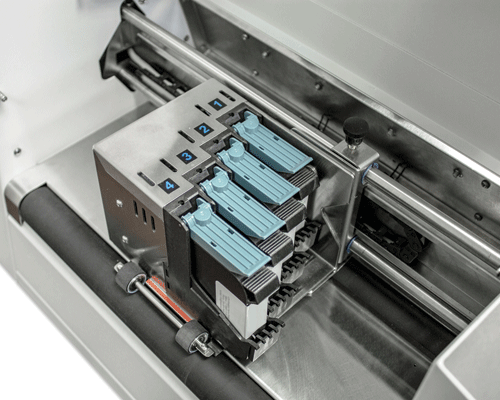

Fixed head: 4-pen stitched design with 4 inkjet cartridges

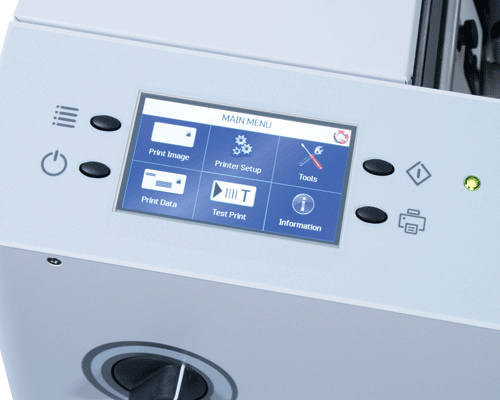

4.5" color touchscreen control panel with adjustable backlight

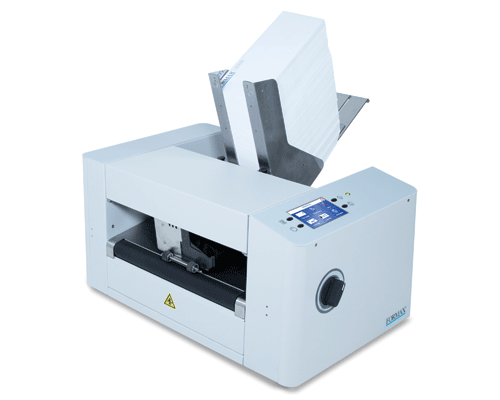

AP2 Integrated feeder holds up to 500 #10 envelopes at a time, and can handle materials up to 1/4″ thick
Formax AP2
Formax

Formax AP2

Formax AP2 monochrome digital address printer delivers up to 22,000 #10 envelopes/hr, 600 x 600 DPI, and a 500-envelope feeder.

$0.00 USD
Truck-freight shippingShips FOB with a lift gate.
Talk to a finishing expertReal specialists by phone.
Financing availableLease & purchase options.
Factory-trained install & serviceWe deliver, install & support.

Details & specifications

Monochrome Digital Address Printer
Formax AP2
High-speed, one-pass addressing built for production mail. The AP2 combines a fixed 4-pen stitched printhead, a 500-envelope feeder, and job memory for fast repeats—ideal for printing outgoing addresses on envelopes with pre-printed return addresses.
Speed: Up to 22,000 #10 envelopes/hr
Quality: Up to 600 x 600 DPI
Imaging Area: Up to 2" H x 15" L
Duty Cycle: Up to 500,000/month
Key Features
â—† Production speed for mail rooms
Produces up to 22,000 #10 envelopes per hour and up to 30,000 postcards per hour.
â—† Fixed 4-pen stitched single-head
Uses 4 high-capacity thermal inkjet cartridges in a stitched layout for one-pass printing.
â—† Touchscreen control + job recall
4.5" color touchscreen with job storage and recall, with up to 16GB of memory.
â—† Flexible media handling
Integrated feeder holds up to 500 #10 envelopes and supports materials up to 1/4" thick.
â—† Network-ready workflow
USB 3.0 and Ethernet connectivity, plus TrueType font compatibility.
Built For
Mail production that can’t slow down
Addressing, barcodes, and monochrome messaging on envelopes, postcards, and flat stock—especially where repeat jobs and fast turnaround matter.
Applications
Envelope addressing Postcard addressing Batch mail runs Variable data output On-demand reprints
Note on ink & spot color
Supports spot color capability (blue, red, green, and invisible) and includes on-screen ink monitoring.
Specifications
Print Technology Thermal inkjet, 4 high-capacity cartridges
Addressing Speed Up to 22,000 #10 envelopes/hour; up to 30,000 postcards/hour
Print Quality Up to 600 x 600 DPI
Imaging Area Up to 2" H x 15" L (51 x 381mm)
Material Size Min: 5" L x 3" W; Max: 15" L x 13.5" W
Material Thickness Up to 6.3mm / 1/4"
Feeder Capacity Up to 500 #10 envelopes
Job Memory Up to 16GB
Connectivity USB 3.0, Ethernet (LAN)
Software Driver for Windows 7 and higher
Dimensions (W x D x H) 23" L x 22" D x 19" H
Weight 60 lbs (27kg)
Power 115VAC, 50/60 Hz
Additional capabilities include adjustable printhead height, on-screen ink monitoring, batch/job/lifetime counters, and TrueType support.
Available Options
  • AP-05 3-foot bi-directional conveyor/stacker
  • Bulk mailer software
  • Thermal inkjet cartridges
Manufactured in New Hampshire, USA.
