Formax Atlas C150
High-speed creaser and perforator for making forms and digital print finishing. Automates setup, reduces passes, and improves production efficiency.
Details & specifications

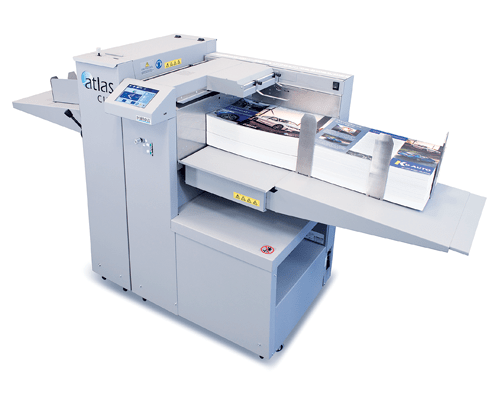

Formax Atlas C150 Automatic Creaser / Perforator
The Formax Atlas C150 is a high-speed automatic creasing and perforating system designed for digital print environments handling toner-based stocks, NCR forms, and multi-perforation applications. With fully automated setup, vacuum feeding, and optional multi-perf capability, the C150 dramatically reduces manual handling and multi-pass workflows while eliminating cracking on digitally printed materials.
Key Features
- Up to 8,500 sheets per hour for high-speed production output
- Handles 75–400 gsm media including digital prints and NCR forms
- Fully automatic setup with intuitive touchscreen controls
- Top vacuum feed system for consistent sheet separation
- Heavy-duty creasing matrix eliminates cracking on toner prints
- Up to 30 creases per sheet for complex jobs
- Inline rotary perforation for efficient multi-function processing
- Ultrasonic double-sheet detection reduces feeding errors
- Unlimited programmable jobs for repeatable workflows
Product Overview
The Atlas C150 is engineered to solve common challenges in digital print finishing, including toner cracking and inefficient multi-pass workflows. Its automated setup and precision feeding system allow operators to quickly process jobs with minimal adjustment, making it ideal for short runs and repeat production.
With optional perforation and creasing kits, the C150 can handle more complex applications such as multi-perf NCR forms, book covers, and specialty folding jobs. Its compact footprint and rugged construction make it a strong fit for both growing print shops and established production environments.
Specifications
| Speed | Up to 8,500 sheets per hour |
| Sheet Size | Min: 3.89” x 8.3” | Max: 15” x 27.5” (51” with extension) |
| Paper Weight | 75 – 400 gsm |
| Creases Per Sheet | Up to 30 |
| Loading Capacity | Up to 7.8” stack height |
| Stacker Capacity | Up to 4.7” |
| Dimensions | 67” L x 29” W x 46” H |
| Weight | 551 lbs |
| Power | 100–240V, 50/60Hz |
Applications
- NCR forms and receipt books
- Digital print finishing
- Multi-perforation jobs
- Brochures and folded pieces
- Book covers and hinge creasing
Available Options
- Second creasing/perforation kit for multi-pass reduction
- Cross and partial perforation kit
- Narrow and ultra-narrow creasing matrices
- Feed table extension (up to 51” sheets)
Benefits
- Reduces manual handling and multiple passes
- Improves consistency on NCR and digital prints
- Eliminates cracking on toner-based materials
- Increases production speed and efficiency
- Supports repeatable, programmable workflows
Why the Atlas C150
The Atlas C150 is built for print shops that need to increase efficiency without adding complexity. Its combination of automation, speed, and flexibility makes it a strong solution for NCR workflows, multi-perforation jobs, and digital print finishing where consistency and throughput matter.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
