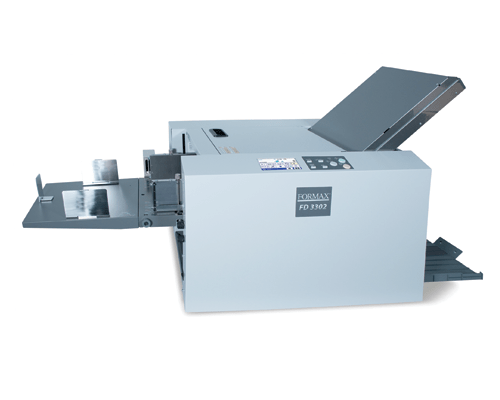

Formax FD 3302 Document Folder
The Formax FD 3302 air-suction folder processes up to 18,600 sheets/hour with touchscreen control, auto paper detection, and support for coated and heavy stocks
Details & specifications
The Formax FD 3302 is a high-speed, air-suction feed document folder designed for professional print environments handling a wide range of stocks and sizes. Built for performance and flexibility, it processes up to 18,600 sheets per hour with minimal marking, making it ideal for digital print finishing, mail prep, and office use. With an intuitive touchscreen, automatic paper size detection, and up to 30 custom folds, it delivers fast, accurate folding in a compact tabletop design.
Key Features
🔷 Air-Suction Feed System – Minimizes static and feed marks while supporting coated and heavy stocks.
🔷 Up to 18,600 Sheets/Hour – Five selectable speed levels for optimized performance.
🔷 Extended Infeed Tray – Handles sheets up to 25.5” long with high-capacity stacking.
🔷 Automatic Paper Size Detection – Recognizes common sizes including letter, legal, half letter, and more.
🔷 Color Touchscreen Control Panel – Simplifies programming, fold selection, and troubleshooting.
🔷 Pre-Programmed & Custom Folds – Includes 6 standard fold types and up to 30 custom fold memories.
🔷 Built-In Double Feed Detection – Optical and ultrasonic sensors ensure accurate, jam-free operation.
🔷 Quiet Operation – Built-in DC fans and noise reduction technology for office-friendly use.
Specifications
| Specification | Details |
|---|---|
| Max Speed | Up to 18,600 sheets/hour |
| Speed Levels | 5 selectable speeds |
| Paper Size Range | 4.73” x 7.2” to 12.2” x 25.5” |
| Paper Weight | 52.3–157gsm (uncoated), 73.3–157gsm (coated) Max: 230gsm (single fold only*) |
| Feed Type | Air suction belt |
| Infeed Capacity | Up to 1.96” (625 sheets of 64gsm) |
| Fold Types | C, Z, Half, Fold Out, Double Parallel, Gate + Cross fold (2-pass) and 30 custom folds |
| Double Feed Detection | Optical and ultrasonic |
| Control Interface | Color touchscreen |
| Power Requirement | 110–240V, 50/60Hz |
| Dimensions (L x D x H) | 53.3” x 23.2” x 24.2” |
| Weight | 157 lbs (71 kg) |
*230gsm limit applies to single fold jobs with tested stock.
Applications
📄 Office Correspondence & Letters – Precise folding of standard documents for mailing and distribution.
📬 Mailroom & Envelope Stuffing – High-speed folding for inserting-ready output.
📚 Educational & Government Materials – Efficiently fold notices, forms, and informational sheets.
🏢 Print Shops & Digital Finishing – Reliable folding of coated, heavy, and long digital sheets.
Available Options
📍 402 Series Air Jogger – Aligns sheets for smoother feeding of mixed or curled stock.
📍 Outfeed Stacking Belt & Rollers – Dual tray positions with auto-adjustment based on paper size.
📍 Side Air System – Enhances feeding performance for large and heavy stocks.
Benefits
✅ Air-suction technology ensures reliable feeding with minimal marking.
✅ Handles coated and heavy stock that friction folders cannot manage.
✅ Supports long sheets and high speeds without sacrificing accuracy.
✅ Easy setup and operation via color touchscreen and auto paper detection.
✅ Compact, tabletop format with industrial-grade performance.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
