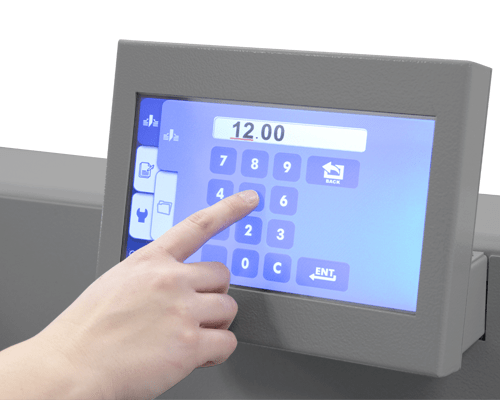

  • Cut-True 28A touchscreen

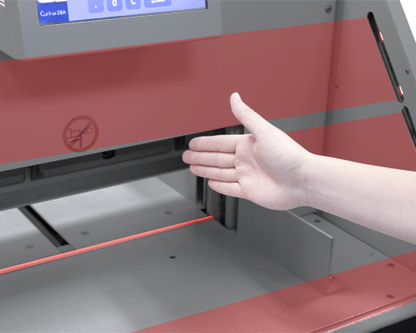

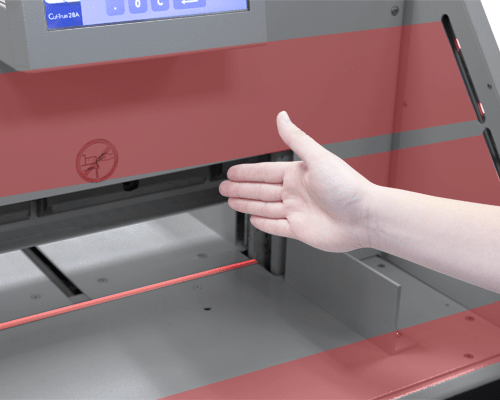

  • Cut-True 28A hand safety curtain

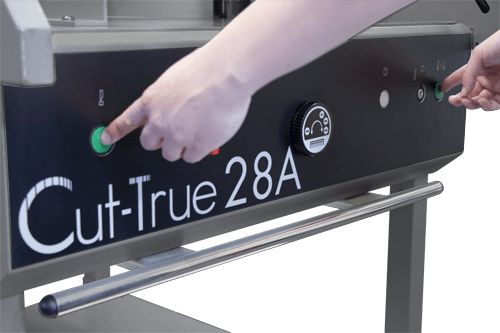

  • Cut-True 28A two button operation

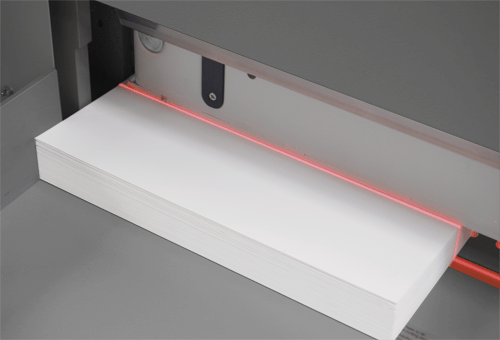

  • Cut-True 28A LED cut line

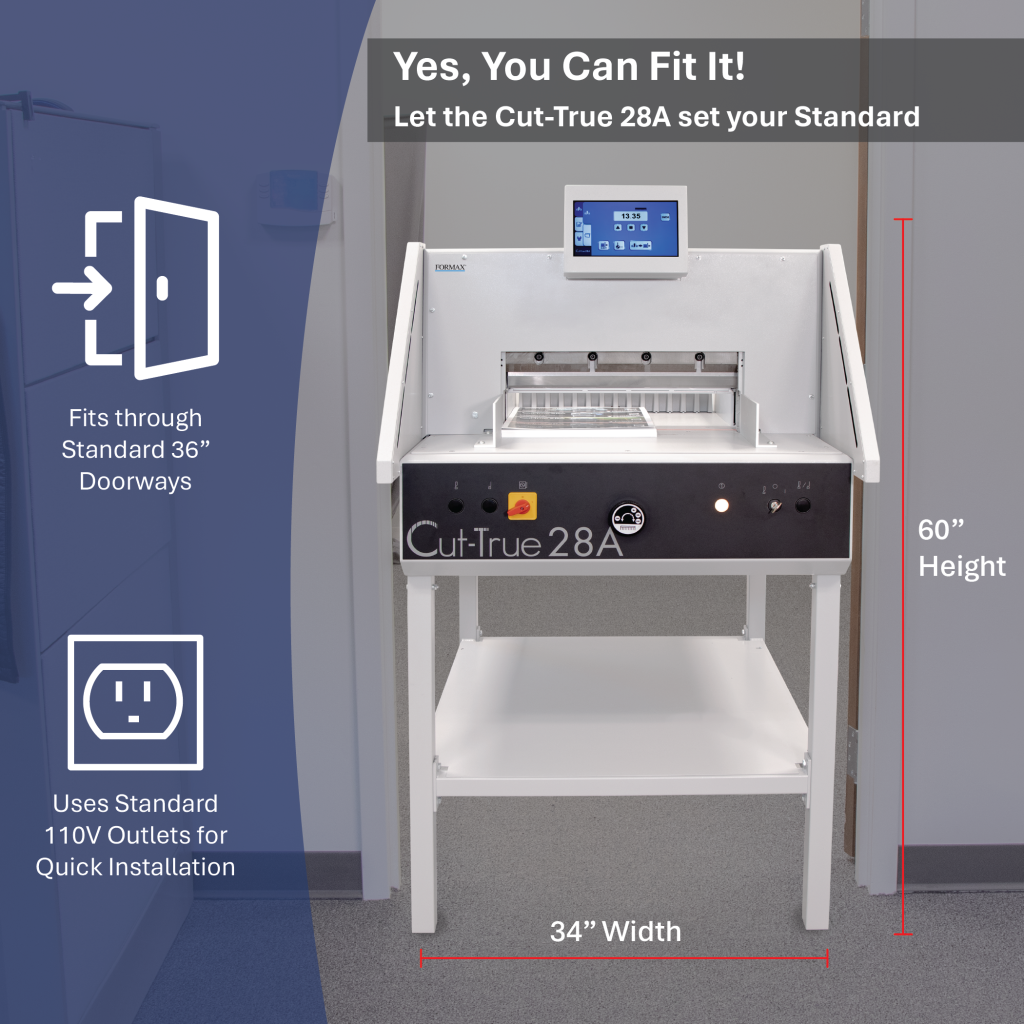

  • Cut-True 28A Infographic
1 7

Formax

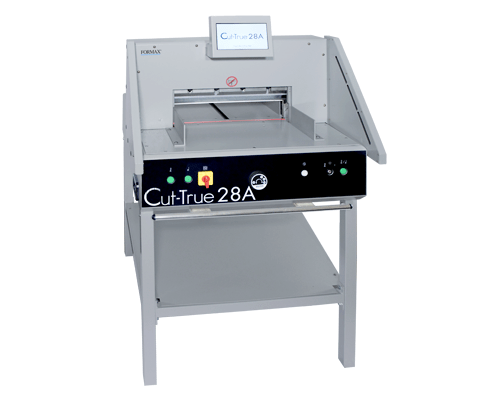

Formax Cut-True 28A

Formax Cut-True 28A

Item Number: 28A

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

Programmable Paper Cutter

The Formax Cut-True 28A is a programmable, fully automatic paper cutter designed for light production print environments and in-plant finishing centers. With a cutting width of 18.9", support for stacks up to 3.15" high, and a user-friendly touchscreen, it combines precision with safety. Infrared safety beams, dual-button activation, and an electronic back gauge ensure accurate cuts—every time.

Key Features

🔷 18.9” Cutting Width – Ideal for full-bleed trimming of digital and offset output.
🔷 Cuts Up to 3.15” High – Handles large stacks for efficient batch finishing.
🔷 Programmable Touchscreen Interface – Stores up to 99 jobs with 30 cuts each.
🔷 Infrared Safety Curtain – Immediately halts blade movement if beam is interrupted.
🔷 Electronic Dual-Hand Operation – Ensures operator safety by requiring both hands to cut.
🔷 LED Cutting Line – Laser guide for precise alignment before cutting.
🔷 Automatic Clamp and Blade Return – Engages and retracts automatically for quick cycles.
🔷 Touchscreen & Fine-Tune Hand Wheel – Allows manual or digital back gauge adjustment.
🔷 All-Metal Stand with Storage Shelf – Integrated design keeps workspace tidy and ergonomic.
🔷 Standard 110V Power – Operates on a dedicated 20A line with no special wiring required.

Specifications

Specification Details
Max Cutting Width 18.9” (480 mm)
Max Stack Height 3.15” (80 mm)
Cut Length Behind Blade 18.9” (480 mm)
Narrow Cut 1.37” (35 mm)
Table Size (Front of Blade) 32” W x 37” D (811 x 941 mm)
Back Gauge Adjustment Touchscreen or electronic hand wheel
Programmable Jobs Up to 99, with up to 30 cuts each
Cutting Action Dual-button electric
Clamp Style Automatic, geared
Blade Type Hardened steel with solid steel carrier
Power Requirement 110V, 20A dedicated line
Dimensions (H x W x D) 60” x 36” x 40” (1520 x 920 x 1010 mm)
Weight 575 lbs (260 kg)
Safety Certifications UL approved

Applications

📄 Print Shops – Cut business cards, postcards, and flyers with precision.
📚 Booklet Production – Trim perfect-bound and saddle-stitched books.
📬 Mailing Prep – Finalize document sets for insertion and distribution.
🏢 In-Plant Finishing – Dependable cutting for internal corporate and educational operations.

Available Accessories

📍 Replacement Blade (27-10) – High-speed hardened steel.
📍 Replacement Cutting Sticks (27-20) – Pack of 8 for extended use.
📍 Blade Change Safety Tool – Included for safe blade replacement.

Benefits

✅ Safe operation with infrared curtain and dual-button control.
✅ Consistently accurate cuts using LED laser guide and programmable memory.
✅ Simple to operate—touchscreen programming and job recall streamline workflow.
✅ No special wiring—standard power keeps setup easy.
✅ Built-in storage and rugged design enhance workplace efficiency.
