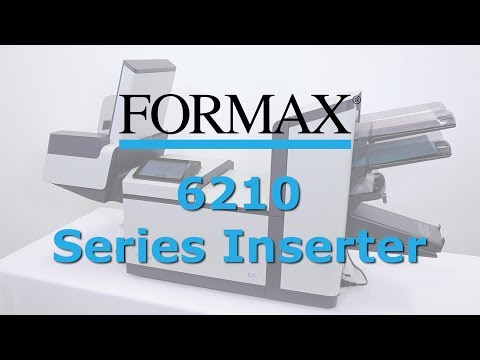

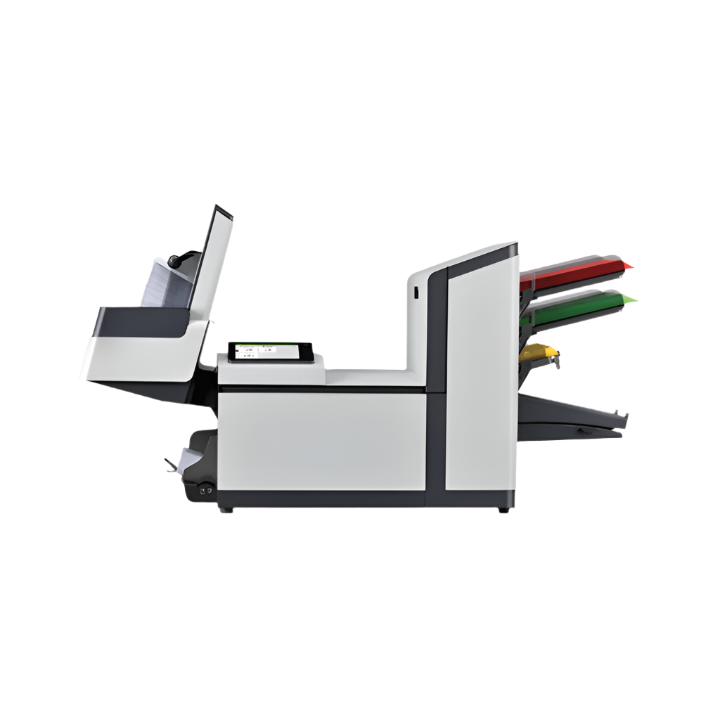

Formax FD-6210 Inserter Series

The 6210 Series Inserters combine advanced folding & inserting technology with user-friendly features and flexibility. Five models are available with a variety of input configurations to meet the needs of any size office or small mailroom.

Standard features include a 7” full-color touchscreen control panel with graphical interface, high-capacity vertical stacker which holds up to 500 finished envelopes, automatic paper and envelope presence sensors with indicators on the control panel, and a top-loading envelope hopper. The 6210 Series also includes an eco-friendly sleep mode which saves energy by automatically putting the inserter into standby mode after 1 hour of being idle.

AutoSetTM allows for one-touch setup of new jobs by automatically measuring paper lengths, envelope sizes and fold lengths. Recurring and frequent jobs run in AutoSetTM can also be stored as one of 50 programmable jobs. The powerful folding system enables the 6210 Series to accurately fold up to five sheets at once. Optional CIS scanning technology covers the full width of the document feeders and accurately reads OMR, 1D and 2D barcodes printed in any location on a document.

The 6210 Series is available in five configurations to meet your processing needs: FD 6210-Basic 1 with one automatic sheet feeder, FD 6210-Basic 2 model with two automatic sheet feeders, FD 6210-Advanced 1 with one sheet feeder and one insert/BRE feeder, FD 6210-Advanced 2 with two sheet feeders and one insert/BRE feeder and FD 6210-Special 2 with two sheets feeders and a special insert/BRE feeder.

Features Include:

• Five Models Available: Choose the configuration that best suits your applications
• 7” Color Touchscreen: Graphical interface provides quick, easy setup
• 50 Programmable Jobs: Handy for recurring or frequently processed applications
• High-Capacity Vertical Stacker: Holds up to 500 finished envelopes in a neat, sequential order
• AutoSetTM: Automatically senses and sets paper length, fold type, envelope size, fold length and double document detection. Simply load and go.
• Envelope & Paper Presence Sensors: Graphic indicators on touchscreen to assist operators
• Enhanced Folding System: Fold/insert up to 5 pages in half-fold (up to 8 w/optional Productivity Pkg)
• Multi-Sheet Feeding: Feed up to 3 sheets from one feeder (up to 10 unfolded sheets w/ optional Productivity Package)
• Clamshell Design: Easy access to the paper path
• Accumulate Before Folding: Documents are folded and inserted together
• Double Document Detection: Electro-mechanical sensors are unaffected by dust, smudges or paper color, providing essential document integrity
• Multiple Insert Capability: Fold and/or insert sheets, BREs and cards in almost any combination
• Fold Types: C, V, Z, Double Parallel, no fold Fold Only without Inserting
• Daily Mail Mode: For inserting stapled sets
• Seal and Non-Seal Capabilities
• Cascade Mode: Maximizes output by connecting multiple feeders with the same document. When one feeder empties, the next automatically starts feeding, for a total hopper capacity of up to 650 sheets.
• Eco Mode: Energy-saving feature places the inserter into sleep mode after 1 hour of inactivity
