Graphic Whizard PT 335SCC B Multi: Slit, Cut, Crease, Perf and Score

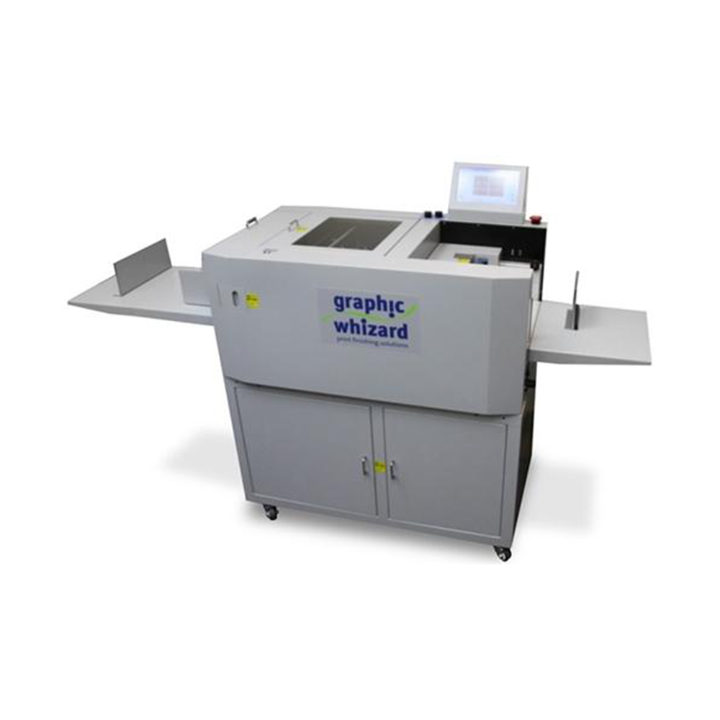

The Graphic Whizard PT 335SCC B Multi is a floor-model automated slitter cutter creaser that consolidates slitting, cutting, creasing, perforating, and scoring into a single pass. Built for high-value digital finishing, it pairs a 4" air-suction vacuum pile feeder with interchangeable crease and cross-perf dies, multiple rotary tools, and a 9" color touchscreen with 64-job memory, so an operator programs a job once and runs multi-up work unattended.
Automated crease-depth adjustment scores digital stock before the fold, which protects toner and coatings from cracking on brochures, covers, and folded pieces. As a one-pass crease and perforate machine it lifts throughput on business-card slitting, direct-mail perf, and ticket work up to 350 gsm. Mid-State Litho is an authorized Graphic Whizard dealer serving Michigan and the Great Lakes region, family-owned since 1984; we deliver, install, train your operators, and service the PT 335SCC after the sale. This machine is configured to your die set, so request a quote for pricing.
Key Features
- Automatic slit / cut / crease / perf / score - one-pass finishing for multi-up digital jobs.
- 4" air-suction pile feeder - vacuum pile feeding for reliable, unattended operation on longer runs.
- Interchangeable crease and cross-perf dies - quickly tailor the machine to different stocks and finishing styles.
- Multiple crease-width options - standard 1 mm crease with optional 0.4, 0.6, 1.2, and 1.4 mm widths for varied paper weights.
- Automated crease-depth adjustment - 5-step auto-adjust for consistent, crack-resistant creases on digital output.
- Micro-perforation capability - 24/48 TPI micro-perf tools for tear-off coupons, reply cards, and tickets.
- Up to 32 creases/perfs per pass - handles complex folding and perf patterns without multiple passes.
- 9" color touchscreen - built-in job creator, 64-job memory, and a straightforward operator interface.
- Ultrasonic double-sheet detection - protects against misfeeds and maintains consistent production.
- Multi-accessory output - flexible output configuration for downstream handling or finishing accessories.
Specifications
| Minimum Stock Input Size | 8.26" W x 8.16" L (20.98 cm x 20.72 cm) |
| Maximum Stock Input Size | 13" W x 26.5" L (33.02 cm x 67.31 cm) Up to 40" (104 cm) handfed length |
| Minimum Finished Output Size | 1.96" x 1.89" (4.97 cm x 4.8 cm) |
| Maximum Finished Output Size | 13" W x 26" L (33.02 cm x 66.04 cm) |
| Paper Weight | 150 - 350 gsm |
| Crease Depth Adjustment | 5 steps, automatic adjust |
| Crease Width Options | 1 mm standard (optional 0.4, 0.6, 1.2, 1.4 mm) |
| Crease Direction | Up or down |
| Crease / Perforate per Pass | 0 - 32 per pass |
| Micro Perforating | Yes, 24/48 TPI |
| Feeding Method | 4" air-suction pile feeder (vacuum pile) |
| Speed | Up to 25 sheets per minute (job dependent) |
| Job Memory | 64 jobs |
| Controls | 9" color touchscreen with built-in job creator |
| Machine Dimensions (L x W x H) | 67" x 24" x 46" (170 cm x 60.9 cm x 116.8 cm) |
| Machine Weight | 380 lbs (172.36 kg) |
| Electrical | 110-130 V, 60 Hz, 15 A |
| Warranty | 3-year warranty (excludes consumables) |
Machine performance will vary based on stock weight, type, and job specifications.
Applications
- Multi-up business cards, postcards, and rack cards from digital sheets
- Direct-mail pieces, announcement cards, and reply cards with perf
- Tickets, coupons, and tear-off forms requiring micro perforation
- Brochures, covers, and folded pieces that need crack-free creasing
- Short-run, high-changeover digital work in quick printers, in-plants, and commercial shops
Benefits
- Consolidates slitting, cutting, creasing, perforating, and scoring into one automated system.
- Reduces operator intervention with vacuum pile feeding, job memory, and automated crease settings.
- Supports a wide range of formats and paper weights for flexibility in digital production.
- Improves quality and consistency on creased and perforated work, especially on digital stocks.
- Delivers higher throughput on multi-up jobs while preserving accuracy and repeatability.
Dies, perf assemblies and accessories that fit the PT 335SCC B

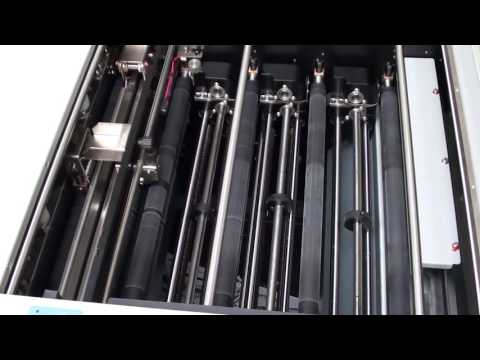

The PT 335SCC B accepts a range of interchangeable tooling and consumables so you can match it to your die set. Compatible items include the conveyor outfeed; rotary perf assemblies (12/24/48 TPI), the perf anvil, and perf blades (12/24/48 TPI); crease bar sets (0.4 mm and 0.6-1.4 mm); the cross-perf die set with replacement cross-perf rules (12/24/52 TPI); the cross-perf crash-pad holder and crash pad; and rotary kiss-cut, rotary slitter, and rotary score tools. Browse available tooling in Graphic Whizard parts and accessories, or contact us to spec the exact die set for your jobs.
Why buy the PT 335SCC from Mid-State Litho
- Authorized Graphic Whizard dealer - genuine equipment, tooling, and support.
- Factory-trained technicians and in-house service, not a drop-ship box.
- Michigan and Great Lakes coverage for delivery, install, and on-site help.
- Family-owned since 1984, with decades of bindery and finishing experience.
- Delivery, installation, and operator training included with your machine.
- Financing and leasing available - see financing and leasing.
Frequently asked questions
What can the PT 335SCC B do in one pass?
It slits, cuts, creases, perforates, and scores in a single automated pass, so multi-up digital jobs are finished without moving stock between machines.
Which perf, slit, and score dies fit it?
It uses interchangeable rotary perf assemblies (12/24/48 TPI), crease bar sets, cross-perf die sets and rules, and rotary kiss-cut, slitter, and score tools. See Graphic Whizard parts and accessories or ask us to spec your set.
Does it prevent toner cracking on digital prints?
Yes. Automated crease-depth adjustment scores the sheet before folding, so toner and coatings bend over a formed crease instead of cracking.
Does Mid-State Litho install and train operators?
Yes. Our factory-trained technicians deliver, install, and train your operators across Michigan and the Great Lakes region, and service the machine after the sale.
How do I get pricing?
The PT 335SCC is configured to your die set, so pricing is by quote. Request a quote and we will scope the right configuration.
Other PT 335 configurations and resources
The PT 335SCC is the inline slit/cut/crease/perf/score model in the PT 335 family. If you need a different configuration, compare the entry PT 335 B creaser, the PT 335A Plus Multi, the PT-335CKF Creaser/Knife Folder, or the wider-format PT 8336SCC Multi. Browse all paper creasers, or reach us through service and support and contact.
