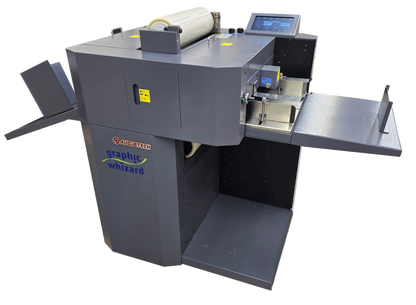

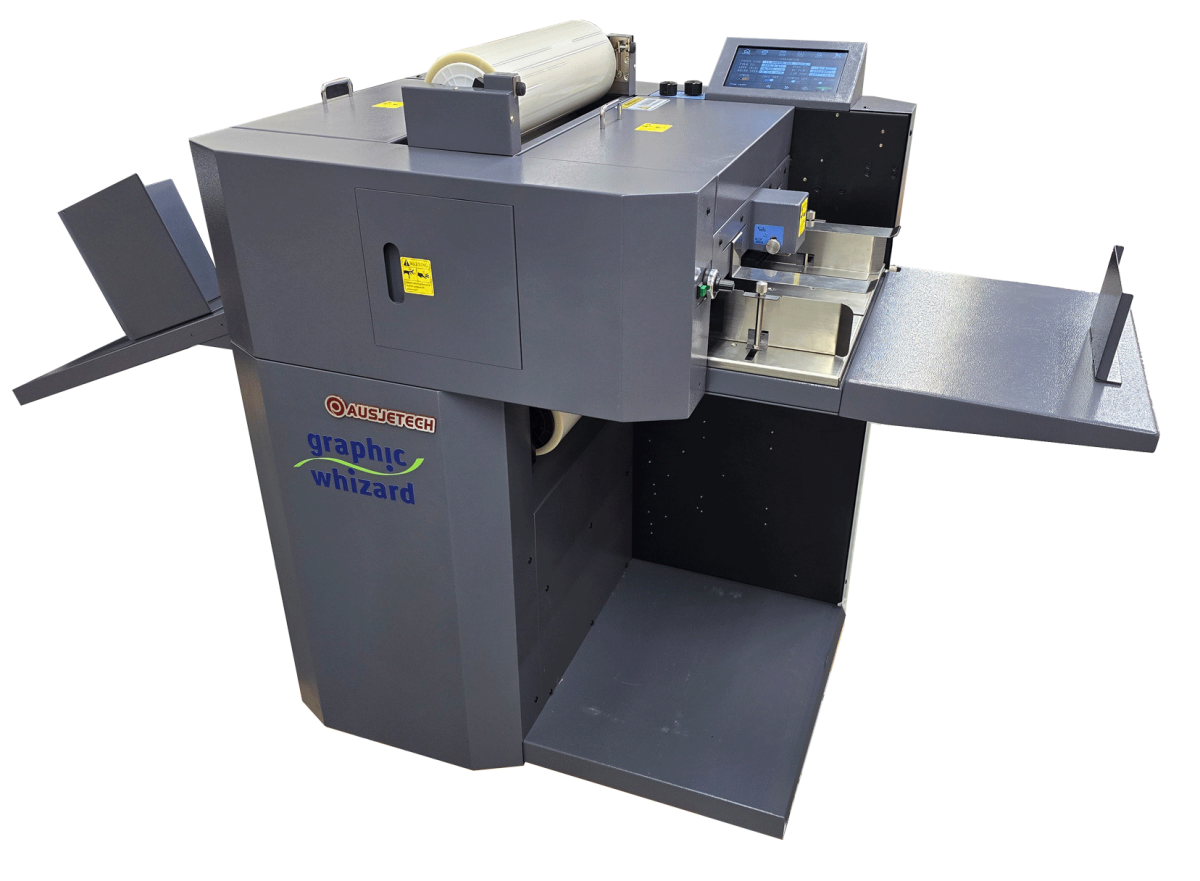

Graphic Whizard PT33LSC Micro
Graphic Whizard PT33LSC Micro laminator, slitter, and cutter for short-run digital finishing. Cut-to-bleed, 2-sided encapsulation, touchscreen. Authorized dealer pricing, financing, and service from Mid-State Litho in Michigan.
Freight items can be purchased online; final delivery details may be confirmed before shipment.
Tax-exempt? Apply once, check out tax-freeAsk a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
Graphic Whizard PT33LSC Micro: laminate, slit, cut
The PT33LSC Micro is a compact laminating, slitting, and cutting system built for short-run digital production. It finishes cut-to-bleed, handles variable encapsulation for 2-sided pouch lamination, and uses film efficiently with only a 1/8" gap between sheets. Touchscreen programming, fast job setup, and a 2" vacuum pile feeder give a set-and-forget workflow for smaller shops that need professional-grade output.
Key features
- Slits and cuts to finished size with clean trimming
- Gloss, matte, soft-touch, and specialty film support
- Highest film yield in its class with just a 1/8" gap between sheets
- Touchscreen programming for simple operator control
- Variable encapsulation size for 2-sided pouch lamination
- 2" vacuum pile feeder for consistent sheet feeding
- Variable speed control up to 10 ft/min
- Compact floor-model footprint for small and mid-size shops
Specifications
| Specification | Detail |
|---|---|
| Maximum Sheet Size | 13" x 19.7" (33.02 cm x 50.038 cm) |
| Paper Thickness | 100-300 gsm (film-dependent) |
| Lamination Thickness | 1.5, 3 & 5 mil* |
| Laminating Modes | Encapsulation or trim-to-bleed |
| Cutting Method | 2 manual slitters + 1 crosscutter |
| Feeding Method | 2" vacuum pile feeder |
| Speed | Variable, up to 10 ft/min |
| Floor Model | Yes |
| Electrical | 110-130V, 60Hz, 15A |
*Film weight varies with mode. Warranty: 3 years (excludes consumables).
Applications
- Short-run marketing sheets and flyers
- Menus, covers, and durable laminated materials
- Pouch lamination for ID cards and badges
- Small format cards and inserts trimmed to bleed
- Light embellishment work with compatible films
Available options
- Gloss, matte, and soft-touch film selections
- Compatible specialty laminating rolls
- Custom encapsulation widths
Benefits
- Small footprint with professional-grade output
- Efficient film usage reduces consumable costs
- Touchscreen interface simplifies operation and training
- Consistent quality on coated and digital stocks
- Good value for low-to-mid-volume lamination work
About Graphic Whizard PT finishing
Graphic Whizard builds the PT line for digital print shops that finish short runs in house. The range covers laminating, slitting, cutting, creasing, and folding across models like the PT33LSC Micro, the PT331SCC, and the PT335. Mid-State Litho is an authorized Graphic Whizard dealer and stocks the RFID laminate film these machines require.
How to choose a Graphic Whizard PT finisher
Mid-State Litho carries the PT finishing range. Match the machine to your in-line lamination need, sheet size, daily volume, and any creasing or folding needs.
- PT33LSC Micro (this machine): laminate, slit, and cut. Best when lamination plus cut-to-bleed is the priority.
- PT33SC and PT331SCC: slit, cut, and crease for business cards and multi-up sheets.
- PT335SCC B and PT8336SCC: higher-capacity slitter, cutter, creaser systems.
- PT335 CKF and PT335 AKF: crease, knife, and fold configurations.
Browse the wider range on our laminating machines and bindery and finishing equipment pages, and stock up on laminate film.
Why buy the PT33LSC Micro from Mid-State Litho
Mid-State Litho has sold and serviced digital finishing equipment since 1984, 42 years. We are an authorized Graphic Whizard dealer, we stock the RFID laminate film the PT33LSC requires, our technicians are factory trained, and we cover Michigan and the Great Lakes for install and service. Financing is available. For setup, film, or a quote, use our service and support team or contact us.
Frequently asked questions
What does the Graphic Whizard PT33LSC Micro do?
It laminates, slits, and cuts in one pass for short-run digital work, with cut-to-bleed output.
What is the maximum sheet size?
13 by 19.7 inches (33 by 50 cm).
Does it do single or double sided lamination?
It handles 2-sided pouch encapsulation as well as flush cut single-sided film.
Does it need special film?
Yes. It uses Graphic Whizard RFID-chipped laminate film, which Mid-State Litho supplies.
Is it a floor model, and does Mid-State Litho install it?
It is a floor model with an automatic vacuum pile feeder. Mid-State Litho handles delivery, setup, and operator training.
We deliver it, install it, train your team and keep it running.
This is not a drop-ship. Our factory-trained technicians install on site, train your operators, and back it with same-day and next-day service across Michigan and the Great Lakes.
Install & train
On-site setup and operator training included.
Same / next-day service
Fast response across the Great Lakes.
Precision machining
Replacement parts fabricated in-house.
Financing
Lease and purchase options available.
