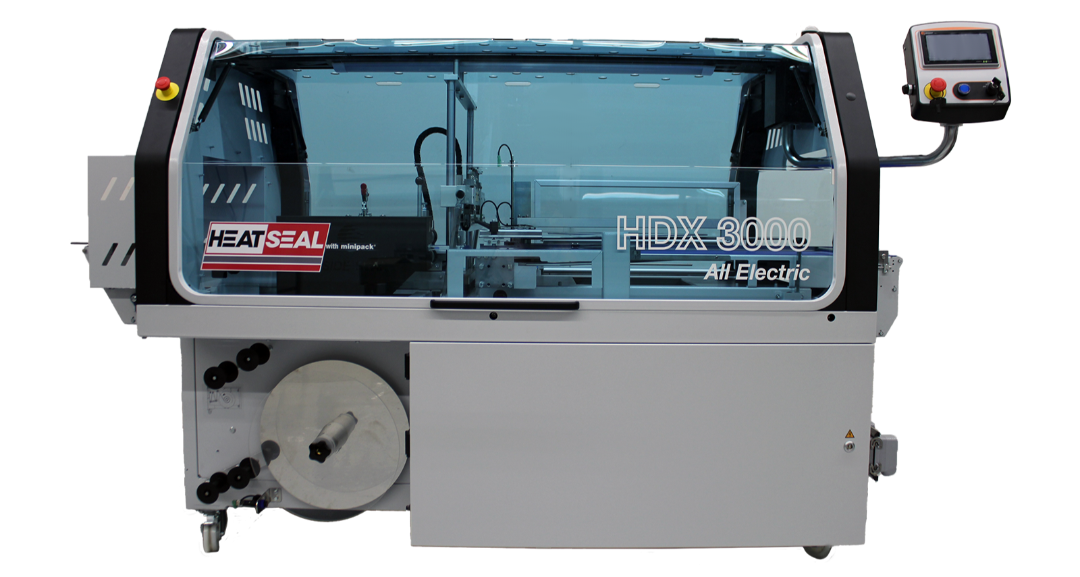

Heat Seal HDX-3000 All-Electric Side Seal Machine

The HDX 3000 is a state-of-the-art, all-electric automatic side sealer designed for efficiency and precision in packaging. This machine eliminates the need for air, featuring a brushless servo motor-controlled hot knife seal system for consistent and reliable sealing.

See the full spec sheet here

Key Features:

  • Interlocked Acrylic Guard Door: Ensures easy access while maintaining safety.
  • Motorized Adjustments: Includes motorized movement of the inverting head, seal height, seal opening, and inverting triangle height for versatile packaging needs.
  • Variable Conveyor Speeds: Adjustable from 20 to 100 feet per minute with a variable frequency AC drive.
  • User-Friendly Controls: Swing arm control panel and plug-and-play setup for straightforward operation.
  • Enhanced Sealing: Adjustable seal force and cooling for polyethylene ensure high-quality seals.
  • Extended Belts: Features extended infeed and outfeed belts for improved handling.
  • Durable Construction: Made from powder-coated steel for longevity and durability.

Additional Features:

  • FDA Approved Belts: Safe for food packaging.
  • Adjustable Film Perforators: Two individually adjustable film perforators for customization.
  • Easy Thread Scrap Rewind: Includes scrap break and scrap film alarms for efficient waste management.
  • Illuminated Work Area: Provides better visibility for operators.
  • Mobility and Stability: Equipped with casters and leveling pads.
  • Warranty: Comes with a two-year limited warranty.
  • Recipe Storage: Simple recipe storage for quick setup and changeovers.

Specifications:

  • Seal Area: 15.5” W, ∞” L (400mm W)
  • Film Capacity: 27.5” W, 11.75” OD (700mm W, 300mm OD)
  • Conveyor Speed: Variable 20 – 100 FPM (6-30 mpm)
  • Production Rate: 0 – 40 PPM, dependent on product and film size
  • Maximum Product Dimensions: ∞” L, 15.5” W, 9.25” H (∞” L, 400mm W, 240mm H)
  • Power Requirements: 208-240 VAC, single phase, 10.5A
  • Conveyor Height: 34.8” (880mm)
  • Overall Dimensions: 100” L, 49” W, 62” H (2518mm L, 1240mm W, 1558mm H)
  • Weight: 1940 lbs. (880 kg)

Available Accessory Options:

  • Infeed and outfeed conveyors
  • Printer
  • Photocell kit for printed film
  • Electric film hole punch
  • Irregular shape product photo cell kit (5pc)
  • Product guides for unstable products
