HDX 2000 Automatic L-Bar Sealer
HDX 2000 Automatic L-Bar Sealer
See a layout diagram for this system here

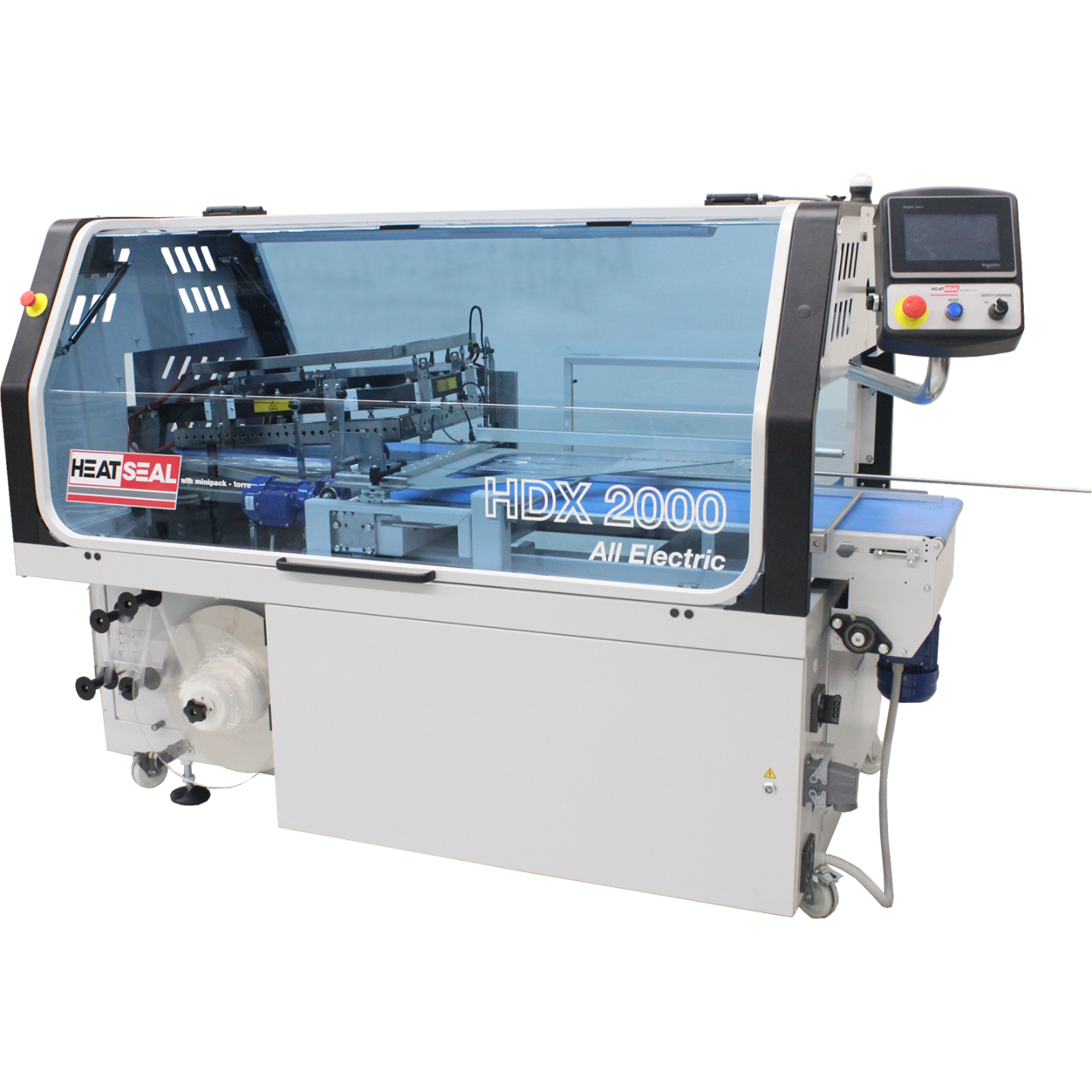

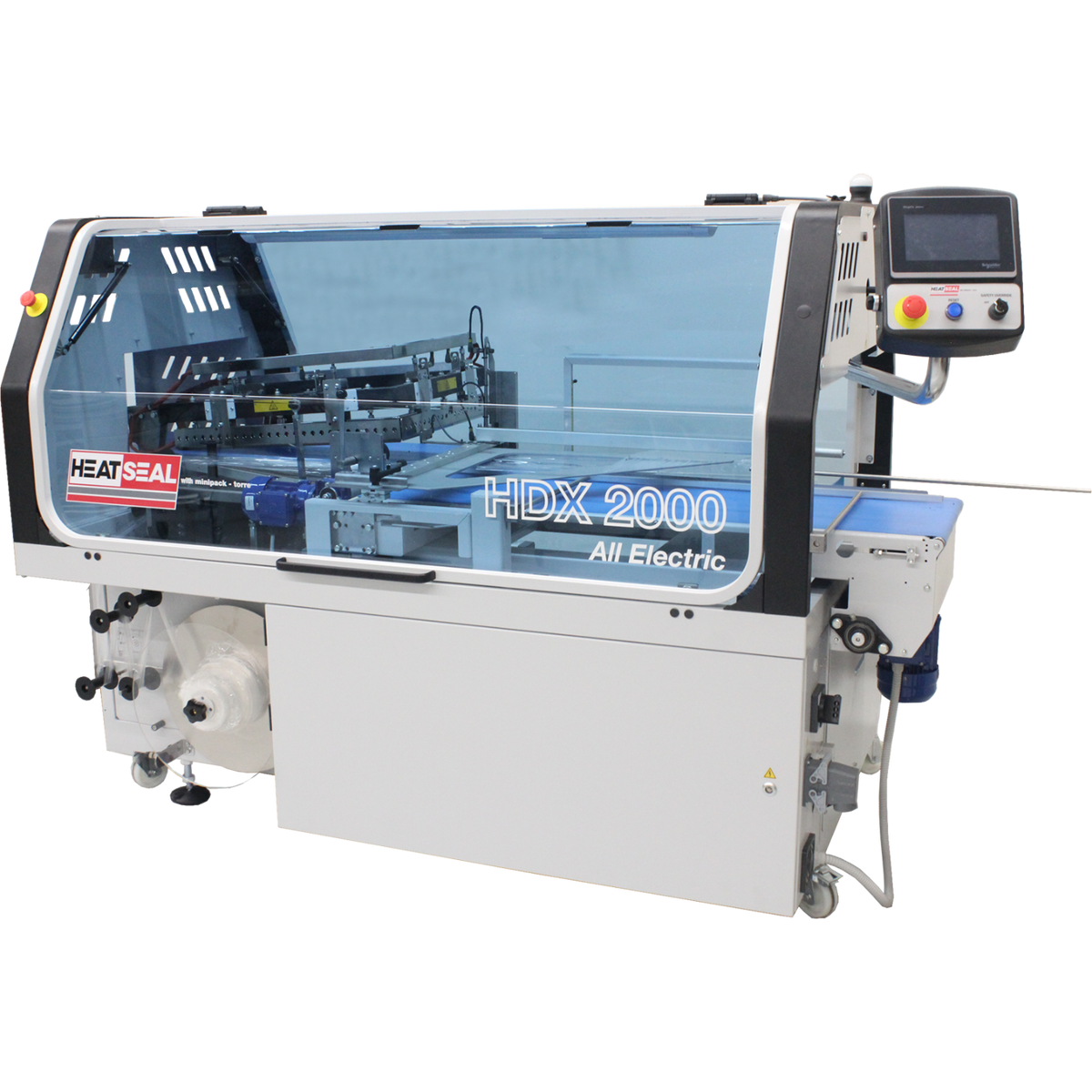

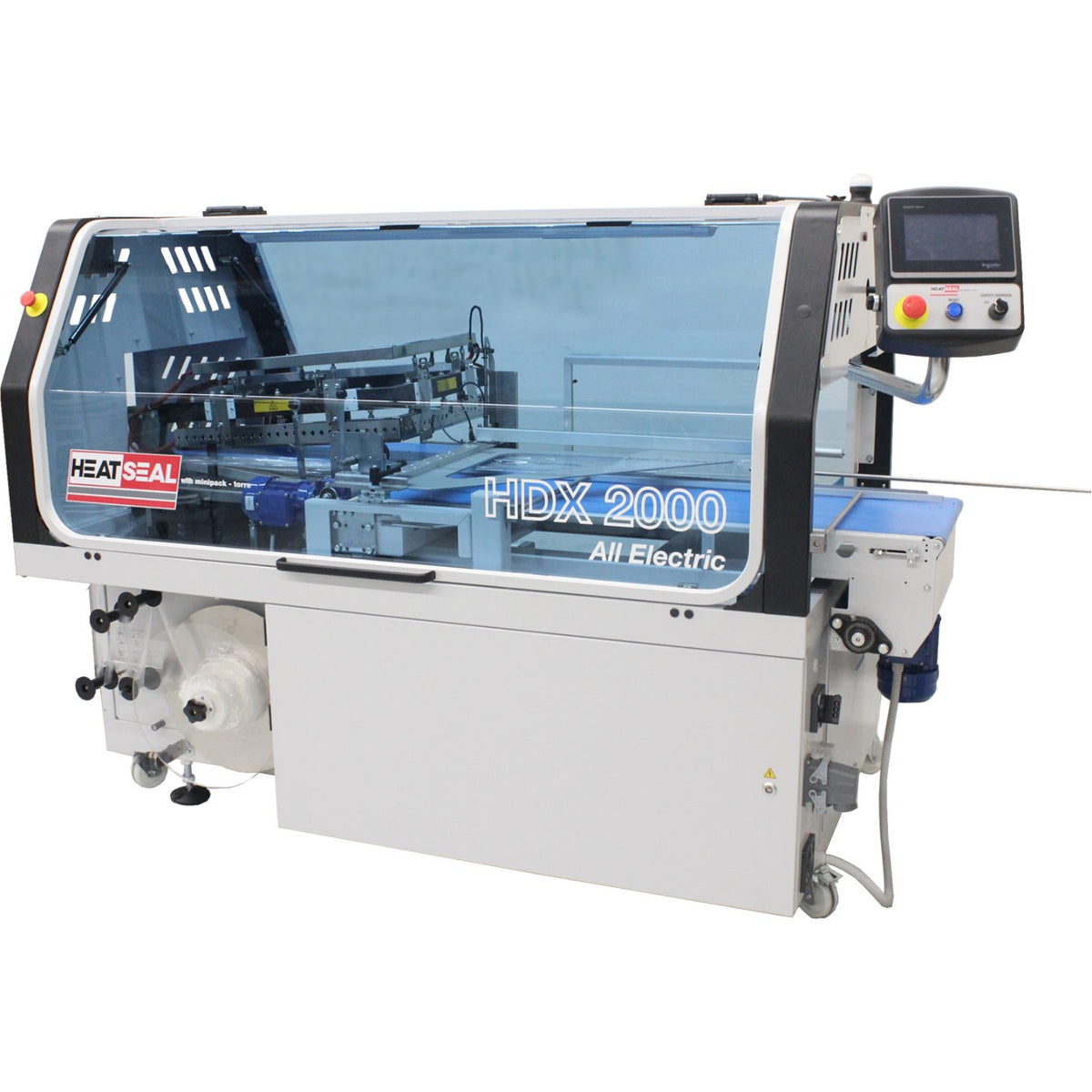

The HDX2000 is a high-performance, all-electric automatic L-bar sealing machine engineered for fast, reliable shrink wrapping in production environments where consistency, safety, and automation are paramount. With a 15.5” x 23” seal area, variable speed conveyors, and advanced controls that support photo job memory, recipe storage, and seal force tuning, the HDX2000 is the perfect solution for mid- to high-volume shrink wrap operations—without the need for compressed air.
Key Features
🔷 All-Electric Operation – No compressed air required; plug-and-play installation.
🔷 15.5” x 23” Seal Area – One-piece hot knife blade with motorized seal jaw and triangle height adjustments.
🔷 Recipe Storage with Photo Memory – Store up to 64 job settings with photos, multi-language UI, and password protection.
🔷 Swing-Arm Control Panel – Operate from either side of the machine for layout flexibility.
🔷 Dual Gull-Wing Safety Guards – Interlocked with audible/visual alarms for operator safety.
🔷 Horizontal & Vertical Sensors – Ensure precise detection for a wide range of product types.
🔷 Scrap Rewind System – Includes break and full alarms to maximize uptime.
🔷 Seal Cooling Mode – Optimized for polyethylene film sealing.
🔷 FDA Belts – Approved for use in food-safe environments.
🔷 Two-Year Limited Warranty – Reliable support and durability for industrial usage.
Specifications
| Specification | Details |
|---|---|
| Seal Area | 15.5” W x 23” L (400 mm x 600 mm) |
| Max Product Dimensions | 23.5” L x 15.5” W x 9.4” H (600 x 400 x 240 mm)* |
| Film Capacity | 27.5” W x 11.75” OD (700 mm x 300 mm) |
| Production Speed | 0 – 45 packages per minute (dependent on film/product) |
| Conveyor Speed | 20 – 100 ft/min (6 – 30 m/min) |
| Power Requirements | 208–240 VAC, single phase, 10.5A |
| Conveyor Height | 34.25” – 36.25” (870 – 920 mm) |
| Machine Dimensions | 100” L x 49” W x 62” H (2518 x 1240 x 1558 mm) |
| Machine Weight | 1,265 lbs (573 kg) |
*Maximum dimensions cannot be used simultaneously.
Applications
📚 Book & Printed Material Packaging – Clean shrink wraps for books, binders, or reports.
📦 Industrial & Kit Packaging – Prepares parts kits, hardware sets, and assembled tools.
🛍 Retail Ready Products – Wrapping for games, electronics, cosmetics, and multipacks.
🥨 Food & Tray Packaging – With FDA belts and seal cooling, ideal for prepackaged bakery or snack goods.
Available Options
📍 Infeed & Outfeed Conveyors – Streamline product flow into and out of the sealer.
📍 Clear Product Sensor – For transparent or difficult-to-detect packaging.
📍 Printed Film Registration Sensor – Ensures precise printed film alignment.
📍 Electric Film Hole Punch – Adds ventilation holes to shrink film.
📍 Product Guides – For stable sealing of small or unstable items.
📍 Inline Printer – For adding batch or branding info directly on packaging.
Benefits
✅ Reduces labor costs with fully automatic operation and fast cycle speeds.
✅ No compressor required, making it ideal for nearly any facility.
✅ Improves consistency with repeatable job storage and programmable sealing controls.
✅ Built for safety and reliability with UL-compliant design and interlocked guarding.
✅ Compatible with a wide range of films, including polyolefin and polyethylene.
