Heat Seal HDX250A
Heat Seal HDX250A automatic L-bar sealer and shrink tunnel combo. Delivery, install, training and service from Mid-State Litho.
Ask a Question
Specs, compatibility, install, supplies—ask anything. A finishing specialist will reply quickly.
Downloads
Details & specifications
The Heat Seal HDX250A is an automatic combo shrink system that pairs a 20 by 20 inch L-bar sealer with a MaxAir shrink tunnel for fast, hands-free shrink packaging. As an authorized Heat Seal dealer, Mid-State Litho supplies the HDX250A for operations packaging print, kits and products at volume, and we deliver, install, train and service every unit.
Access a layout diagram for this system here
Automatic Heavy Duty Combo Shrink System

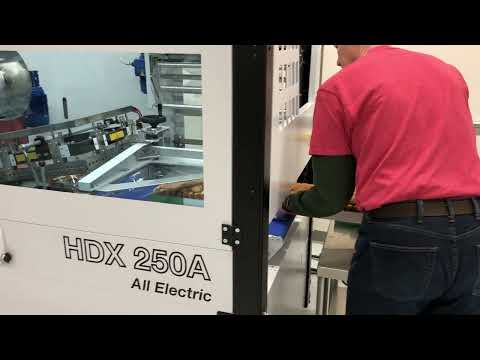

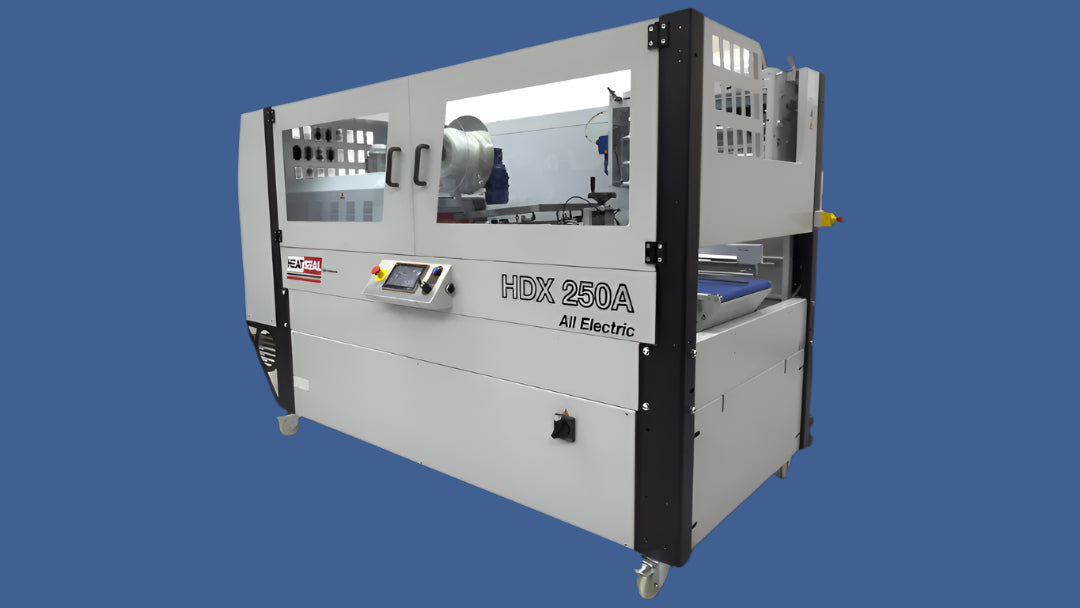

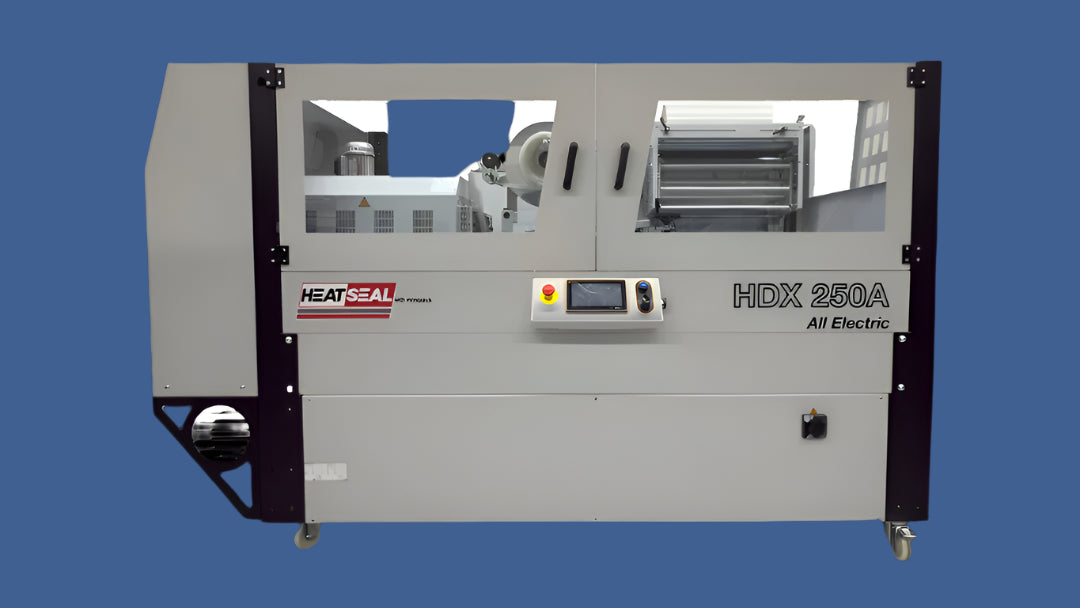

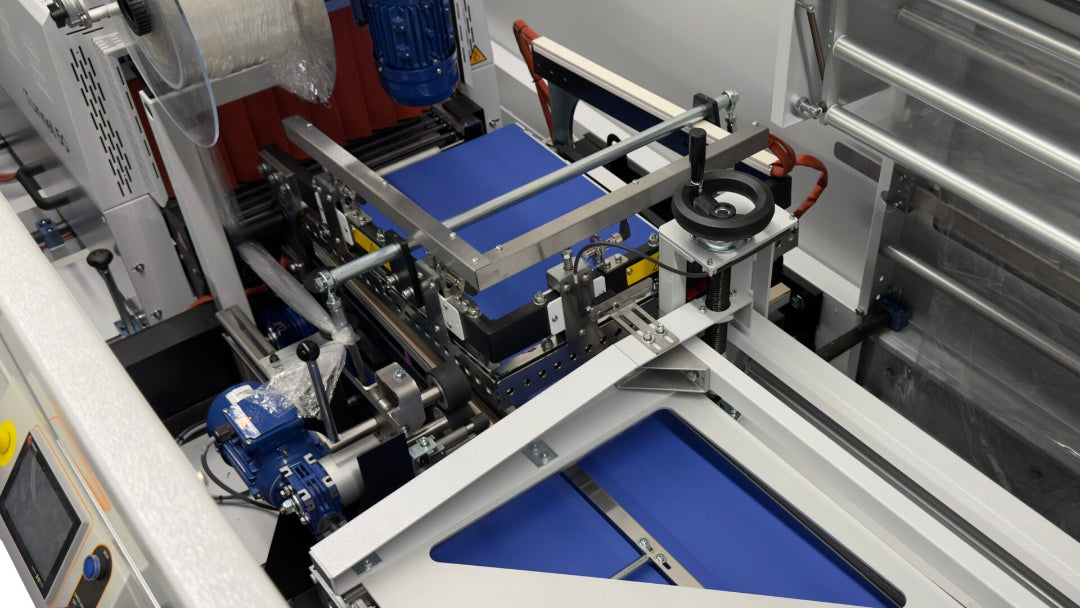

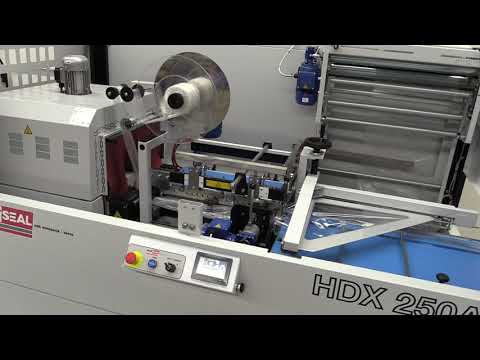

The HDX250A is an all-electric, automatic shrink wrap combo system designed for medium- to high-volume industrial packaging environments. With a 20” x 20” seal area, integrated closing conveyor, and fully adjustable sealing and tunnel parameters, this machine delivers hands-free shrink packaging in a compact footprint. The HDX250A includes a 7” touchscreen, recipe storage, and supports a wide variety of product sizes-all without requiring compressed air.
Key Features
🔷 All-Electric Automation - No air required for sealing or tunnel operation, reducing infrastructure costs.

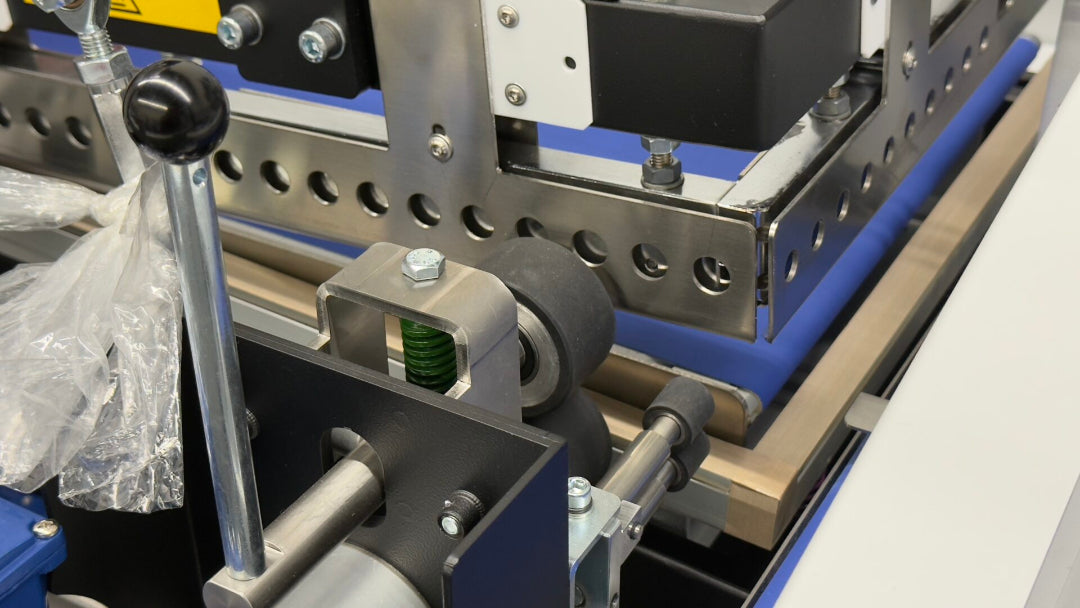

🔷 20” x 20” Seal Area - One-piece blade with adjustable pressure, seal height, and closing conveyor.
🔷 7” Color Touchscreen - Stores up to 128 job recipes, multi-language interface, and USB/SD ports.
🔷 Dual Emergency Stop Buttons - Enhanced operator safety and regulatory compliance.
🔷 Horizontal & Vertical Sensors - Accurately detect product position for seamless automation.

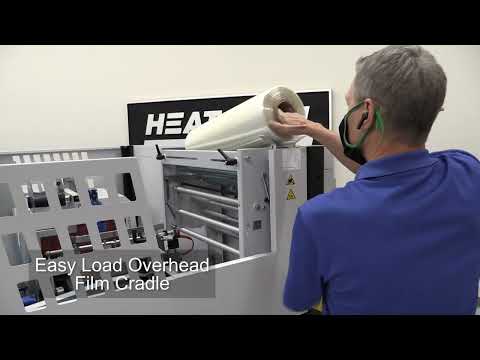

🔷 Overhead Scrap Rewind - Keeps sealing area clear for continuous performance.

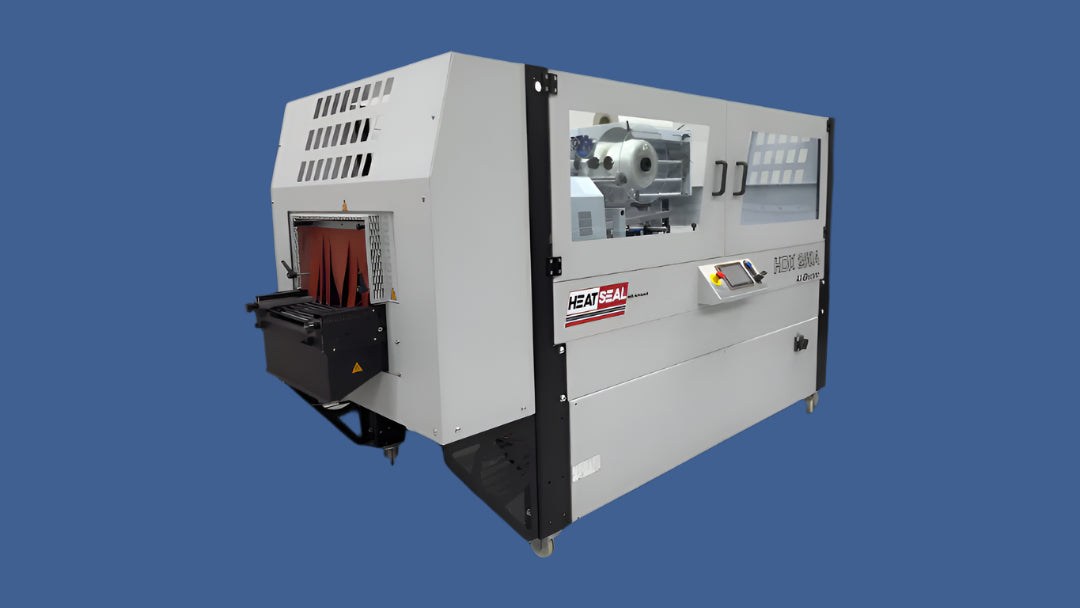

🔷 MaxAir Tunnel with Adjustable Louvers - 360° shrink with variable-speed roller conveyor.
🔷 Compact Steel Frame with Casters - Easy mobility, built for industrial durability.
🔷 FDA-Grade Belts - Suitable for clean environments and sensitive packaging.
🔷 Two-Year Limited Warranty - Built for long-term ROI with full manufacturer support.
Specifications
| Specification | Details |
|---|---|
| Seal Area | 20” W x 20” L (508 x 508 mm) |
| Tunnel Chamber | 18” W x 10” H x 23” L (458 x 254 x 585 mm) |
| Max Product Size | 15.5” W x 16.5” L x 4.5” H (400 x 420 x 120 mm) |
| Film Roll Capacity | 23.5” W x 11.75” OD (600 mm W x 300 mm OD) |
| Production Speed | 0 - 20 PPM (depends on product/film) |
| Power Requirements | 208-240V AC, 3-phase, 22A |
| Conveyor Height | 34.25” (870 mm) |
| Machine Dimensions | 95” L x 47” W x 67” H (2390 x 1190 x 1680 mm) |
| Weight | 1,496 lbs (677 kg) |
Applications
📦 Industrial Parts & Kits - Clean shrink packaging for tools, hardware, and assemblies.
📚 Printed Products - Ideal for books, manuals, and boxed stationery.
🛍 Retail Display Packs - Delivers clear, wrinkle-free wraps for bundles, gift sets, and multipacks.
🍪 Food & Confectionery - Compatible with FDA-approved belts for tray-wrapped baked goods.
Available Options
📍 2’ Gravity Exit Conveyor - Smooths downstream product handling.
📍 PTFE Mesh Tunnel Belt Overlay - For delicate or non-stick film requirements.
📍 Gravity Turn Conveyors - Direct finished products with minimal footprint.
📍 Flighted or Belted Infeed Conveyors - Automates product delivery for consistent sealing.
Benefits
✅ Fully automated shrink process reduces labor and ensures repeatable packaging.
✅ All-electric design lowers operational costs by removing air requirements.
✅ Easy setup and job recall via touchscreen with up to 128 recipe saves.
✅ Compact but powerful-handles a wide range of product sizes in limited floor space.
✅ Built-in diagnostics and alarms improve uptime and operator confidence.
Heat Seal HDX250A Overview
The Heat Seal HDX250A is an automatic L-bar sealer and shrink tunnel system for packaging printed product, kits and media at production volume. Mid-State Litho is an authorized Heat Seal dealer with factory-trained service and a supply of film and parts across Michigan and the Great Lakes.
L-Bar Sealer Plus Shrink Tunnel

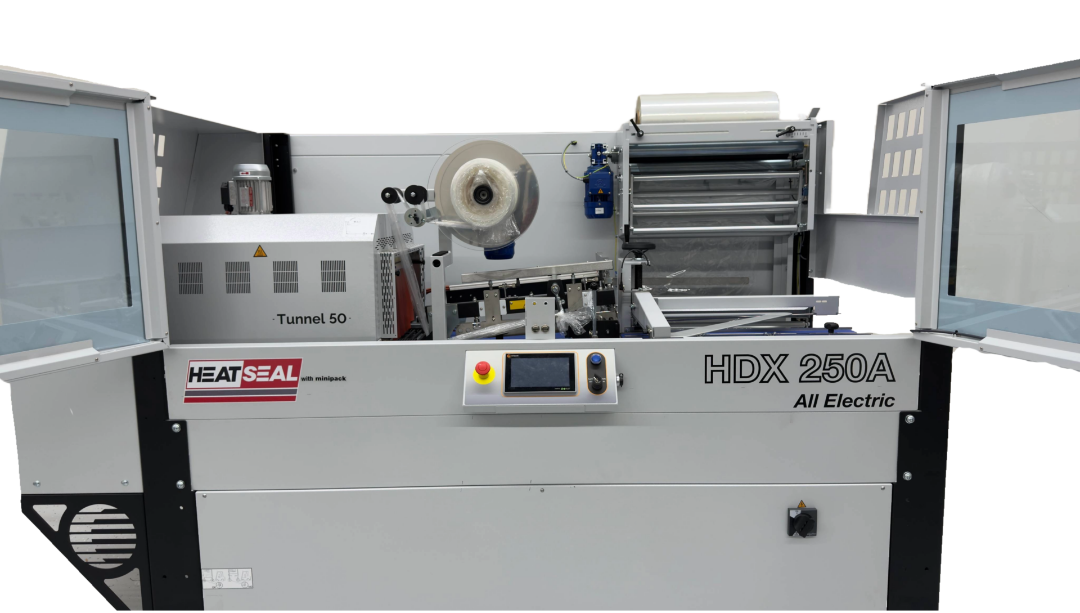

The HDX250A combines two steps into one inline system. The L-bar sealer wraps and seals the film pouch around the product, and the heat tunnel then shrinks that film tight to the package for a clean, finished wrap. It suits printed product, kits, media and retail-ready packages, and runs standard shrink film. Our team confirms the recommended film type and maximum package size for your work against the current Heat Seal specification.
Frequently Asked Questions
What does the Heat Seal HDX250A do?
It is an automatic L-bar sealer and shrink tunnel that wraps and shrinks film around printed product, kits and packages.
What is the difference between an L-sealer and a shrink tunnel?
The L-bar sealer cuts and seals the film around the product; the heat tunnel then shrinks the film tight. The HDX250A combines both.
What film does it use?
It uses standard shrink film. Our team confirms the recommended film type and thickness range for your packaging against the current Heat Seal specification.
Does Mid-State Litho stock shrink film and parts?
Yes, and we provide factory-trained service across Michigan and the Great Lakes.
Is financing available?
Yes. Equipment financing and leasing are available; contact us for terms.
