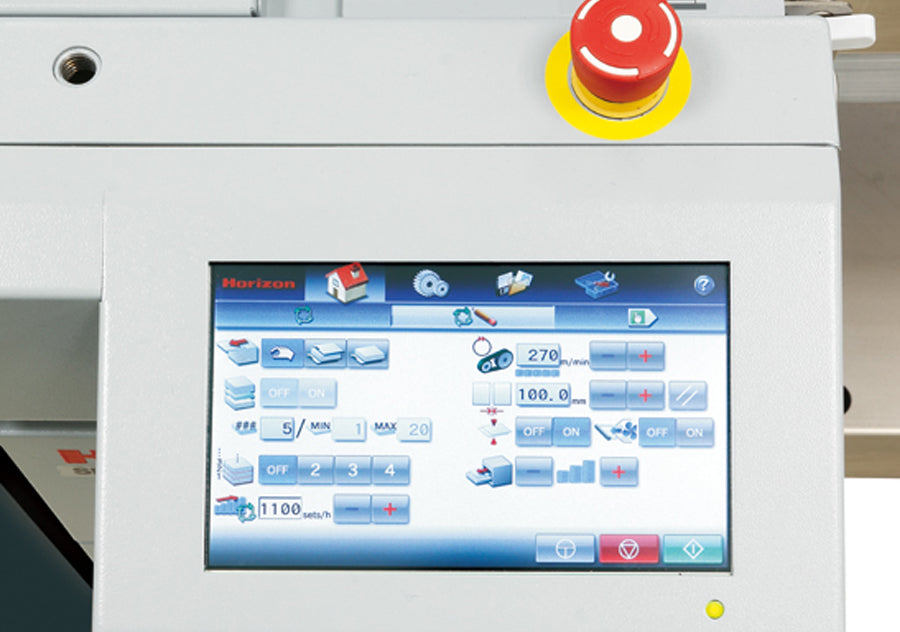

  • HOF-400 Control Panel

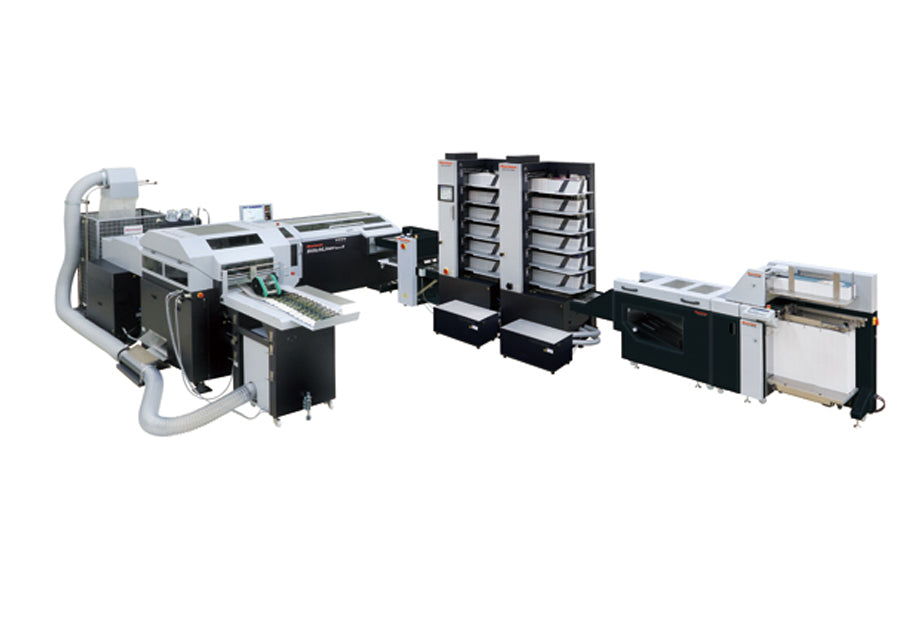

  • HOF-400 Inline Setup
1 4

Standard Horizon

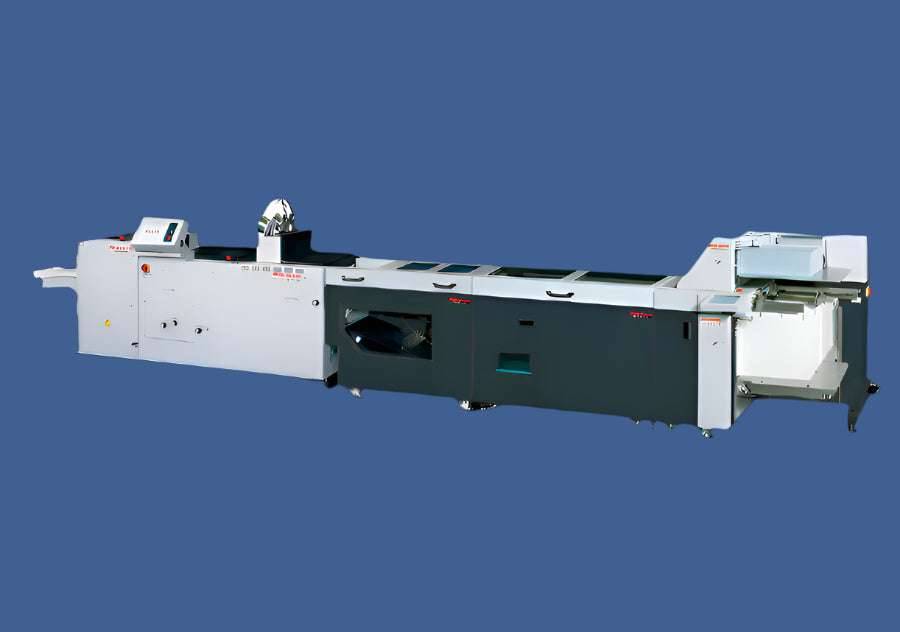

High Speed Offline Feeder HOF-400

High Speed Offline Feeder HOF-400

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

Horizon HOF-400 Features:

Brochure Here

The HOF-400 provides flexible system configurations such as
cover feeding, sheet insert on, variable page count, bleed trimming
and creasing for digital printing. The HOF-400 finishing system can also be connected with the finishing devices for the offset outputs to process both digital and offset print: all through one efficient system.

  • Finishing device for digital print: Digitally printed Sheets are fed reliably and with care from the HOF-400 to the saddle-stitching system. A standard mark sensor enables variable sheet count documents to be handled with integrity and verification.
  • Finishing device for offset print: A VAC series collator can be connected in line, for processing of conventional offset printed work.
  • High speed: The HOF-400 can feed at a speed of 25,000 sheets per hour (A# / 11" x 17") and 35,000 sheets per hour (A4 SEF / 8.5" x 11"). This high-speed feeding is capable of handling the output of multiple printers.
  • Various modular options: The HOF-400 is compatible with a wide variety of system configurations such as sheet feeding, cover feeding, accumulating, bleed trimming and center creasing depending on your needs.
  • Flexible booklet making system selection: The HOF-400 can be connected to the SPF-200A, SPF-200L, and Stitch Liner series.

Technical Specifications

 Sheet Size Max.
356 x 610 mm or 14.0” x 24.0”
Min.
203 x 203 mm or 8.0” x 8.0”
Sheet Weight Range Normal Paper: 52 to 157 gsm
Coated Paper: 73 to 157 gsm
* When you use thin sheets, you need
to decrease the speed depending on
the sheet size.
* The machine can feed thick sheets
(157 through 209 gsm), but the feed
speed will decrease.
Sheet Pile Height on Feed Tray Max. 620 mm or 24.4”
Production Speed

Max.
A3: 25,000 sheets per hour
A4 SEF: 35,000 sheets per hour
A4 LEF: 45,000 sheets per hour
(When the sheets are processed
one by one.)

4,000 booklets per hour (Without Creasing, 16-page, A4 size booklet)
3,200 booklets per hour (With Creasing, 16-page, A4 size booklet)
5,000 booklets per hour (Without Creasing, 16-page, A5 size booklet)
4,000 booklets per hour (With Creasing, 16-page, A5 size booklet)
(The production speed is limited depending on the stitcher.)
Voltage/Frequency 3-Phase 200 to 220 V, 50 Hz
or 60 Hz
3-Phase 380 / 400 / 415 V, 50 Hz
or 60 Hz
Machine Dimensions

HOF-400:
W960 x D740 (1,050 mm or 41.4”
including the blower box) x H936
mm or W37.8” x D29.2” x H36.9”

Blower Box:
W553 x D305 x H350 mm
or W21.8” x D12.0” x H13.8”
