Horizon HT-300 Book Trimmer
Horizon HT-300 Book Trimmer
Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:
How to Purchase This Item:
How to Purchase This Item:
- Web: Sales Contact Form
- Call: 1-800-343-4231
- Email: sales@midstatelitho.com
- Text: (810) 238-7370

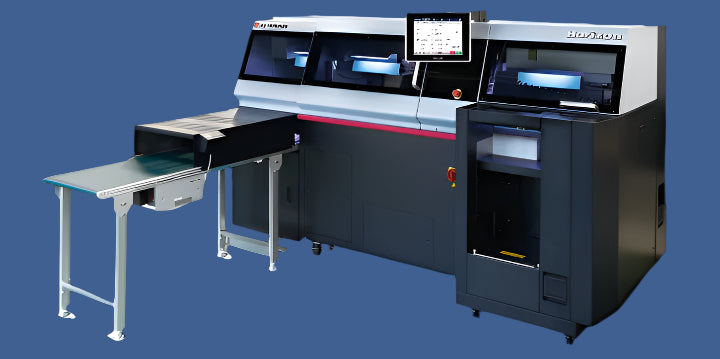

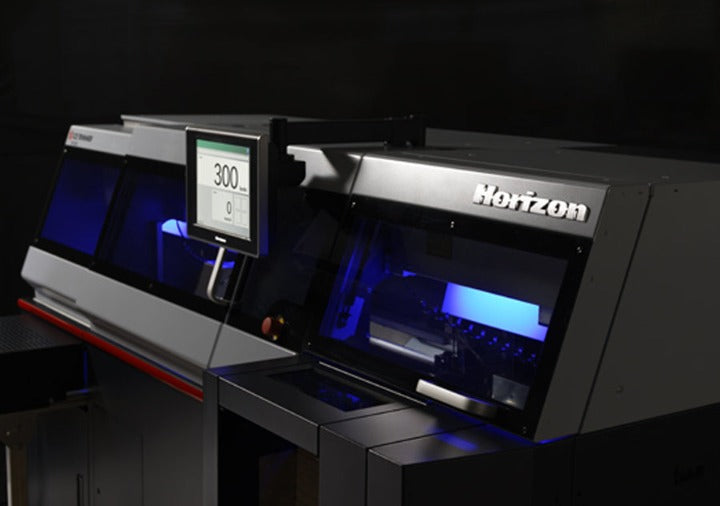

The Horizon HT-300 is a next-generation three-side trimmer designed to optimize productivity and efficiency in book trimming. With fully automated setup and precision automation, it is perfect for high-volume book production. Offering flexibility for both inline and offline production, the HT-300 ensures consistent and high-quality trimming results.
Key Features:
- High Speed: Processes up to 300 cycles per hour with fully automated setup, boosting productivity.
- High Quality: Precision automation ensures accurate and clean cuts with features like auto book thickness measurement and table angle adjustment.

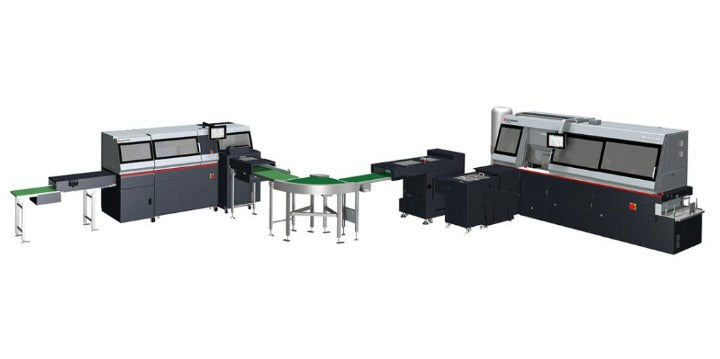

- Labor Saving: Inline connectivity with Horizon perfect binders reduces labor costs while enhancing productivity.

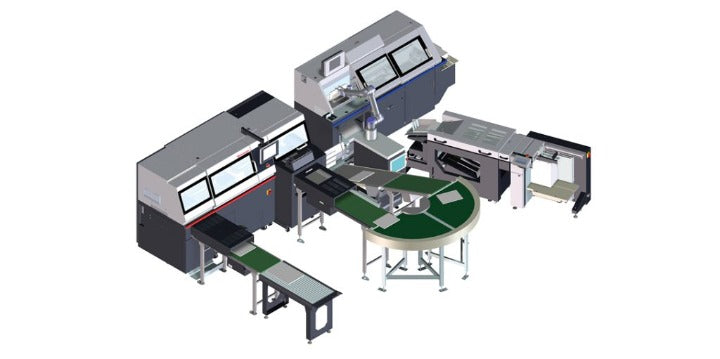

- Configuration Flexibility: Multiple feeder and delivery options allow for adaptable configurations for inline or offline production.
- Application Flexibility: Includes flap cover and corner trimming as standard features, enabling value-added products.
- Status Recognition: LED lights indicate operational status and serve as working lights when the cover is open.

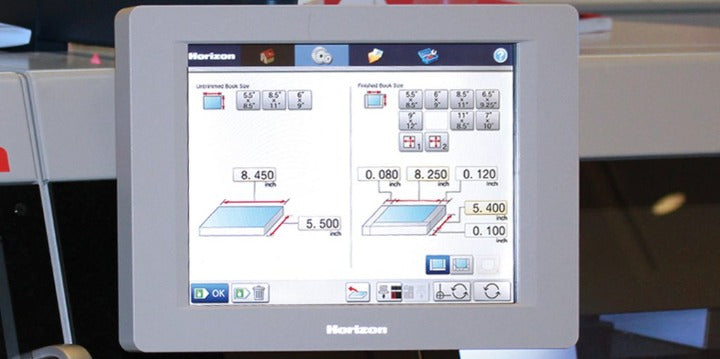

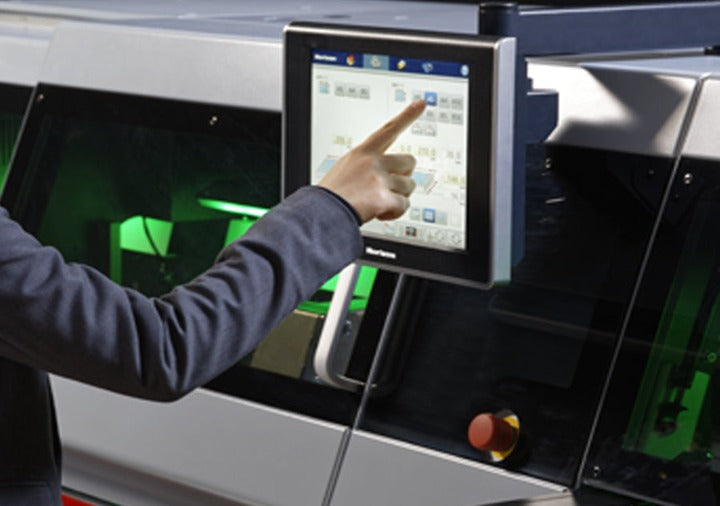

- User-Friendly Control Panel: The 12.1-inch color touchscreen offers icon-based operation and stores up to 999 job settings for easy repeatability.
Specifications:
| Specification | Details |
|---|---|
| Untrimmed Book Size | Standard Tables: |
| Table A (Portrait): Max: 350 × 235 mm (13.775" × 9.250"), Min: 277 × 206 mm (10.910" x 8.115") | |
| Table B (Portrait): Max: 350 × 235 mm (13.775" × 9.250"), Min: 204 × 136 mm (8.035" x 5.355") | |
| Table C (Landscape): Max: 320 × 350 mm (12.595" × 13.775"), Min: 211 × 275 mm (8.310" x 10.830") | |
| Table K (A6): Max: 320 × 219 mm (12.595" × 8.620"), Min: 152 × 107 mm (5.985" x 4.215") | |
| Trim Width | Max: 99.9 mm (3.930"), Min: 2 mm (0.080") |
| Trim Height | Max: 51 mm (2.005"), Min: 1 mm (0.040") |
| Production Speed | Up to 300 books per hour |
| Finished Book Size | Configuration dependent |
| Voltage/Frequency | 3-Phase 200 to 220 V, 50/60 Hz |
| Machine Dimensions | 895 mm (W) x 540 mm (D) x 835 mm (H) (35.3" x 21.3" x 32.9") |
Benefits:
- Efficiency: High-speed operation and automated setup minimize downtime and maximize productivity.
- Versatility: Adapts to various book sizes and trimming requirements, making it ideal for diverse applications.
- Ease of Use: Intuitive touchscreen controls simplify operation and allow for quick adjustments.
- Precision: Automated setups and precision engineering deliver professional, consistent trimming results.
Applications:
- Book Trimming: Excellent for high-volume trimming tasks in commercial print shops and publishing houses.
- Document Finishing: Provides precise trimming for various documents, ensuring professional results.
