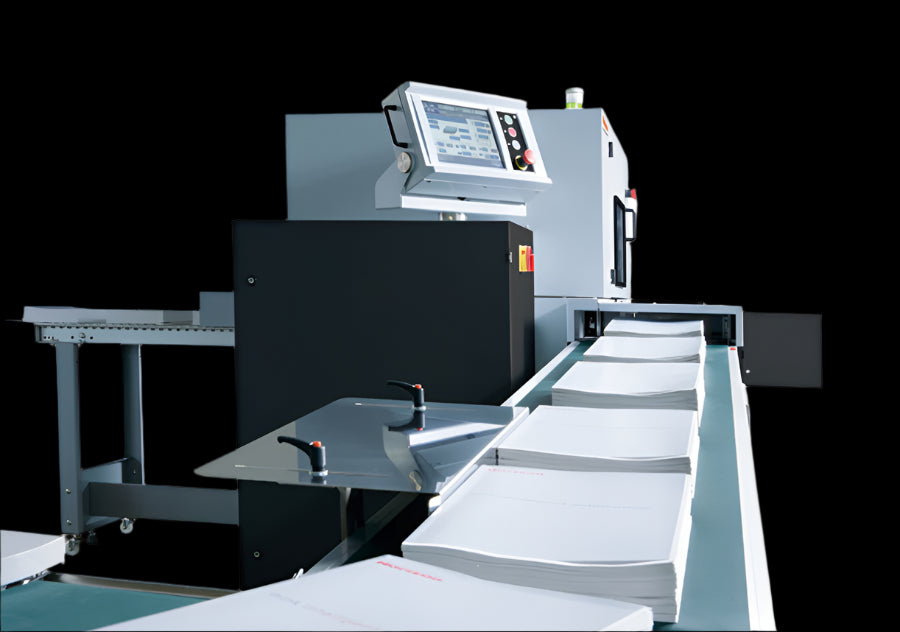

• HT-80 Exit Conveyor

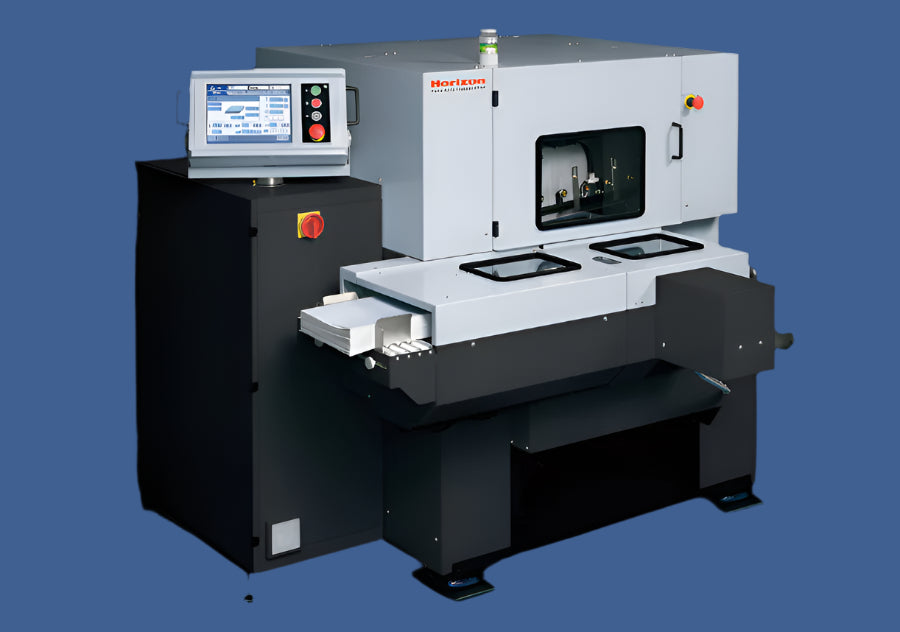

  • HT-80 Trimmer Machine

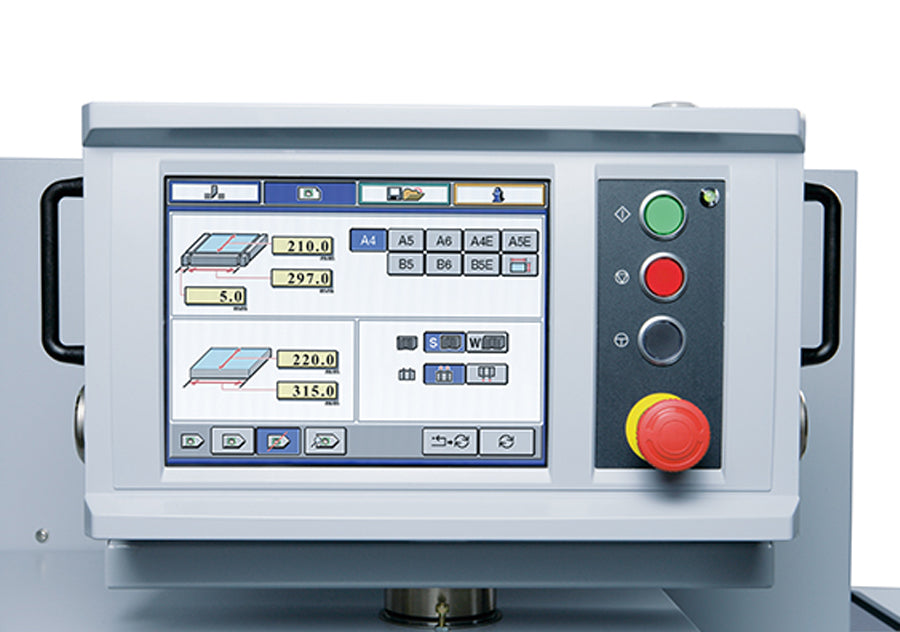

  • HT-80 Control Interface
1 3

Standard Horizon

Horizon Three-Knife Trimmer HT-80

Horizon Three-Knife Trimmer HT-80

Please note that this is an item that must be quoted before sale. Any orders placed will be voided, and a formal quote provided. Please contact us:

How to Purchase This Item:

View full details

The Horizon HT-80 is an advanced automated three-knife trimmer designed for precision and efficiency in book trimming. This versatile machine can operate both off-line and in-line, making it perfect for high-volume book production. With user-friendly operation and exceptional accuracy, the HT-80 ensures professional-quality trimming for a wide range of book sizes.

Key Features:

  • Automated Set-Up: Quickly configure most sections by inputting untrimmed and finished sizes into the intuitive color touchscreen for accurate changeovers.
  • Servo Motor Driven: Accurate positioning of the book block ensures precise trimming.
  • Book of One Production: Trims books of varying thickness but the same size simultaneously, enabling efficient book-of-one production.
  • High-Quality Finish: Heavy-duty construction and mechanisms deliver consistent, professional-quality results.
  • User-Friendly Control Console: The 10.4" color touchscreen simplifies operation with an intuitive interface.
  • In-Feed Section: Compresses books to remove air, enhancing trimming accuracy.
  • Trimming Section Control: Adjust knife height and fore-edge angle via the touchscreen, with strong air nozzles blowing away trimmings.
  • Chip Extractor (Optional): Efficiently manages waste during the trimming process.

Specifications:

Specification Details
Untrimmed Book Size Max: 330 x 330 mm (13” x 13”), Min: 145 x 105 mm (5.71” x 4.135”)
Finished Book Size Max: 300 x 300 mm (11.81” x 11.81”), Min: 139 x 99 mm (5.47” x 3.9”)
Trim Width Top-bottom: up to 30 mm (1.18”), Fore-edge: up to 30 mm (1.18”)
Trim Height 1 to 51 mm (0.04” to 2”)
Production Speed 400 to 1,000 cycles per hour
Voltage/Frequency 3-Phase 200 to 220 V, 50/60 Hz
Machine Dimensions 63.4” (W) x 102.8” (D) x 59.7” (H)
Compatible Perfect Binders BQ-470, SB-07, SB-09S

Benefits:

  • Efficiency: High-speed operation and automated setup reduce downtime and enhance productivity.
  • Versatility: Handles diverse book sizes and trimming needs, ideal for various applications.
  • Ease of Use: Intuitive touchscreen controls make operation straightforward.
  • Precision: Servo-driven adjustments and robust construction ensure consistent trimming accuracy.

Applications:

  • Book Trimming: Excellent for high-volume book trimming in commercial print shops and publishing houses.
  • Document Finishing: Provides precise trimming for various documents, ensuring professional-quality results.
