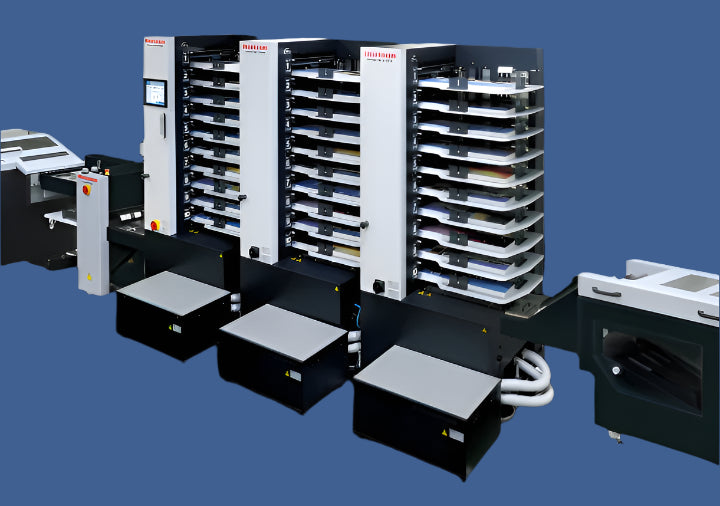

• Horizon VAC-L1000 air-suction collator with tower bins for high-speed, accurate sheet collation
  • Horizon VAC-L1000 Air-Suction Collator Video

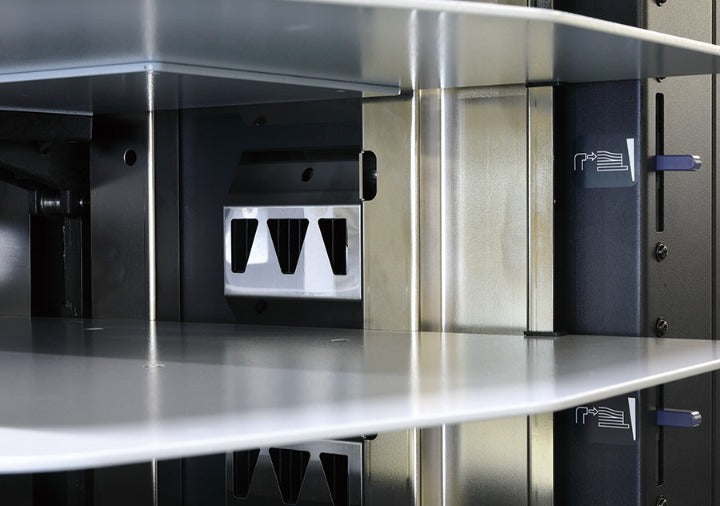

  • Tray view

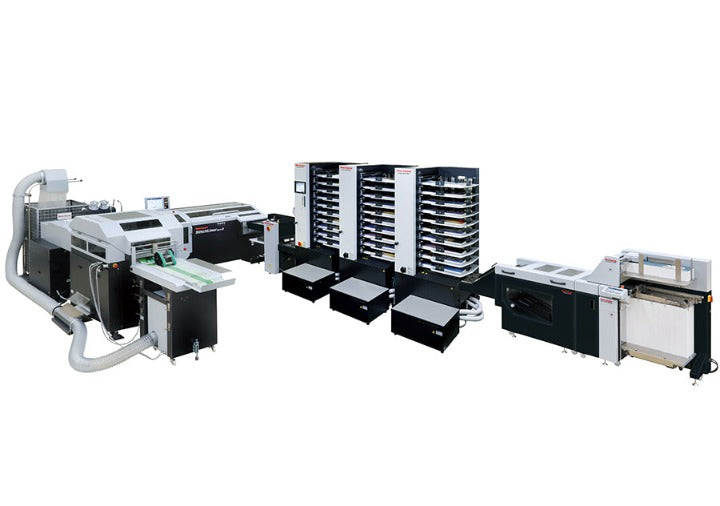

  • VAC-L1000 layout diagram 2
1 4

Standard Horizon

Horizon VAC-L1000 Air-Suction Collator

Horizon VAC-L1000 Air-Suction Collator

Item Number: VAC-L1000
View full details

Horizon VAC-L1000 Air-Suction Collator

The Horizon VAC-L1000 is a high-capacity, high-performance air-suction collator engineered to handle diverse paper stocks and enable seamless in-line bookletmaking. With up to 60 feed bins, speeds to 4,000 sets/hour, intelligent programming, and advanced suction rotor feeding, VAC-L1000 is built for environments demanding accuracy, scalability, and automation.

Key Features

🔷Suction rotor feeding — Consistent pickup for coated, uncoated, and signature stocks.

🔷Up to 60 bins — Scale from 10 to 60 bins across six towers for maximum throughput.

🔷Large sheet support — Up to 13.77″ × 24.01″ for A4 landscape booklet work.

🔷Double-feed detection — Infrared sensors and optional ultrasonic digital feed kit improve accuracy.

🔷Advanced job memory — Store 9 frequently used jobs for instant recall.

🔷Programmable modes — Dual Cover Feed, Block Feed, Preset Tabbing, Double Cycle, and more.

🔷Color touchscreen — Intuitive setup and graphical guidance; remote controller included.

🔷Workflow compatible — Inline with StitchLiner and SPF bookletmakers for end-to-end finishing.

🔷Energy efficient — Up to 22% lower power usage vs. earlier models.

🔷Stable airflow control — Bin-level blower adjustment for reliable separation.

Specifications

Specification Details
Feeding System Suction rotor
Sheet Size Range Min 5.83″ × 5.83″ (4.73″ w/ guide) | Max 13.77″ × 24.01″
Paper Weight Range 52.3–207 gsm (normal) | 73.3–207 gsm (coated)
Max Bin Stack Height 55 mm (2.16″), up to 11 kg (24.3 lb) per bin
Number of Bins 10–60 (modular, towers of 10)
Production Speed Up to 4,000 sets/hour (60 bins, A4 LEF)
Overlap Adjustment 4-step overlap (front/rear delivery)
Touchscreen Yes, color panel + remote controller
Voltage 208–240 V, single-phase
Dimensions per Tower W: 40.7″ (front) / 43.3″ (middle) / 43.8″ (rear) · D: 27.1″ · H: 77.3″
Pitch Between Towers 38.6″ (980 mm)

Applications

📚
Booklet collation — Feed sections for saddle-stitched or perfect-bound books.
📄
Document kitting — Pre-collated training materials, reports, or manuals.
🎨
Mixed media jobs — Combine coated, uncoated, folded, and tabbed sheets.
🧾
Variable set assembly — Insert covers, tabs, or signatures via programmed routines.

Available Options

📍
ST-60 / ST-40 Stackers — Offset or straight stacking with non-stop delivery.
📍
PJ-77 / PJ-77R Paper Joggers — Vibratory alignment before finishing.
📍
LG-1000 Landscape Kit — Supports A4 landscape up to 610 mm long.
📍
ESB-L1000 Side Blower — Enhances feeding for larger sheets.
📍
IC2-V600 Image Checker — Optical QC for paging errors and color variation.
📍
CTK-100 Right Delivery Kit — Enables right-side operation with a-towers.
📍
BC-20 Bypass Conveyor + SA-40 Sub Accumulator — Adds inline flexibility between collators and finishers.

Benefits


Modular, scalable platform grows from 10 to 60 bins.

Highly accurate feeding with double-feed and skew detection.

Long-sheet support for A4 landscape and folded signatures.

Seamless integration with Horizon bookletmakers for end-to-end automation.

User-friendly operation via color touchscreen and wireless remote.

Energy savings up to 22% versus earlier collator models.
