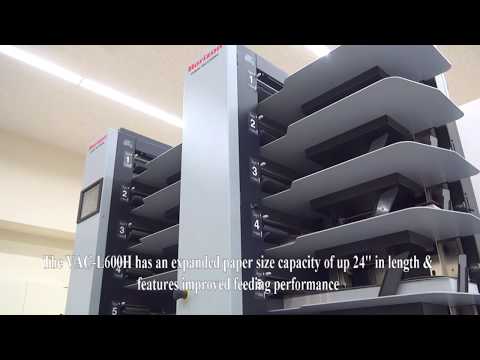

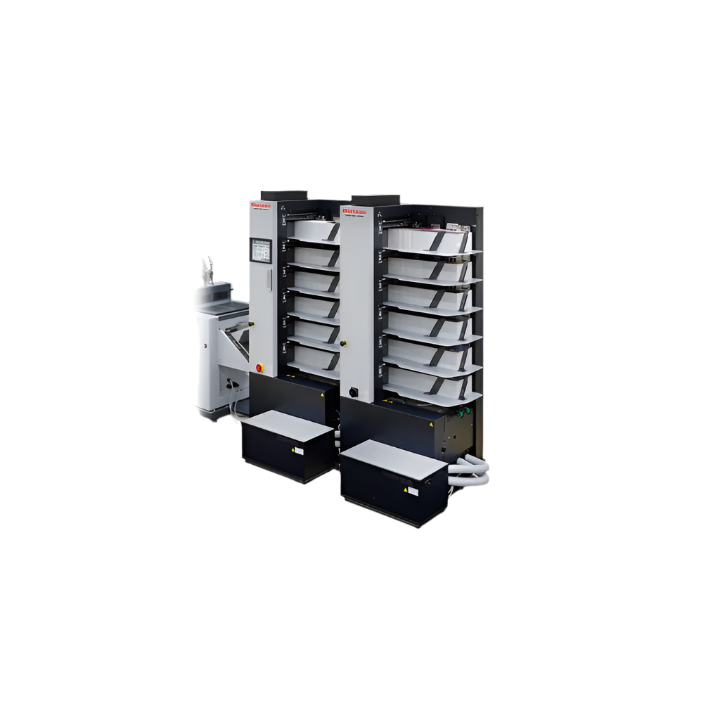

The Horizon VAC-L600H is a next-generation air-suction collator designed for high-performance feeding, expanded sheet handling, and seamless integration into bookletmaking systems like the StitchLiner Mark III and SPF-200L. With individual blower controls, enhanced suction rotor feeding, and the ability to handle sheets up to 24" in length, the VAC-L600H ensures efficient, accurate collation for today’s advanced digital and offset environments.

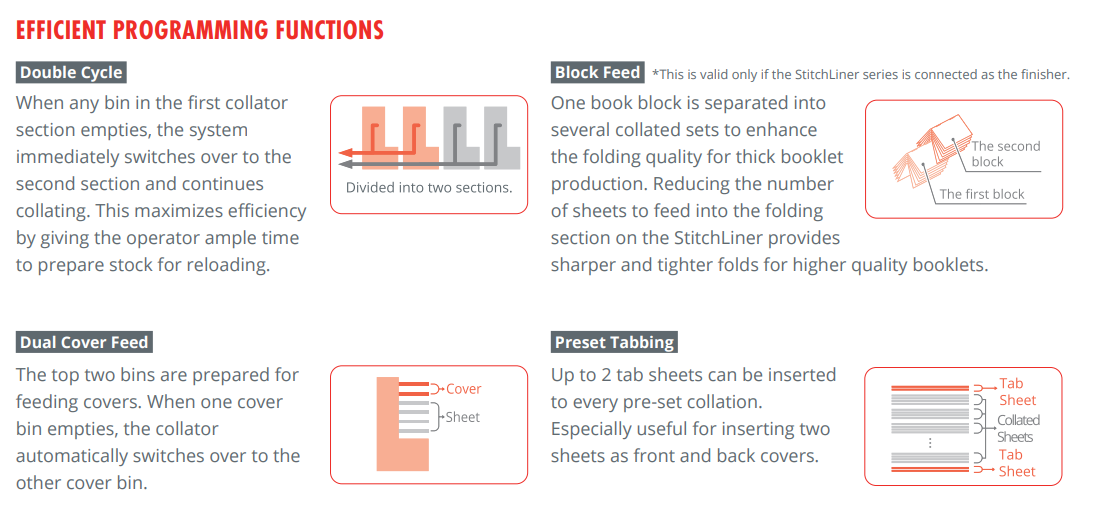

Key Features
🔷 Expanded Sheet Capacity – Accepts sheets up to 13.77” x 24.01”, ideal for A4 landscape booklet production.

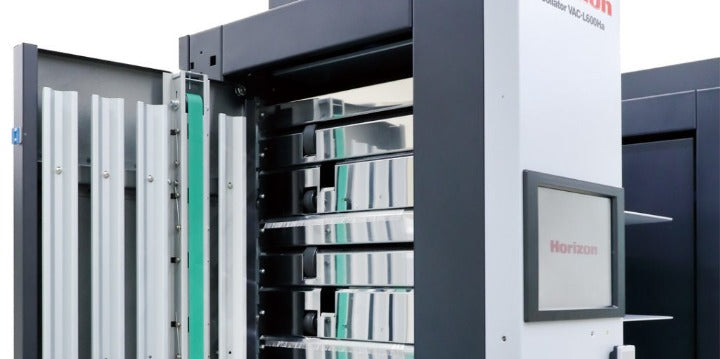

🔷 Advanced Air-Suction Feed System – Individual DC blower fans per bin offer precise air control by paper type and size.

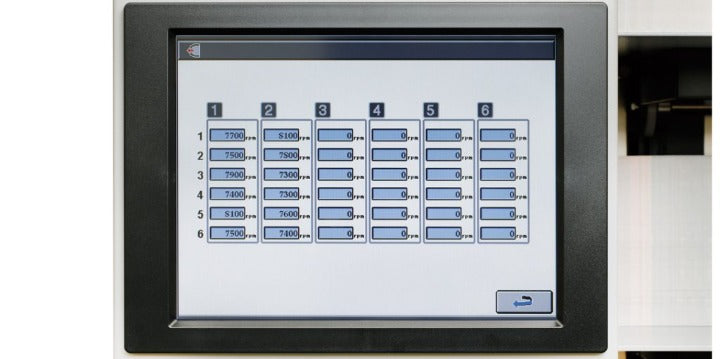

🔷 Accurate Overlap Control – Sheet overlap can be adjusted via touchscreen for precise alignment in downstream finishing.

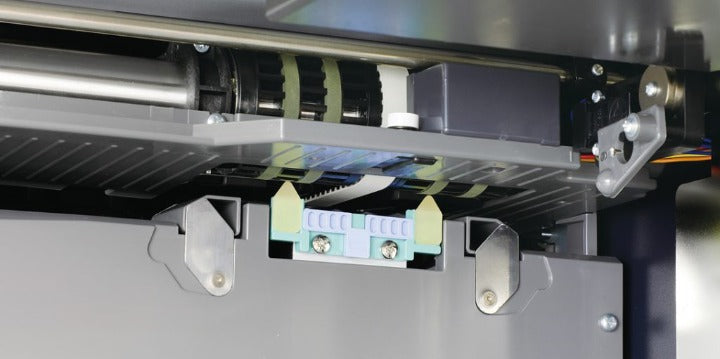

🔷 Enhanced Sheet Control – New airflow design and suction rotor ensure smooth, reliable feeding of various stocks.
🔷 Power Efficient Design – Consumes only 1.6 kW, a 30% reduction from the previous model, with auto power-saving mode.
🔷 Flexible Media Handling – Supports coated, uncoated, and folded signatures with overlapping, speed, and airflow control.
🔷 Modular Tower Configuration – Available in VAC-L600Ha, L600Hm, or L600Hc models depending on integration needs.
🔷 Optional Side Blower (ESB-L600) – Adds additional air control for large or heavy substrates.
Specifications

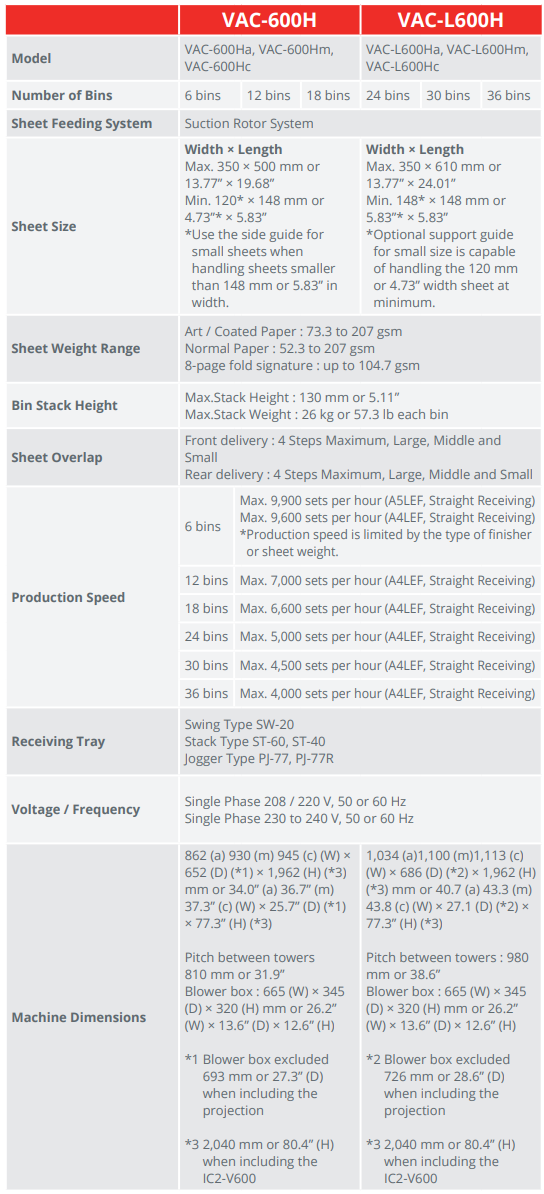

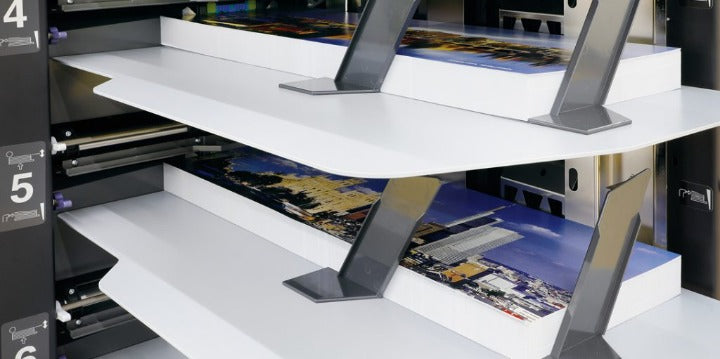

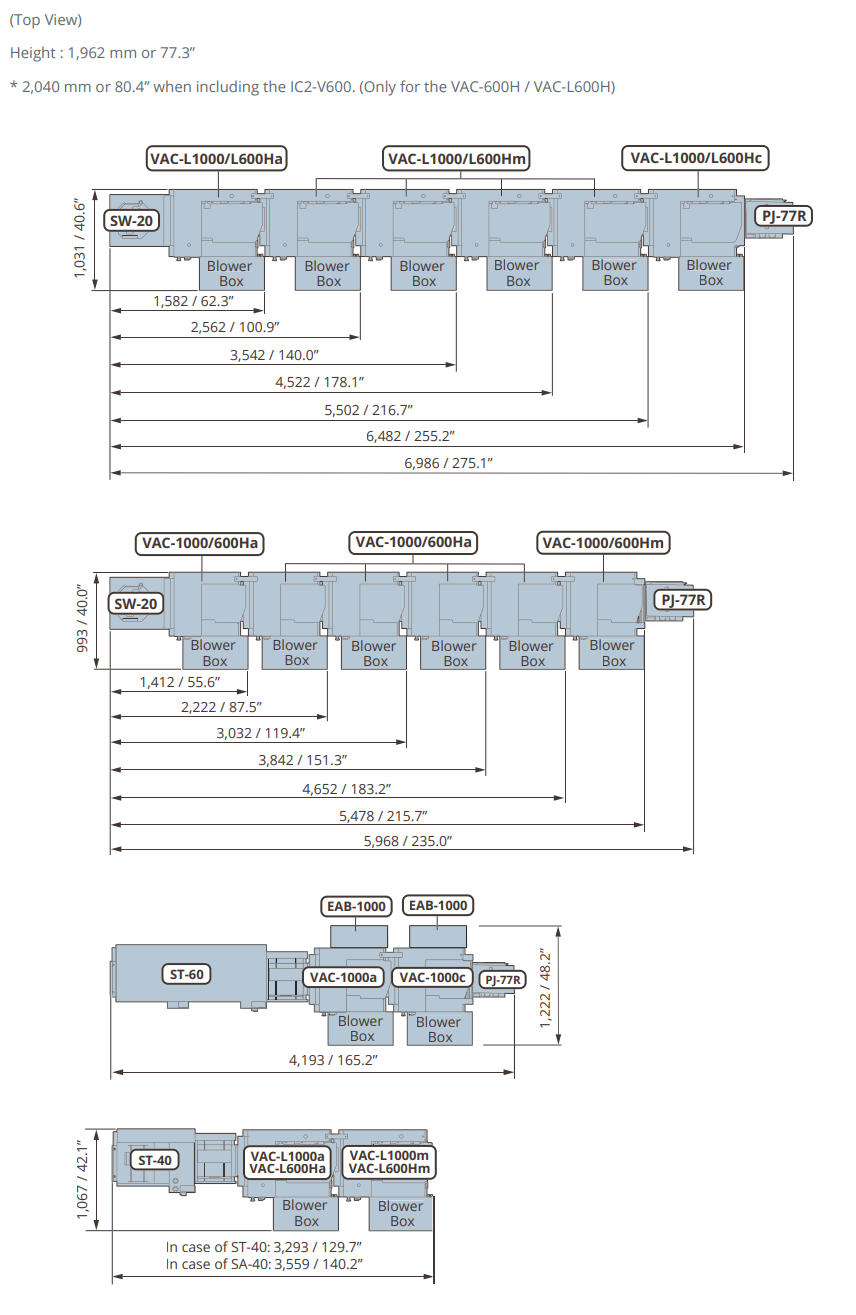

| Specification | Details |
|---|---|
| Number of Bins | 6 bins per tower |
| Feeding System | Suction Rotor |
| Max Sheet Size | 350 x 610 mm (13.77” x 24.01”) |
| Min Sheet Size | 148 x 148 mm (5.83” x 5.83”) |
| With option: 120 mm (4.73") width | |
| Supported Paper Weights | Normal: 52.3 – 207 gsm |
| Coated: 73.3 – 207 gsm | |
| 8-page folded signatures: up to 104.7 gsm | |
| Bin Stack Height | Max 130 mm (5.11”) |
| Production Speed | Up to 9,900 sets/hour (A5LEF, straight) |
| Sheet Overlap Settings | 4-step adjustment |
| Voltage | Single Phase, 200–240V, 50/60 Hz |
| Power Consumption | 1.6 kW |
| Dimensions (WxDxH) | ~39.9”–43.8” W x 27.1” D x 77.3” H |
| (excluding blower box) |
Applications
📚 A4 Landscape Booklet Production – Optimized for landscape-format bookletmaking workflows.
📑 Digital & Offset Collation – Feeds coated and uncoated sheets for multi-source print environments.
🖨 Book Block Assembly – Pre-collates stacks for perfect binding or saddle stitching.
📦 Finishing Line Integration – Designed for inline use with Horizon finishing systems.
Available Options
📍 ESB-L600 Extra Side Blower – Enhances airflow for wide or heavy sheets.
📍 Optional Support Guide – Enables handling of smaller sheets (down to 120 mm width).
📍 Multi-Tower Setup – Combine towers for increased bin capacity and longer unattended runs.
Benefits
✅ Reduces misfeeds and downtime with individual air control and smooth rotor feeding.
✅ Improves energy efficiency with a 30% lower power draw and standby mode.
✅ Supports a wide range of stocks with flexible adjustment settings.
✅ Easily integrates into advanced finishing lines for fully automated booklet production.
✅ Compact and modular for custom-tailored production configurations.
