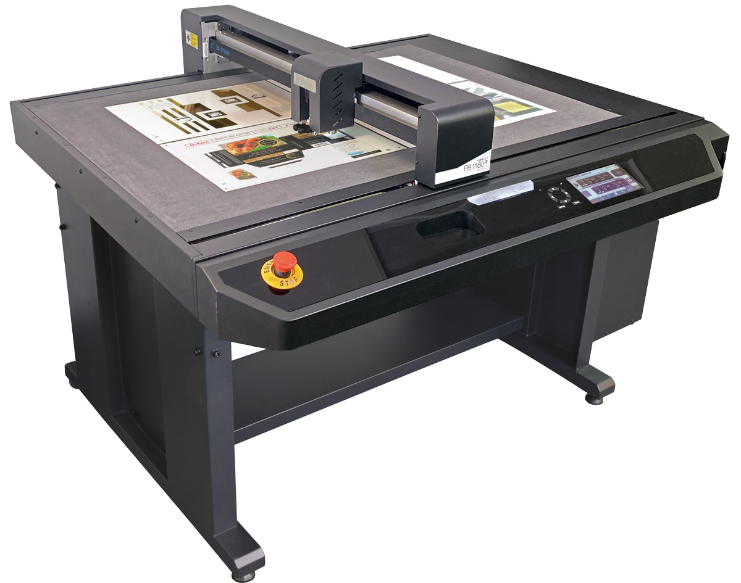

Intec ColorCut FB1190‑T — B1+ Tangential Digital Flatbed Cutter/Creaser
Production‑ready quad‑tool head with active tangential control, Vision‑assisted registration, and a powerful vacuum bed for precise cut‑and‑crease on paper, card, synthetics, and up to ~3 mm fluted board.
Overview
FB1190‑T is built for light‑to‑medium production and prototyping. The combination of an actively‑driven tangential tool pair, passive contour positions, Vision3 CCD registration, and an 1100 W vacuum bed delivers clean creases and accurate cuts—job after job. Batch workflows and QR‑driven job recall keep operators moving without hunting for files.
Highlights
- Quad tool head: two passive contour positions + two active tangential positions
- Up to 1,200Â mm/s cutting with HD/Standard/Fast modes
- Tool force up to 2,500Â gf for deep, precise cuts
- Vision3 CCD with ARMS — SmartMark & QR job recognition
- Reverse‑side scanning for crease‑then‑cut or specialized stacks
- 1100 W vacuum hold‑down with acoustic housing & auto shut‑off
- Standalone “NO WIRES” USB job loading and on‑table job library
- Batch productivity — place multiple sheets and process mixed jobs
Materials & Typical Uses
- Folding box boards (FBB/SBS/SBB)
- Paper & lightweight card
- Sheet labels (kiss‑cut)
- Synthetics & magnetic media
- N/F/E fluted & mount boards (to ~3Â mm)
- Sample packaging & short‑run cartons
- Retail/POS displays and prototypes
- On‑demand dieless finishing
- Short‑run labels and sticker sheets
Specifications
| Format / Bed Class | B1 / B1+ |
| Maximum media area | 800 Ă— 1100Â mm |
| Effective contour cutting area | up to ~680 Ă— 1020Â mm |
| Max cutting speed | HD: 750Â mm/s; Standard: 960Â mm/s; Fast: up to 1,200Â mm/s |
| Tool force | Up to 2,500Â gf (per active tangential position) |
| Cutting depth | Passive blade: paper/card typically to ~800 µm (up to ~1000 µm on suitable media); Tangential: fluted/corrugated to ~3 mm |
| Registration | Vision3 CCD, ARMS, SmartMark & QR job recognition; reverse‑side scanning |
| Media hold‑down | 1100 W vacuum with acoustic housing & silencer |
| Workflow | USB “NO WIRES” job loading; on‑table job library; batch/multi‑sheet processing |
| Dimensions (machine) | Approx. 1360 mm (L) × 1350 mm (W) × 1098 mm (H) — excludes external fan housing |
| Weight | ~109Â kg (unpacked, incl. stand) |
| Power | Varies by region — confirm voltage prior to order |
Performance depends on application, media, environment, and print engine.
Included Tools
- Passive contour/drag knife holder + blade set
- Active tangential blade holder + 45° blades
- Active tangential creasing wheel tool (two wheel types)
- Passive ball creasing tools (wide & narrow)
- Cutter mats (green self‑healing, grey felt)
- Vacuum system with acoustic housing & silencer
- Integrated stand & touch‑screen control
Options
- Additional creasing wheels (narrow/medium/wide)
- Tangential perforating wheel
- Extended blade packs (45°/60°; circlip blades for dense stocks)
- ColorCut Pro Server Station (Production Studio, Template Maker, Job Library Manager)
Software & Workflow
ColorCut Pro (Illustrator & CorelDRAW plug‑ins plus production suite) enables direct cut‑file creation with SmartMarks and QR codes. Jobs can be recalled at the table by QR, adjusted on the fly, and run without reopening design files. “Held Mode” stores parameters for repeat work and standalone use.
Frequently asked questions
What sheet format does the FB1190-T handle?
It is a B1 / B1+ class flatbed, built for light to medium production runs and for prototyping.
What materials can it cut and crease?
Folding box board (FBB, SBS, SBB), paper and lightweight card, kiss-cut sheet labels, synthetics and magnetic media, and fluted mount board to about 3 mm.
How fast does it cut?
Up to 1,200 mm/s, with HD, standard and fast modes, and tool force up to 2,500 gf.
How does it register printed sheets?
Vision3 CCD registration with ARMS and SmartMark QR job recognition, including reverse-side scanning for crease-then-cut work.
Does Mid-State Litho install and service it?
Yes. MSL is an authorized Intec dealer with factory-trained technicians covering Michigan and the Great Lakes region.
About the Intec ColorCut line
Intec builds the ColorCut digital finishing range: the FB flatbed cutter and creaser series, and the SC roll-fed series. The FB1190-T is the large-format B1+ flatbed in that range. It sits above the FB790T and below the FB9500 Pro T, which is the wider flagship flatbed.
All of them run the same ColorCut Pro workflow, so a shop moving up the range keeps its cut files, templates and operator habits.
How to choose an Intec ColorCut model
Three things separate the models. Start with sheet size, then decide flatbed or roll, then look at tooling.
Format and size. The FB580 at $7,499 and the FB790T at $12,999 cover smaller sheets. The FB1190-T at $18,499 is the B1+ large-format flatbed. The FB9500 Pro T at $27,999 handles the widest flatbed work.
Flatbed or roll. The FB series is sheet work on a flatbed. The SC series adds roll feeding and automated sheet handling: the SC6500 at $13,299, the SC7100 Pro T at $16,999, the SC7100T XL at $18,999, and the SC7800 RS XL Pro T at $22,499.
Tooling and registration. The FB1190-T runs a quad tool head with active tangential control and Vision3 registration, so it cuts, creases and perforates in one pass. Adding the ColorCut Pro Server Station at $2,799 moves template building and job library management off the operator station.
The full range is on the die cutters page.
Why buy from Mid-State Litho
We are an authorized Intec dealer with factory-trained technicians, and we cover Michigan and the Great Lakes region for service.
Before you buy, we will run samples on your own stock so you can see how the machine handles your board and your crease depths. After you buy, we handle installation and operator training. Financing is available on this machine. To arrange a demo or a quote, contact us.
